F653RM-GMDFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 1NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )1NRVE,2NRVE

Click highlighted areas on diagram

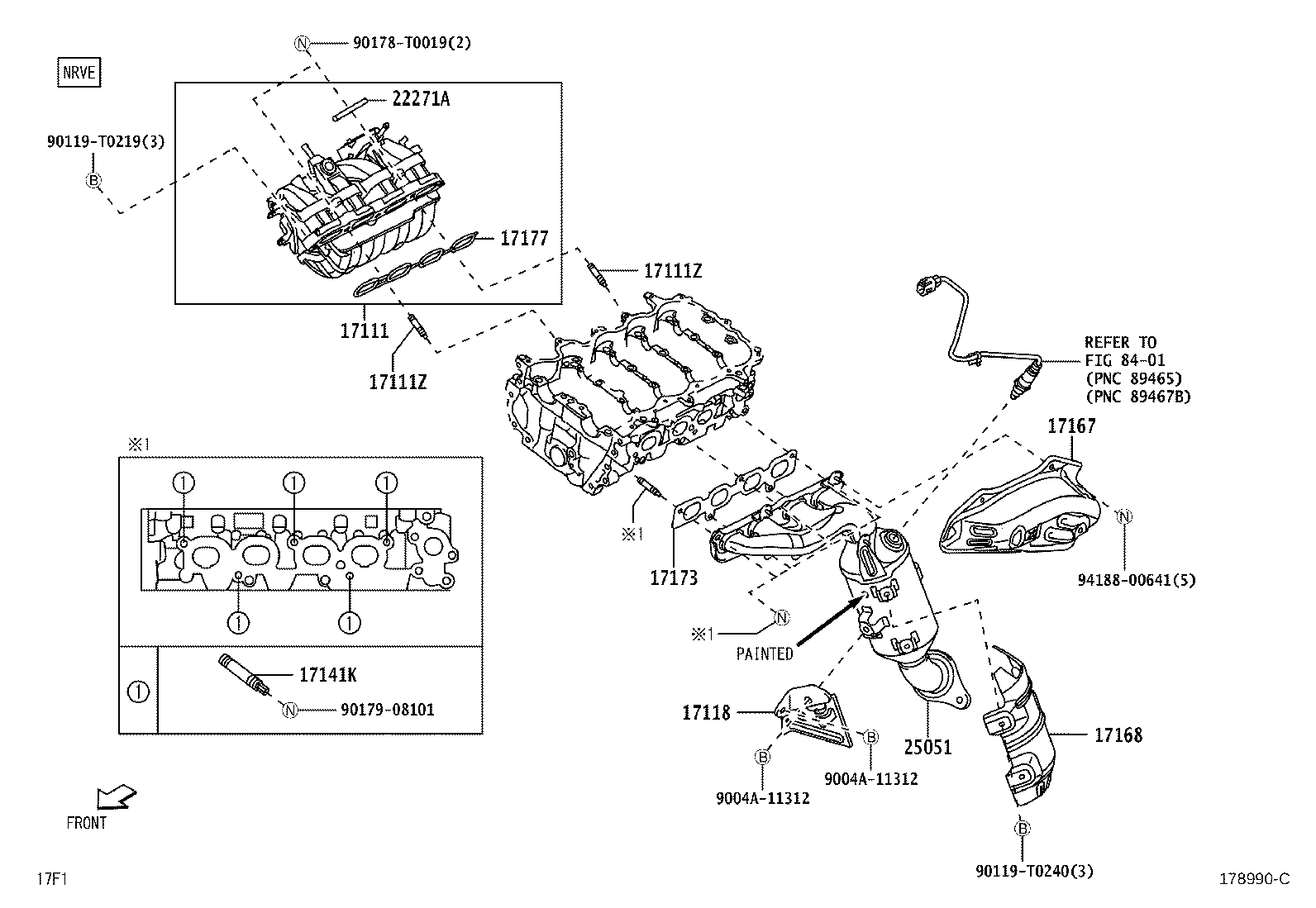

diagram 17111 17111Z 17111Z 17118 17141K 17167 17168 17173 17177 22271A 25051 8401 9004A11312 9004A11312 90119T0219 90119T0240 90178T0019 9017908101 9418800641
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-BZ100

1NRVE,2NRVE..F65#

 1
17120-BZ100

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
9004A-12001

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 2
9004A-12001

1NRVE,2NRVE..F65#

 2
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
9004A-12001

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 2
9004A-12001

1NRVE,2NRVE..F65#

 2
17118 - STAY, MANIFOLD
17118-BZ130

1NRVE,2NRVE..F65#

 1
17118-BZ130

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08063

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 5
90126-08063

1NRVE,2NRVE..F65#

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-BZ070

1NRVE,2NRVE..F65#

 1
17167-BZ070

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-BZ020

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
17168-BZ020

1NRVE,2NRVE..F65#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-BZ070

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
17173-BZ070

1NRVE,2NRVE..F65#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-BZ030

1NRVE,2NRVE..F65#

 1
17177-BZ030

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
22271A - GASKET, THROTTLE BODY
22271-0Y030

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
22271-0Y030

1NRVE,2NRVE..F65#

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-BZ110

1NRVE,2NRVE..F65#..IDN

PAINTED=YELLOW

 1
25051-BZ010

1NRVE,2NRVE..F653,654..IDN

PAINTED=PINK

 1
25051-BZ110

1NRVE,2NRVE..F65#..GCC,IDN,MXC,PHL,TH

PAINTED=YELLOW

 1
Common parts
9004A-11312
90119-T0219
90119-T0240
90178-T0019
90179-08101
94188-00641
Linked diagrams
8401
