F653LM-GQMF (2015)
Toyota Avanza
Production
Aug 2015
-
Sep 9999
Engine
1NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1508- )LHD

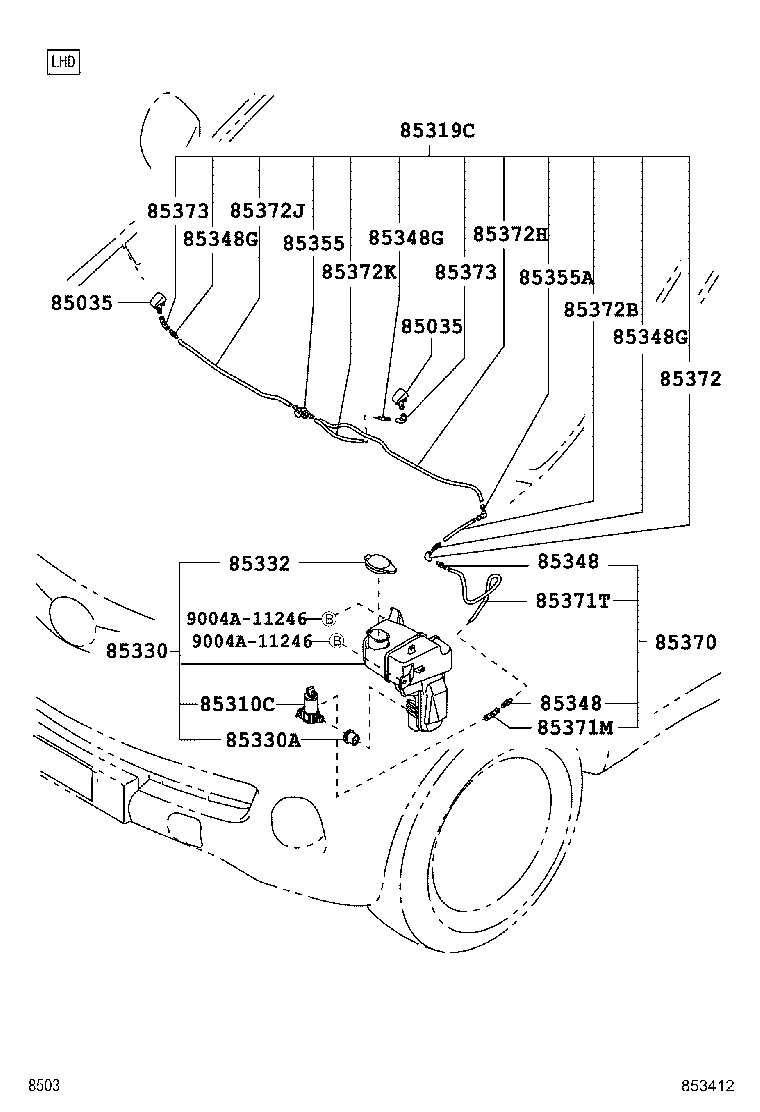

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-BZ220 |
F65# |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-BZ220 |
F65# |
2 | ||
| 85310C - MOTOR & PUMP ASSY, WASHER | ||||
| 85330-BZ180 |
F653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA) |
1 | ||
| 85330-BZ180 |
F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 85319C - HOSE, WASHER | ||||
| 85370-BZA00 |
F65#..LHD |
1 | ||
| 85370-BZA00 |
F65#..LHD |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-BZ160 |
F65# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90044-80454 |
F65# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-97202 |
F65# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85317-BZ080 |
F65# |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85317-BZ080 |
F65# |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-BZ080 |
F65#..LHD |
3 | ||
| 85317-BZ080 |
F65#..LHD |
3 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-BZ080 |
F65#..LHD |
3 | ||
| 85317-BZ080 |
F65#..LHD |
3 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-BZ080 |
F65#..LHD |
3 | ||
| 85317-BZ080 |
F65#..LHD |
3 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85376-B1010 |
F65# |
1 | ||
| 85355A - JOINT, WINDSHIELD WASHER ELBOW | ||||
| 85376-BZ020 |
F65#..LHD |
1 | ||
| 85376-BZ020 |
F65#..LHD |
1 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-BZ890 |
F65# |
1 | ||
| 85371M - HOSE, WINDSHIELD WASHER (FROM JOINT TO TANK) | ||||
| 85355-87701 |
F65# |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 85374-BZ880 |
F65# *H,L=470 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85355-87701 |
F65# |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85374-BZA90 |
F65#..LHD *H,L=110 |
1 | ||
| 85374-BZA90 |
F65#..LHD *H,L=110 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 85374-BZA80 |
F65#..LHD *H,L=90 |
1 | ||
| 85374-BZA80 |
F65#..LHD *H,L=90 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 85374-BZA20 |
F65#..LHD *H,L=330 |
1 | ||
| 85374-BZA20 |
F65#..LHD *H,L=330 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 85374-BZA10 |
F65#..LHD *H,L=160 |
1 | ||
| 85374-BZA10 |
F65#..LHD *H,L=160 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 85355-87701 |
F65#..LHD |
2 | ||
| 85355-87701 |
F65#..LHD |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 85355-87701 |
F65#..LHD |
2 | ||
| 85355-87701 |
F65#..LHD |
2 | ||
| Common parts | ||||
| 9004A-11246 | ||||
