F653LM-GQMF (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 1NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )MXC ; (1508- )F654..STD..GEN,SA ;(1508- )F653..LO,MID,STD..GEN,SA

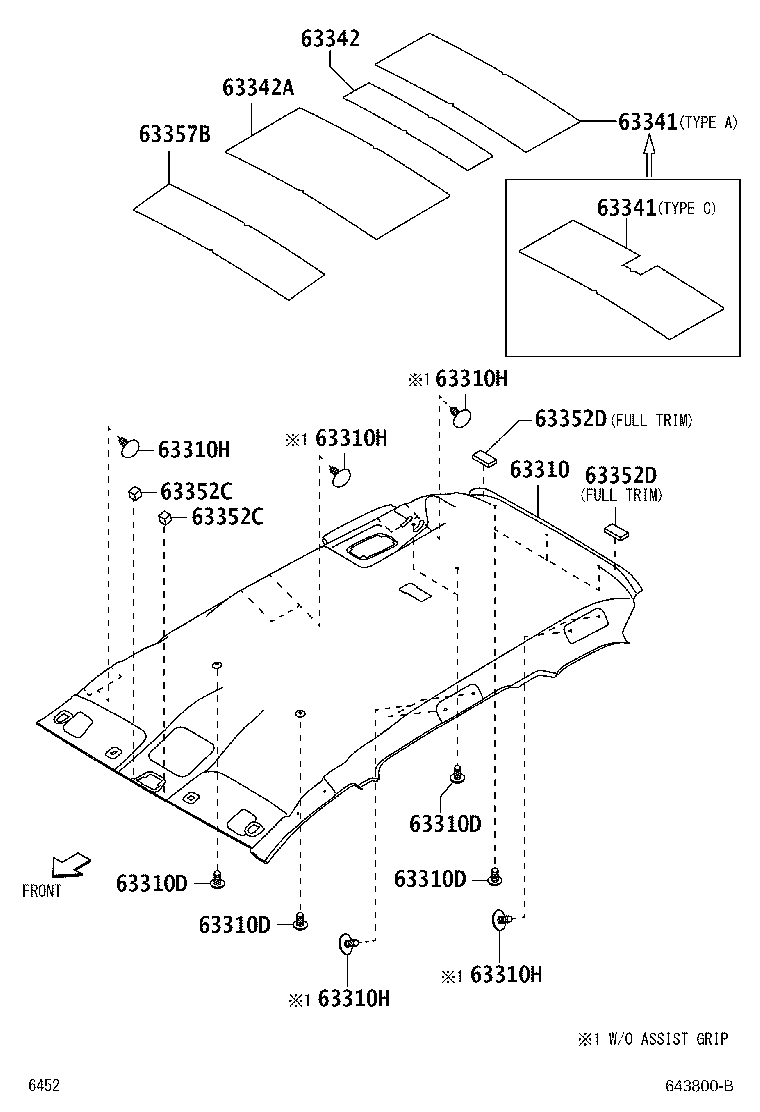

Click highlighted areas on diagram

L/AC,W/3PT BELT

diagram 63310 63310D 63310D 63310D 63310D 63310H 63310H 63310H 63310H 63310H 63341 63341 63342 63342A 63352C 63352C 63352D 63352D 63357B
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-BZ850B0

F653..MID..GEN

LT.GRAY,TRIM4#

 1
63310-BZ850B0

F653..MID..GEN

LT.GRAY,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
9004A-46358B0

F65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)

LT.GRAY,TRIM4#

 7
9004A-46358B0

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 7
9004A-46358B1

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 7
63310D - CLIP, ROOF HEADLINING
9004A-46358B0

F65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)

LT.GRAY,TRIM4#

 7
9004A-46358B0

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 7
9004A-46358B1

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 7
63310D - CLIP, ROOF HEADLINING
9004A-46358B0

F65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)

LT.GRAY,TRIM4#

 7
9004A-46358B0

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 7
9004A-46358B1

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 7
63310D - CLIP, ROOF HEADLINING
9004A-46358B0

F65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)

LT.GRAY,TRIM4#

 7
9004A-46358B0

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 7
9004A-46358B1

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 7
63310H - CLIP(FOR ROOF HEADLINING)
9004A-46357B0

F65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)

LT.GRAY,TRIM4#

 4
9004A-46357B0

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 4
63310H - CLIP(FOR ROOF HEADLINING)
9004A-46357B0

F65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)

LT.GRAY,TRIM4#

 4
9004A-46357B0

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 4
63310H - CLIP(FOR ROOF HEADLINING)
9004A-46357B0

F65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)

LT.GRAY,TRIM4#

 4
9004A-46357B0

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 4
63310H - CLIP(FOR ROOF HEADLINING)
9004A-46357B0

F65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)

LT.GRAY,TRIM4#

 4
9004A-46357B0

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 4
63310H - CLIP(FOR ROOF HEADLINING)
9004A-46357B0

F65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)

LT.GRAY,TRIM4#

 4
9004A-46357B0

F65#..MID..GEN;F65#..(MID,STD)..(GCC,IDN)

LT.GRAY,TRIM4#

 4
63341 - PAD, ROOF SILENCER, NO.1
63342-BZ250

F65#..(LO,MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH)

TYPE C

 1
63341 - PAD, ROOF SILENCER, NO.1
63342-BZ250

F65#..(LO,MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH)

TYPE C

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-BZ130

F65#..(LO,MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH)

 1
63342A - SILENCER, ROOF, NO.2
63342-BZ071

F65#..(LO,MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH)

 1
63342-BZ071

F65#..(LO,MID,SPO,STD)..(GEN,MA,MXC,PHL,SA,TH)

 1
63352C - PAD, ROOF HEADLINING, END
63352-BZ010

F653..GEN,SA;F654..GEN,MXC,PHL,SA;F654..(MID,SPO)..(GCC,MA)

 2
63352-BZ010

F653..GEN,SA;F654..MID..GCC;F654..GEN,MXC,PHL,SA

 2
63352C - PAD, ROOF HEADLINING, END
63352-BZ010

F653..GEN,SA;F654..GEN,MXC,PHL,SA;F654..(MID,SPO)..(GCC,MA)

 2
63352-BZ010

F653..GEN,SA;F654..MID..GCC;F654..GEN,MXC,PHL,SA

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-BZ040

F653..STD..PHL;F653..MID..GEN;F654..4AT..STD..TH;F653..(LO,MID,SPO,STD)..(IDN,SA);F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-BZ040

F653..STD..PHL;F653..MID..GEN;F654..4AT..STD..TH;F653..(LO,MID,SPO,STD)..(IDN,SA);F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 2
63357B - SILENCER, ROOF
63357-BZ040

F65#..GEN,IDN,MA,MXC,PHL,SA,TH

 1
