F651RM-GMDFM (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1508)STD..PHL ; (1111-1508)F651..GEN,IDN,MA,SA ; (1111-1508)F652..MID,STD..GC

Click highlighted areas on diagram

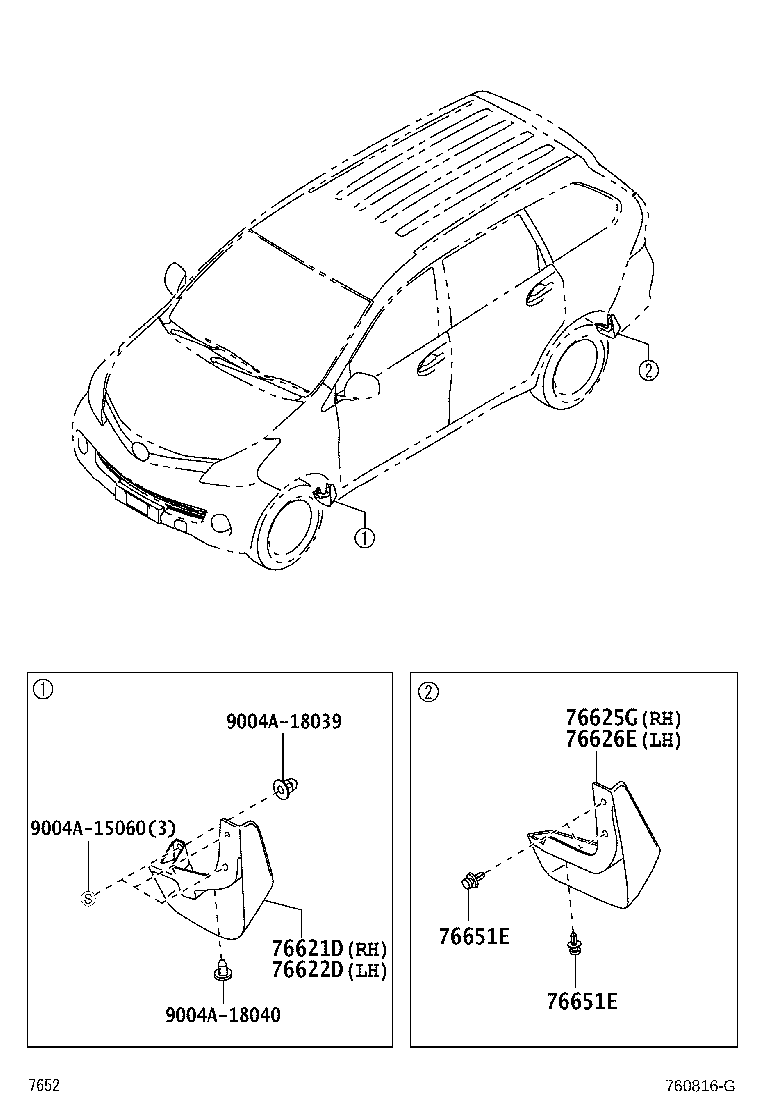

MUDGUARD

diagram 76621D 76622D 76625G 76626E 76651E 76651E 9004A15060 9004A18039 9004A18040
Part # Description Qty Price
76621D - MUDGUARD, FRONT FENDER, RH
76621-BZ090

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 1
76621-BZ090

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 1
76622D - MUDGUARD, FRONT FENDER, LH
76622-BZ070

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 1
76622-BZ070

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 1
76625G - MUDGUARD, QUARTER PANEL, REAR RH
76625-BZ050

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 1
76625-BZ050

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 1
76626E - MUDGUARD, QUARTER PANEL, REAR LH
76626-BZ050

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 1
76626-BZ050

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 1
76651E - CLIP (FOR REAR MUDGUARD)
90044-68320

F651..LO..GEN;F65#..(MID,STD)..(GEN,IDN,MA,PHL,SA,TH)

 6
90044-68320

F651..LO..GEN;F65#..(MID,STD)..(GEN,IDN,MA,PHL,SA,TH)

 6
9004A-46323

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 6
9004A-46323

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 6
76651E - CLIP (FOR REAR MUDGUARD)
90044-68320

F651..LO..GEN;F65#..(MID,STD)..(GEN,IDN,MA,PHL,SA,TH)

 6
90044-68320

F651..LO..GEN;F65#..(MID,STD)..(GEN,IDN,MA,PHL,SA,TH)

 6
9004A-46323

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 6
9004A-46323

F651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)

 6
Common parts
9004A-15060
9004A-18039
9004A-18040

(1111-1508)F651..MA ; (1111-1508)F651..MID..IDN; (1111-1508)MID,SPO..SA,TH ; (1111

Click highlighted areas on diagram

SPOILER

diagram 76094BZ050 76871 8117 9004A11206
Part # Description Qty Price
76871 - SPOILER, REAR
76871-BZ170

F651..MA;F652..GCC,GEN,MA,PHL;F652..(MID,SPO)..(SA,TH)

 1
76871-BZ170

F651..MA;F652..GCC,GEN,MA,PHL;F652..(MID,SPO)..(SA,TH)

 1
76871-BZ170

F651..MA;F652..GCC,GEN,MA,PHL;F652..(MID,SPO)..(SA,TH)

 1
76871-BZ170

F651..MA;F652..GCC,GEN,MA,PHL;F652..(MID,SPO)..(SA,TH)

 1
Common parts
76094-BZ050
9004A-11206
Linked diagrams
8117
