F651RM-GMDFM (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1507)F651..5F..IDN ; (1111-1508)F651..MA,SA

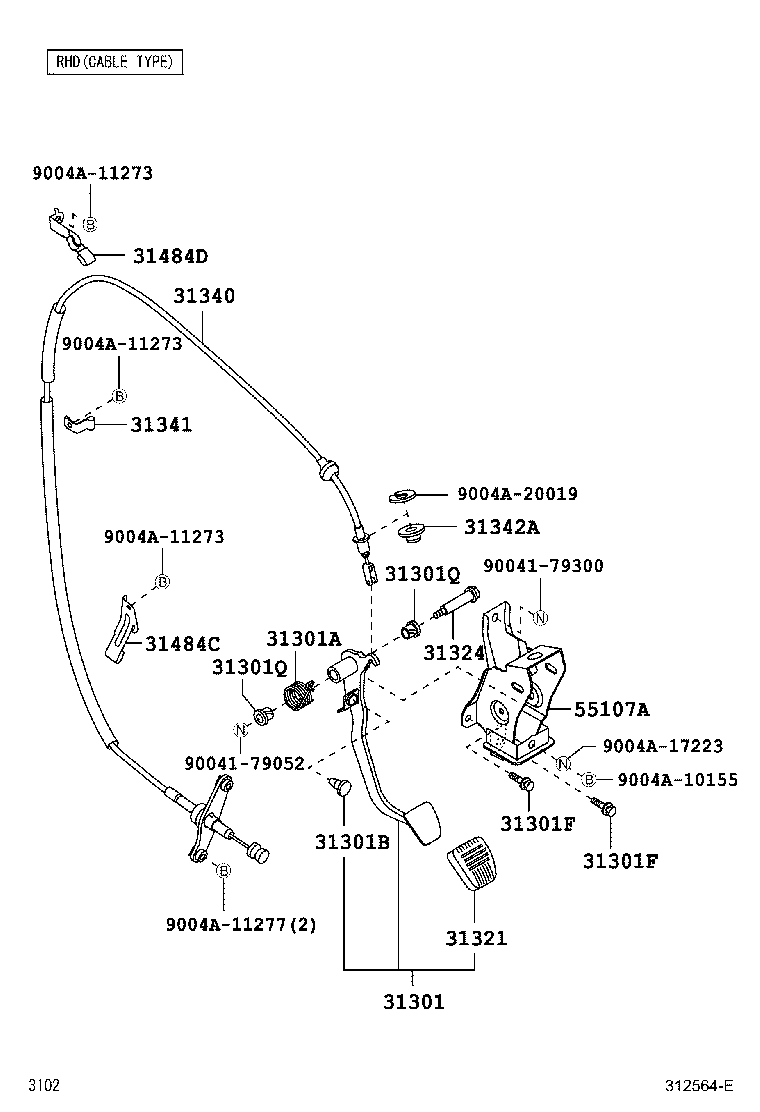

Click highlighted areas on diagram

RHD CABLE TYPE

diagram 31301 31301A 31301B 31301F 31301F 31301Q 31301Q 31321 31324 31340 31341 31342A 31484C 31484D 55107A 9004179052 9004179300 9004A10155 9004A11273 9004A11273 9004A11273 9004A11277 9004A17223 9004A20019
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-BZ140

F651..MA,SA

 1
31301A - SPRING(FOR CLUTCH PEDAL)
31394-BZ010

F651..MA,SA

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
9004A-54003

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
9004A-11219

F651,652..5F..(MA,SA,TH)

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
9004A-11219

F651,652..5F..(MA,SA,TH)

 2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
9004A-38021

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
9004A-38021

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 2
31321 - PAD, CLUTCH PEDAL
31321-BZ010

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
31324 - SHAFT, CLUTCH PEDAL
31324-B0010

F651..MA,SA

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-BZ130

F651..MA,SA

 1
31341 - BRACKET, CLUTCH CABLE
31341-BZ020

F651..MA,SA

 1
31342A - BUSH(FOR CLUTCH RELEASE CABLE)
9004A-38070

F651..5F..(GEN,MA,PHL,SA)

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31341-BZ090

F651..MA,SA

 1
31484D - BRACKET, CLUTCH TUBE, NO.2
31341-BZ010

F651..MA,SA

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-BZ100

F651..MA,SA

 1
Common parts
90041-79052
90041-79300
9004A-10155
9004A-11273
9004A-11277
9004A-17223
9004A-20019
