F602RM-GQMFJT (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

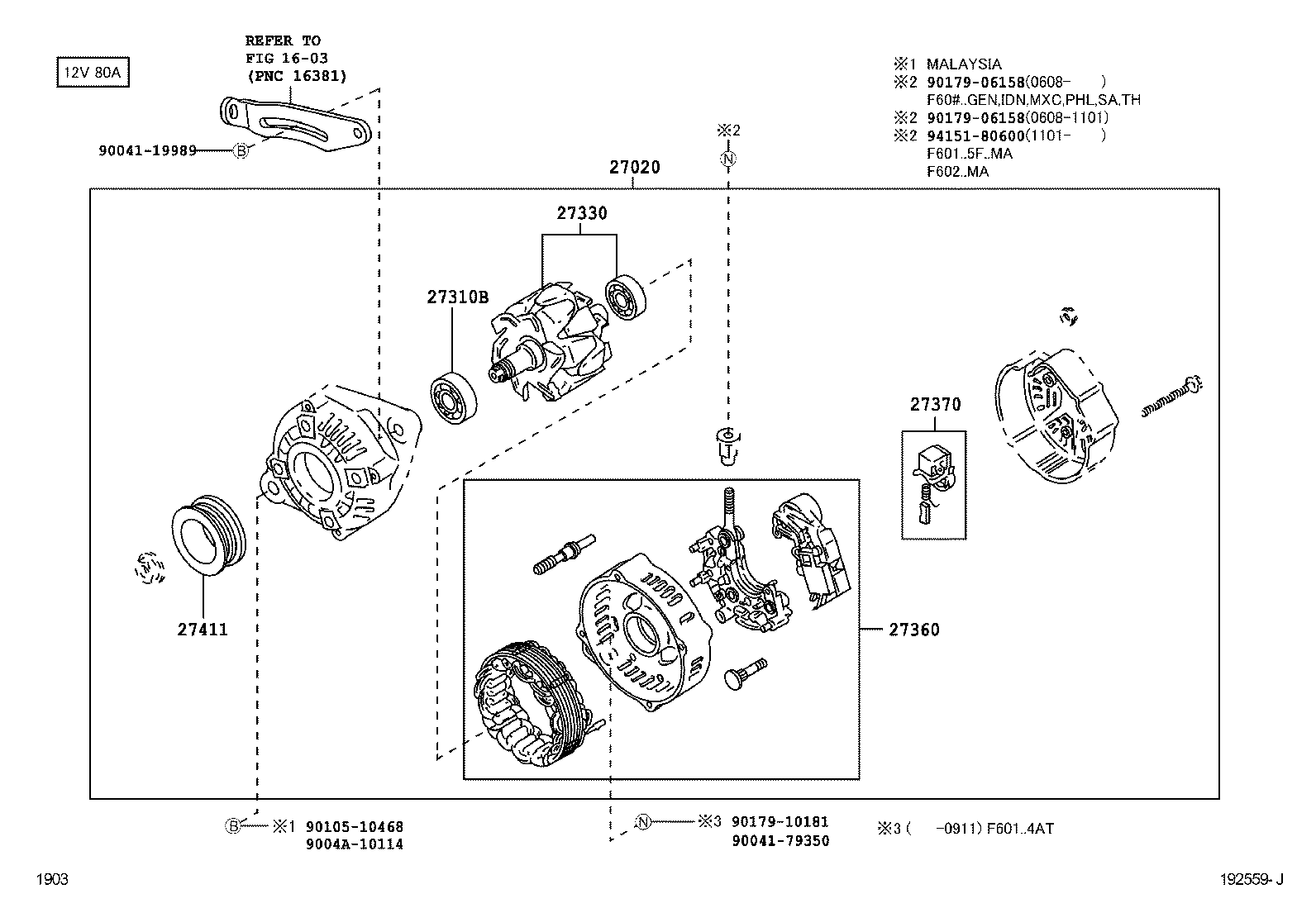

Click highlighted areas on diagram

12V 80A

diagram 1603 27020 27310B 27330 27360 27370 27411 9004119989 9004179350 9004A10114 9010510468 9017906158 9017906158 9017910181 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-BZ110

3SZVE..F602..GEN,IDN,MXC,PHL,SA,TH

12V 80A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
27791-87703

K3VE..F601..5F..MA;3SZVE..F602..5F..G..GEN;K3VE..F601..GEN,IDN,PHL,SA;3SZVE..F602..IDN,MA,MXC,PHL;3SZVE..F602..4AT..(G,S)..(GEN,TH)

 1
9004C-37002

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
27791-87703

3SZVE..F602..5F..S..GEN;3SZVE..F602..(DLX,E,GL,J)..(SA,TH)

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-BZ030

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

 1
27360 - COIL ASSY, ALTERNATOR
27360-BZ010

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-BZ020

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

 1
27411 - PULLEY, ALTERNATOR
27411-BZ030

3SZVE..F602..GEN,IDN,MXC,PHL,SA,TH

 1
Common parts
90041-19989
90041-79350
9004A-10114
90105-10468
90179-06158
90179-10181
94151-80600
Linked diagrams
1603
