F602RM-GMSFJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )GEN,IDN,MXC,PHL,SA,TH

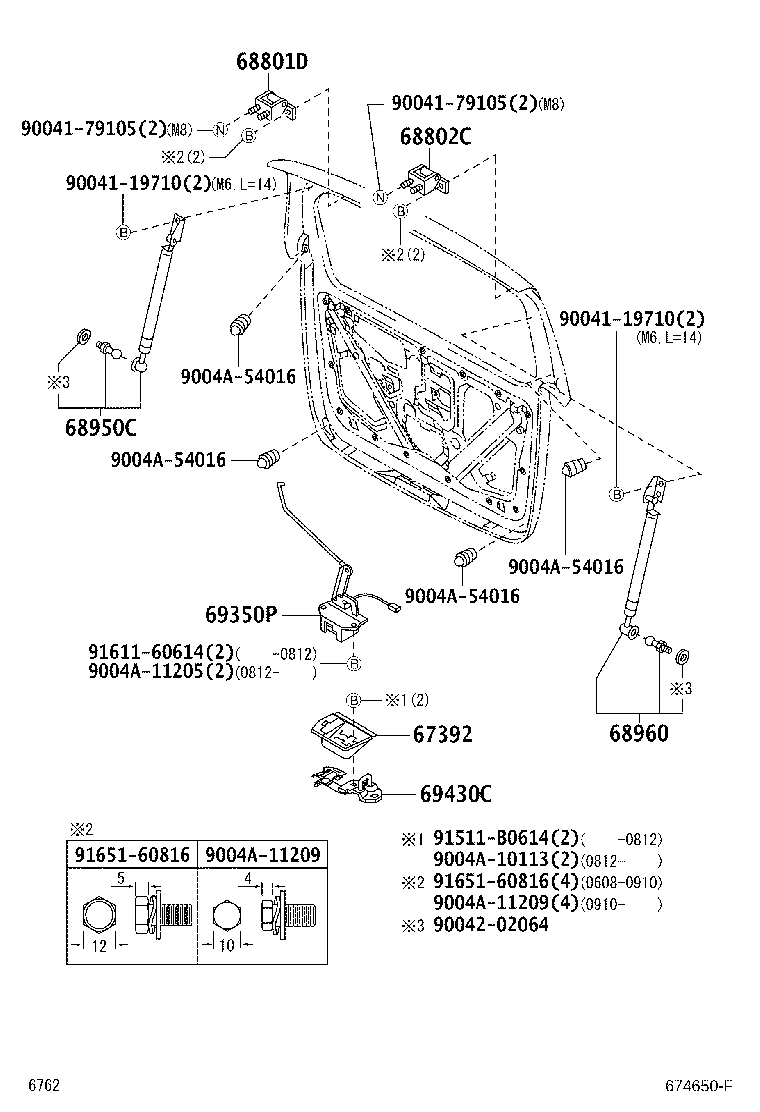

Click highlighted areas on diagram

diagram 67392 68801D 68802C 68950C 68960 69350P 69430C 9004119710 9004119710 9004179105 9004179105 9004202064 9004A10113 9004A11205 9004A11209 9004A11209 9004A54016 9004A54016 9004A54016 9004A54016 91511B0614 9161160614 9165160816 9165160816
Part # Description Qty Price
67392 - PROTECTOR, BACK DOOR LOCK
67392-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
67392-BZ011

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
68802C - HINGE SUB-ASSY, BACK DOOR, LH
68801-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-B9131

F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-B9131

F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-BZ140

F60#..GEN,IDN,MXC,PHL,SA,TH

 1
69350-B0010

F60#..GEN,IDN,MXC,PHL,SA,TH

 1
69350-BZ141

F60#..GEN,IDN,MXC,PHL,SA,TH

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-BZ060

F60#..GEN,IDN,MXC,PHL,SA,TH

 1
69430-B0010

F60#..GEN,IDN,MXC,PHL,SA,TH

 1
Common parts
90041-19710
90041-79105
90042-02064
9004A-10113
9004A-11205
9004A-11209
9004A-54016
91511-B0614
91611-60614
91651-60816
