F602RM-GMSFJ (2006)
Toyota Avanza
(0608- )

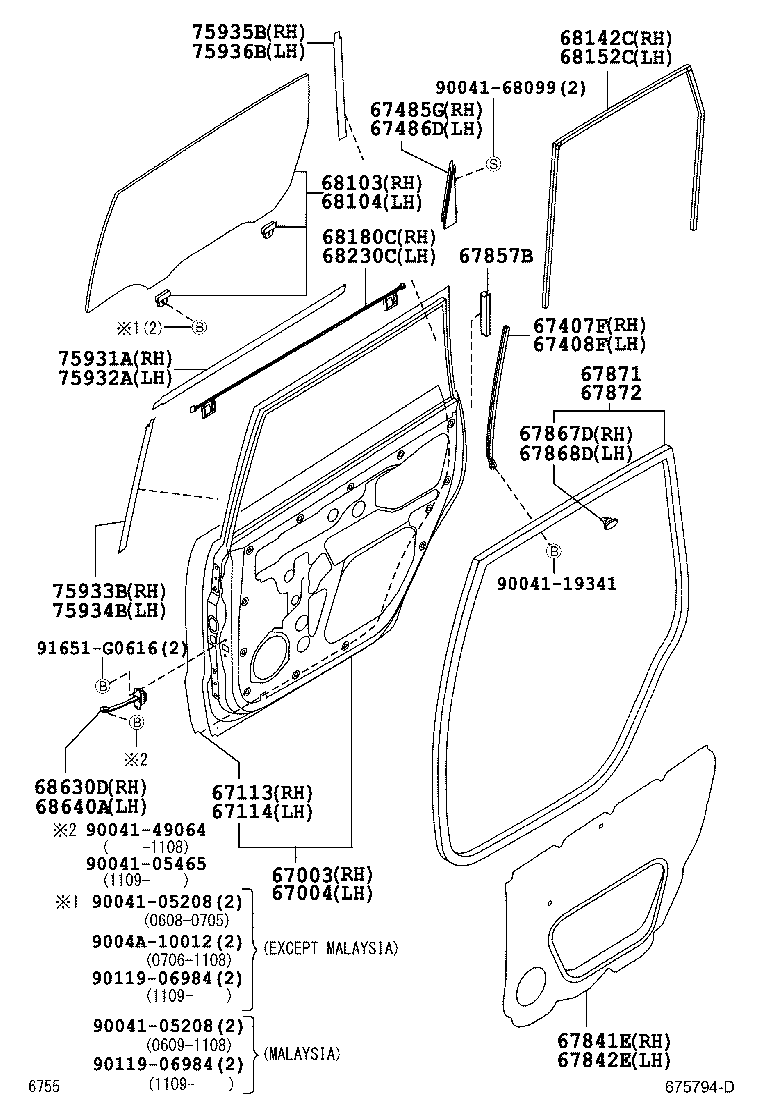

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-BZ010 |
F602..PHL;F601..5F..MA;F602..S..(GEN,IDN,MA);F601..(E,J,XI)..(IDN,PHL) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-BZ010 |
F602..PHL;F601..5F..MA;F602..S..(GEN,IDN,MA);F601..(E,J,XI)..(IDN,PHL) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-BZ010 |
F602..PHL;F601..5F..MA;F602..S..(GEN,IDN,MA);F601..(E,J,XI)..(IDN,PHL) |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-BZ010 |
F602..PHL;F601..5F..MA;F602..S..(GEN,IDN,MA);F601..(E,J,XI)..(IDN,PHL) |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 67485G - SEAL, REAR DOOR REAR LOWER FRAME, RH | ||||
| 67485-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 67486D - SEAL, REAR DOOR REAR LOWER FRAME, LH | ||||
| 67486-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-BZ030 |
F602..LHD..G;F602..E,GL,J,S;F601..RHD..5F..(GEN,IDN) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-BZ010 |
F601..RHD..(GEN,IDN);F602..(E,G,GL,J,S)..(GEN,IDN,MXC,PHL,SA,TH) |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-BZ010 |
F602..PHL;F601..GEN,PHL,SA;F602..(DLX,S)..(GEN,SA) |
1 | ||
| 68103-BZ040 |
F602..MXC,TH;F602..G..GEN;F601..4AT..IDN |
1 | ||
| 68103-BZ040 |
F602..PHL;F601..GEN,PHL,SA;F602..(DLX,S)..(GEN,SA) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-BZ010 |
F602..PHL;F601..GEN,PHL,SA;F602..(DLX,S)..(GEN,SA) |
1 | ||
| 68104-BZ040 |
F602..MXC,TH;F602..G..GEN;F601..4AT..IDN |
1 | ||
| 68104-BZ040 |
F602..PHL;F601..GEN,PHL,SA;F602..(DLX,S)..(GEN,SA) |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 75931A - TAPE, BLACK OUT, OUTER UPPER RH | ||||
| 75931-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 75932A - TAPE, BLACK OUT, OUTER UPPER LH | ||||
| 75932-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 75933B - TAPE, BLACK OUT, OUTER FRONT RH | ||||
| 75933-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 75934B - TAPE, BLACK OUT, OUTER FRONT LH | ||||
| 75934-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 75935B - TAPE, BLACK OUT, OUTER REAR RH | ||||
| 75935-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 75936B - TAPE, BLACK OUT, OUTER REAR LH | ||||
| 75936-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| Common parts | ||||
| 90041-05208 | ||||
| 90041-05465 | ||||
| 90041-19341 | ||||
| 90041-49064 | ||||
| 90041-68099 | ||||
| 9004A-10012 | ||||
| 90119-06984 | ||||
| 91651-G0616 | ||||

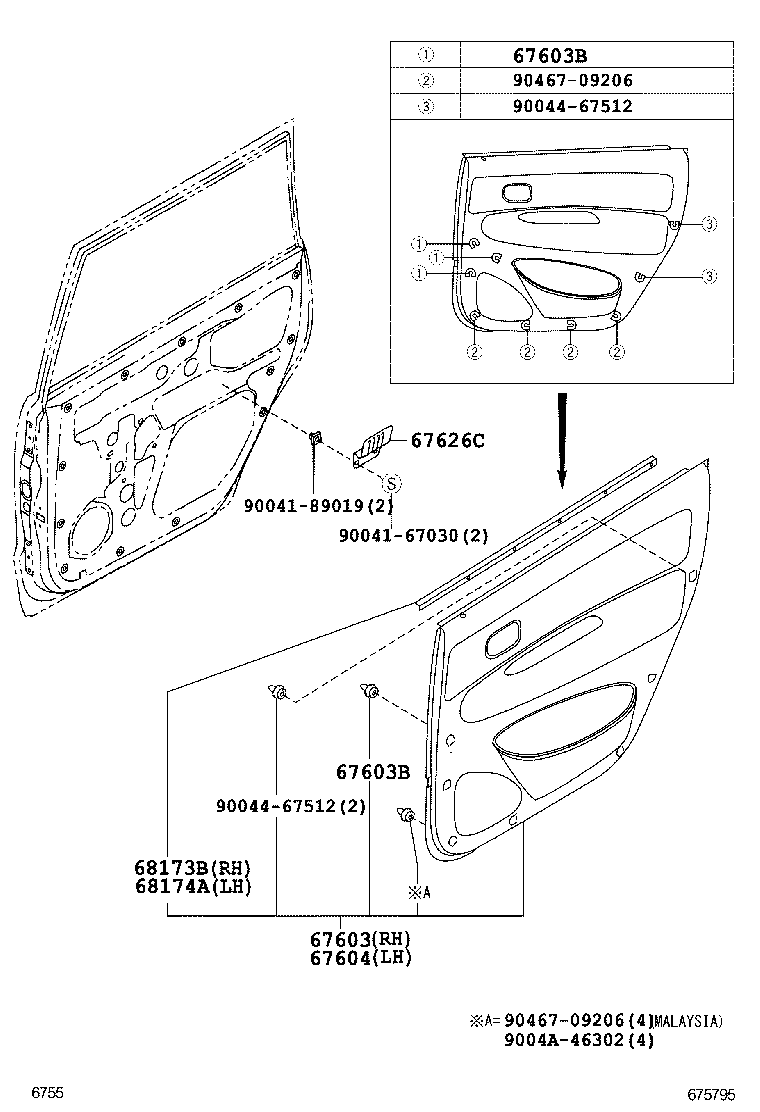

(0608- )F602 ; (0608- )F601..RHD..DLX,E,G,STD,XI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67607-BZ100A0 |
F602..S..(GEN,IDN) IVORY,TRIM0# |
1 | ||
| 67607-BZ090A0 |
F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67607-BZ230E0 |
F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67607-BZ250E0 |
F602..S..(GEN,IDN) GREGE,TRIM4# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
6 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
6 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67608-BZ100A0 |
F602..S..(GEN,IDN) IVORY,TRIM0# |
1 | ||
| 67608-BZ250E0 |
F602..S..(GEN,IDN) GREGE,TRIM4# |
1 | ||
| 67608-BZ230E0 |
F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67608-BZ090A0 |
F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67626C - BRACKET, REAR DOOR TRIM, NO.2 | ||||
| 67625-BZ010 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
2 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-BZ010 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68173-BZ010 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| Common parts | ||||
| 90041-67030 | ||||
| 90041-89019 | ||||
| 90044-67512 | ||||
| 9004A-46302 | ||||
| 90467-09206 | ||||
