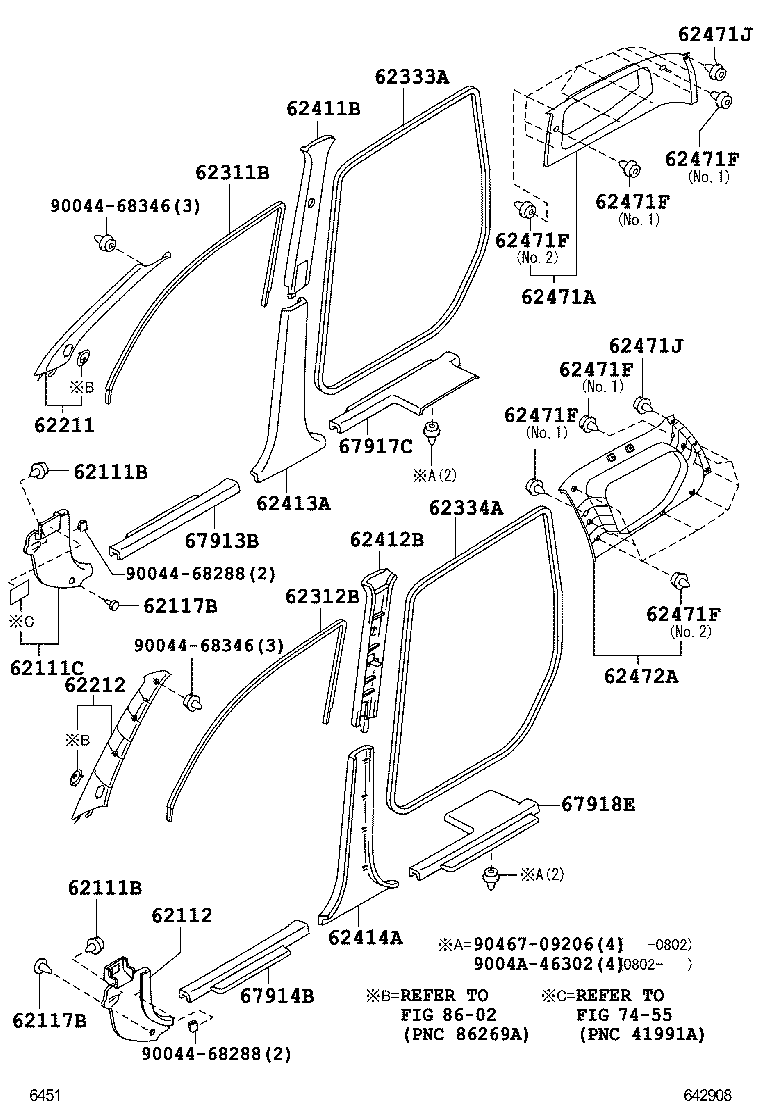

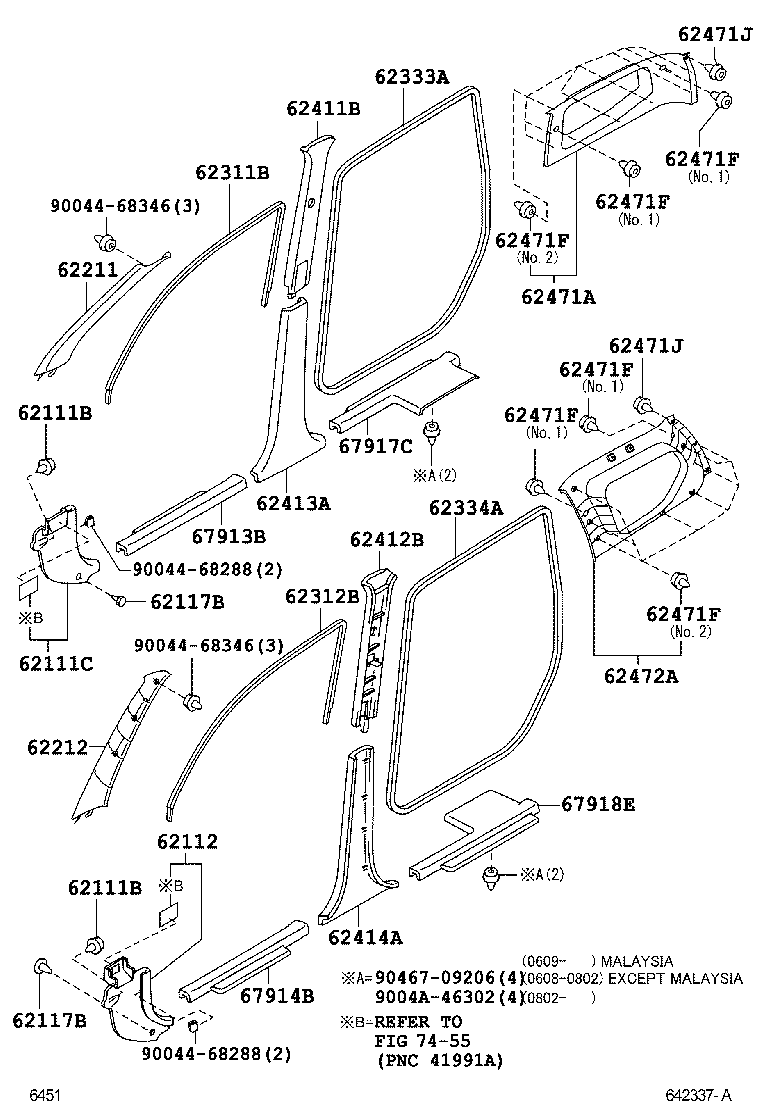

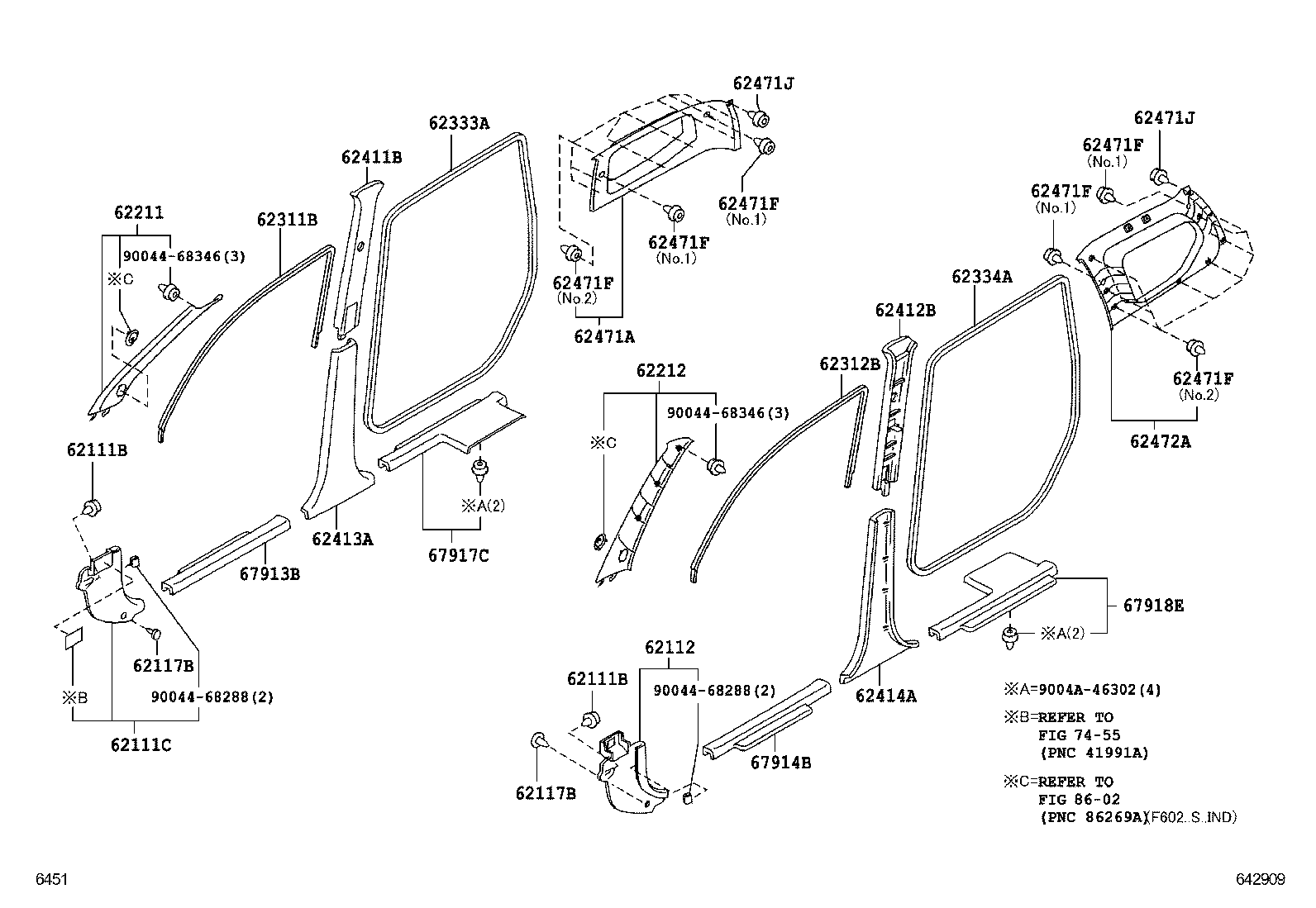

F602RM-GMSFJ (2006)
Toyota Avanza
(0608-1108)F602..G..GEN ; (0608-1108)F602..MXC,PHL,SA,TH ; (0608-1108)F601..RHD..DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-BZ010E0 |
F601..5F..MA;F602..RHD..(E,G,J);F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62111-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62111-BZ011E0 |
F602..S..(GEN,IDN);F60#..RHD..(E,G,J,XI)..(GEN,IDN,TH) GREGE,TRIM4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62112-BZ010E0 |
F601..5F..MA;F602..RHD..(E,G,J);F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62112-BZ011E0 |
F602..S..(GEN,IDN);F60#..RHD..(E,G,J,XI)..(GEN,IDN,TH) GREGE,TRIM4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-BZ010E0 |
F602..S..MA;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62211-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62210-BZ020E0 |
F602..S..(GEN,IDN) GREGE,TRIM4# |
1 | ||
| 62211-BZ011E0 |
F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62210-BZ020A0 |
F602..S..(GEN,IDN) IVORY,TRIM0# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-BZ010A0 |
F602..S..(GEN,IDN) IVORY,TRIM0# |
1 | ||
| 62212-BZ010E0 |
F602..S..MA;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62212-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62220-BZ010E0 |
F602..S..(GEN,IDN) GREGE,TRIM4# |
1 | ||
| 62212-BZ011E0 |
F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62411-BZ010A0 |
F601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA);F602..(E,G,GL,J)..(GEN,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-BZ010A0 |
F601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA);F602..(E,G,GL,J)..(GEN,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 62412-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-BZ020E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62413-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62414-BZ020E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-BZ050A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62471-BZ050E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90044-68114A0 |
F601..G..IDN;F602..S..(GEN,IDN);F60#..(E,G,GL,J)..(GEN,MA,MXC,SA,TH) IVORY,TRIM0# |
2 | ||
| 9004A-46288E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90044-68114A0 |
F601..G..IDN;F602..S..(GEN,IDN);F60#..(E,G,GL,J)..(GEN,MA,MXC,SA,TH) IVORY,TRIM0# |
2 | ||
| 9004A-46288E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-BZ050A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62472-BZ050E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67913-BZ010E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67914-BZ010E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-BZ010 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) |
1 | ||
| 67917-BZ010E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67917-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67917-BZ011E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-BZ010 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) |
1 | ||
| 67918-BZ010E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67918-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67918-BZ011E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90044-68288 | ||||
| 90044-68346 | ||||
| 9004A-46302 | ||||
| 90467-09206 | ||||
| Linked diagrams | ||||
| 7455 | ||||
(1108- )F602..G..GEN ; (1108- )F602..MXC,PHL,SA,TH ; (1108- )F601..RHD..DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-BZ010E0 |
F601..5F..MA;F602..RHD..(E,G,J);F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62111-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62111-BZ011E0 |
F602..S..(GEN,IDN);F60#..RHD..(E,G,J,XI)..(GEN,IDN,TH) GREGE,TRIM4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62112-BZ010E0 |
F601..5F..MA;F602..RHD..(E,G,J);F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62112-BZ011E0 |
F602..S..(GEN,IDN);F60#..RHD..(E,G,J,XI)..(GEN,IDN,TH) GREGE,TRIM4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-BZ010E0 |
F602..S..MA;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62211-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62210-BZ020E0 |
F602..S..(GEN,IDN) GREGE,TRIM4# |
1 | ||
| 62211-BZ011E0 |
F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62210-BZ020A0 |
F602..S..(GEN,IDN) IVORY,TRIM0# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-BZ010A0 |
F602..S..(GEN,IDN) IVORY,TRIM0# |
1 | ||
| 62212-BZ010E0 |
F602..S..MA;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62212-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62220-BZ010E0 |
F602..S..(GEN,IDN) GREGE,TRIM4# |
1 | ||
| 62212-BZ011E0 |
F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62411-BZ010A0 |
F601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA);F602..(E,G,GL,J)..(GEN,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-BZ010A0 |
F601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA);F602..(E,G,GL,J)..(GEN,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 62412-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-BZ020E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62413-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62414-BZ020E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-BZ050A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62471-BZ050E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90044-68114A0 |
F601..G..IDN;F602..S..(GEN,IDN);F60#..(E,G,GL,J)..(GEN,MA,MXC,SA,TH) IVORY,TRIM0# |
2 | ||
| 9004A-46288E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90044-68114A0 |
F601..G..IDN;F602..S..(GEN,IDN);F60#..(E,G,GL,J)..(GEN,MA,MXC,SA,TH) IVORY,TRIM0# |
2 | ||
| 9004A-46288E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-BZ050A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62472-BZ050E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67913-BZ010E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67914-BZ010E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-BZ010 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) |
1 | ||
| 67917-BZ010E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67917-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67917-BZ011E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-BZ010 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) |
1 | ||
| 67918-BZ010E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67918-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67918-BZ011E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90044-68288 | ||||
| 90044-68346 | ||||
| 9004A-46302 | ||||
| Linked diagrams | ||||
| 7455 | ||||
(0608-1108)S..GEN,IDN
TWEETER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-BZ010E0 |
F601..5F..MA;F602..RHD..(E,G,J);F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62111-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62111-BZ011E0 |
F602..S..(GEN,IDN);F60#..RHD..(E,G,J,XI)..(GEN,IDN,TH) GREGE,TRIM4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62112-BZ010E0 |
F601..5F..MA;F602..RHD..(E,G,J);F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62112-BZ011E0 |
F602..S..(GEN,IDN);F60#..RHD..(E,G,J,XI)..(GEN,IDN,TH) GREGE,TRIM4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-BZ010E0 |
F602..S..MA;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62211-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62210-BZ020E0 |
F602..S..(GEN,IDN) GREGE,TRIM4# |
1 | ||
| 62211-BZ011E0 |
F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62210-BZ020A0 |
F602..S..(GEN,IDN) IVORY,TRIM0# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-BZ010A0 |
F602..S..(GEN,IDN) IVORY,TRIM0# |
1 | ||
| 62212-BZ010E0 |
F602..S..MA;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62212-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62220-BZ010E0 |
F602..S..(GEN,IDN) GREGE,TRIM4# |
1 | ||
| 62212-BZ011E0 |
F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62411-BZ010A0 |
F601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA);F602..(E,G,GL,J)..(GEN,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-BZ010A0 |
F601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA);F602..(E,G,GL,J)..(GEN,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 62412-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-BZ020E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62413-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62414-BZ020E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-BZ050A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62471-BZ050E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90044-68114A0 |
F601..G..IDN;F602..S..(GEN,IDN);F60#..(E,G,GL,J)..(GEN,MA,MXC,SA,TH) IVORY,TRIM0# |
2 | ||
| 9004A-46288E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90044-68114A0 |
F601..G..IDN;F602..S..(GEN,IDN);F60#..(E,G,GL,J)..(GEN,MA,MXC,SA,TH) IVORY,TRIM0# |
2 | ||
| 9004A-46288E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-BZ050A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62472-BZ050E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67913-BZ010E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67914-BZ010E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-BZ010 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) |
1 | ||
| 67917-BZ010E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67917-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67917-BZ011E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-BZ010 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) |
1 | ||
| 67918-BZ010E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67918-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67918-BZ011E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90044-68288 | ||||
| 90044-68346 | ||||
| 9004A-46302 | ||||
| 90467-09206 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8602 | ||||
(1108- )S..GEN,IDN
TWEETER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-BZ010E0 |
F601..5F..MA;F602..RHD..(E,G,J);F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62111-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62111-BZ011E0 |
F602..S..(GEN,IDN);F60#..RHD..(E,G,J,XI)..(GEN,IDN,TH) GREGE,TRIM4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62112-BZ010E0 |
F601..5F..MA;F602..RHD..(E,G,J);F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62112-BZ011E0 |
F602..S..(GEN,IDN);F60#..RHD..(E,G,J,XI)..(GEN,IDN,TH) GREGE,TRIM4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-BZ010E0 |
F602..S..MA;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62211-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62210-BZ020E0 |
F602..S..(GEN,IDN) GREGE,TRIM4# |
1 | ||
| 62211-BZ011E0 |
F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62210-BZ020A0 |
F602..S..(GEN,IDN) IVORY,TRIM0# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-BZ010A0 |
F602..S..(GEN,IDN) IVORY,TRIM0# |
1 | ||
| 62212-BZ010E0 |
F602..S..MA;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62212-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62220-BZ010E0 |
F602..S..(GEN,IDN) GREGE,TRIM4# |
1 | ||
| 62212-BZ011E0 |
F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62411-BZ010A0 |
F601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA);F602..(E,G,GL,J)..(GEN,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-BZ010A0 |
F601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA);F602..(E,G,GL,J)..(GEN,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 62412-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-BZ020E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62413-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62414-BZ020E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-BZ050A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62471-BZ050E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90044-68346 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) NO.2 |
16 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90044-68114A0 |
F601..G..IDN;F602..S..(GEN,IDN);F60#..(E,G,GL,J)..(GEN,MA,MXC,SA,TH) IVORY,TRIM0# |
2 | ||
| 9004A-46288E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90044-68114A0 |
F601..G..IDN;F602..S..(GEN,IDN);F60#..(E,G,GL,J)..(GEN,MA,MXC,SA,TH) IVORY,TRIM0# |
2 | ||
| 9004A-46288E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-BZ050A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62472-BZ050E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67913-BZ010E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67914-BZ010E0 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-BZ010 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) |
1 | ||
| 67917-BZ010E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67917-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67917-BZ011E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-BZ010 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) |
1 | ||
| 67918-BZ010E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| 67918-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67918-BZ011E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90044-68288 | ||||
| 90044-68346 | ||||
| 9004A-46302 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
