F602RM-GMSFJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

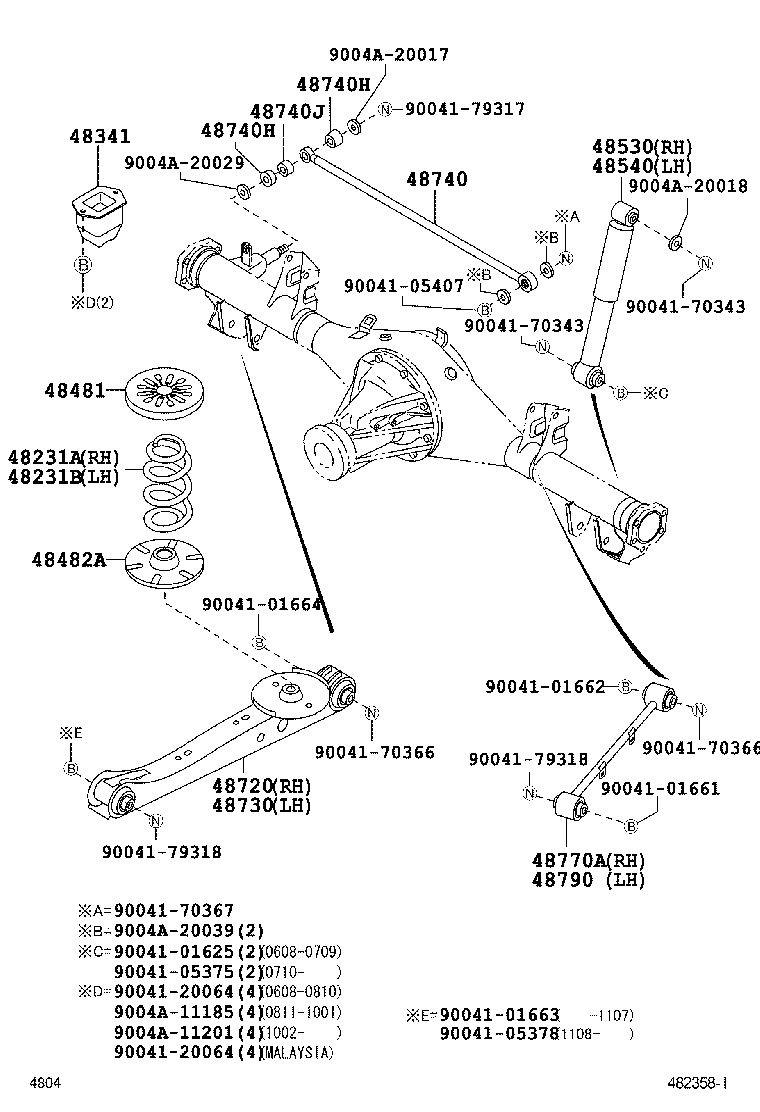

Click highlighted areas on diagram

diagram 48231A 48231B 48341 48481 48482A 48530 48540 48720 48730 48740 48740H 48740H 48740J 48770A 48790 9004101625 9004101661 9004101662 9004101663 9004101664 9004105375 9004105378 9004105407 9004120064 9004120064 9004170343 9004170343 9004170366 9004170366 9004170367 9004179317 9004179318 9004179318 9004A11185 9004A11201 9004A20017 9004A20018 9004A20029 9004A20039
Part # Description Qty Price
48231A - SPRING, COIL, REAR RH
48231-BZ120

F602..(E,GL)..(MA,MXC);F602..(DLX,G)..(GEN,SA);F601..5F..(GEN,MA,PHL,SA)

 1
48231-BZ130

F602..(G,S)..(MA,PHL);F602..(E,GL,J,S)..(GEN,SA,TH)

 1
48231B - SPRING, COIL, REAR LH
48231-BZ130

F602..(G,S)..(MA,PHL);F602..(E,GL,J,S)..(GEN,SA,TH)

 1
48231-BZ120

F602..(E,GL)..(MA,MXC);F602..(DLX,G)..(GEN,SA);F601..5F..(GEN,MA,PHL,SA)

 1
48341 - BUMPER, REAR SPRING
48341-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
48481 - SEAT, REAR SPRING, UPPER
48481-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
48482A - SEAT, REAR SPRING, LOWER
48482-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-BZ161

F60#..GEN,MXC,PHL,SA,TH

MARK 48531-BZ161

 1
48531-BZ160

F60#..GEN,MXC,PHL,SA,TH

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-BZ161

F60#..GEN,MXC,PHL,SA,TH

MARK 48531-BZ161

 1
48531-BZ160

F60#..GEN,MXC,PHL,SA,TH

 1
48720 - ARM ASSY, LOWER CONTROL, RH
48720-BZ011

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
48730 - ARM ASSY, LOWER CONTROL, LH
48720-BZ011

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-BZ010

F601..5F..MA;F601..GEN,IDN,PHL;F602..GEN,IDN,MA,MXC,PHL,TH

 1
48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
90043-85149

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
90043-85149

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
48740J - BUSH, NO.2(FOR REAR LATERAL CONTROL ROD)
90043-86103

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48710-BZ010

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 1
48710-BZ020

F601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,SA,TH)

 1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48710-BZ010

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 1
48710-BZ020

F601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,SA,TH)

 1
Common parts
90041-01625
90041-01661
90041-01662
90041-01663
90041-01664
90041-05375
90041-05378
90041-05407
90041-20064
90041-70343
90041-70366
90041-70367
90041-79317
90041-79318
9004A-11185
9004A-11201
9004A-20017
9004A-20018
9004A-20029
9004A-20039
