F602RM-GMSFJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

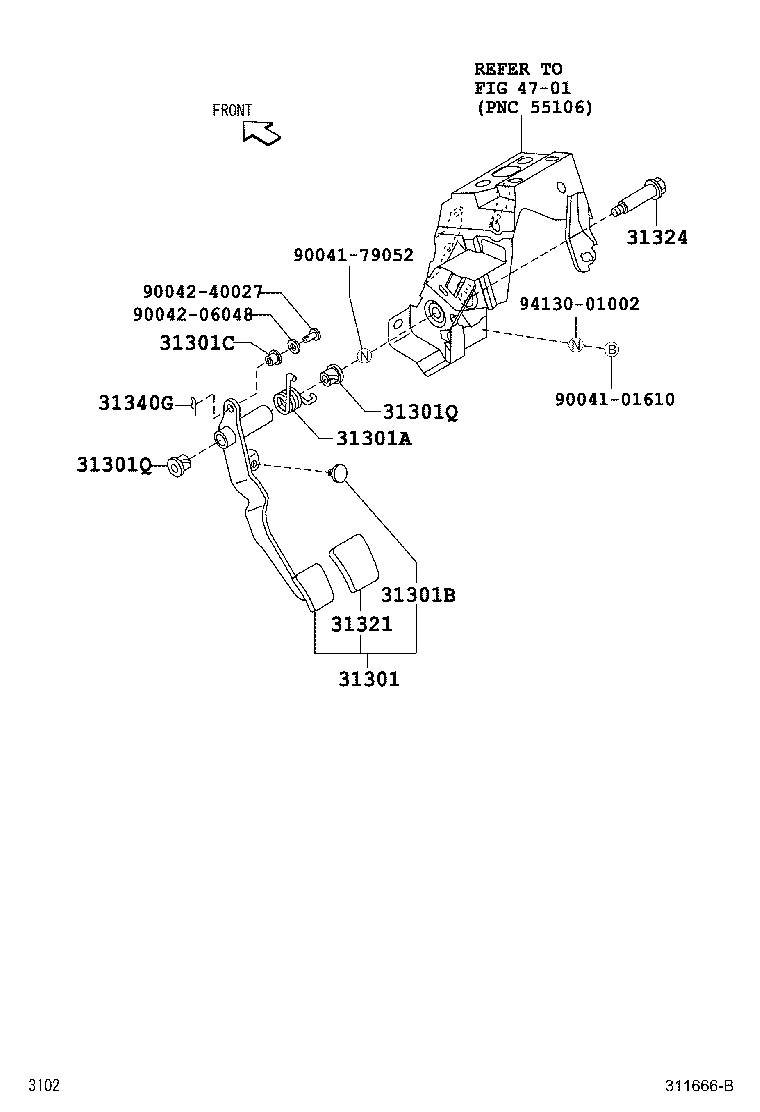

ILLUST NO. 4 OF 7(0608- )CTM,G..MA,SA ; (0608- )F602..RHD..GEN,IDN,SA,TH

Click highlighted areas on diagram

RHD HYDRO

diagram 31301 31301A 31301B 31301C 31301Q 31301Q 31321 31324 31340G 4701 9004101610 9004179052 9004206048 9004240027 9413001002
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-BZ050

F602..RHD..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
9004A-50083

F602..RHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
9004A-54003

F60#..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90043-86123

F602..5F

 1
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
9004A-38021

F60#..5F

 2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
9004A-38021

F60#..5F

 2
31321 - PAD, CLUTCH PEDAL
31321-BZ010

F60#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90041-05397

F602..RHD..5F

 1
31324-BZ050

F602..RHD..5F

 1
31340G - CLIP(FOR CLUTCH RELEASE CABLE)
90044-68337

F602..5F

 1
Common parts
90041-01610
90041-79052
90042-06048
90042-40027
94130-01002
Linked diagrams
4701

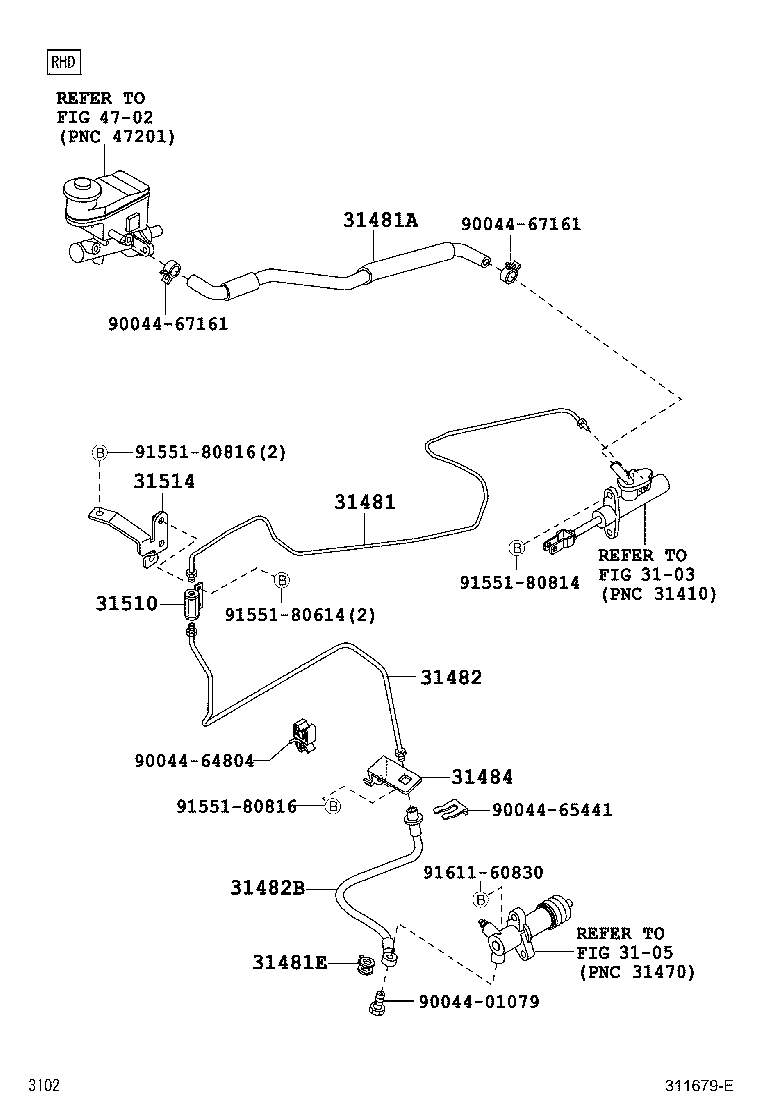

ILLUST NO. 5 OF 7(0608- )RHD..5F

Click highlighted areas on diagram

RHD HYDRO

diagram 3103 3105 31481 31481A 31481E 31482 31482B 31484 31510 31514 4702 9004401079 9004464804 9004465441 9004467161 9004467161 9155180614 9155180814 9155180816 9155180816 9161160830
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31482-BZ020

F602..RHD..5F

 1
31482-BZ030

F602..5F..G

 1
31481A - HOSE, CLUTCH, NO.1
31434-BZ030

F602..RHD..5F

 1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
47389-97201

F602..RHD..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-BZ030

F602..RHD..5F

 1
31482B - HOSE, CLUTCH, NO.2
9004A-94079

F602..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-BZ010

F602..5F

 1
31510 - ORIFICE ASSY, CLUTCH
31510-B0010

F602..5F

 1
31514 - BRACKET, CLUTCH ORIFICE
31514-BZ010

F602..5F..(GEN,IDN,PHL,SA,TH)

 1
Common parts
90044-01079
90044-64804
90044-65441
90044-67161
91551-80614
91551-80814
91551-80816
91611-60830
Linked diagrams
3103
3105
4702
