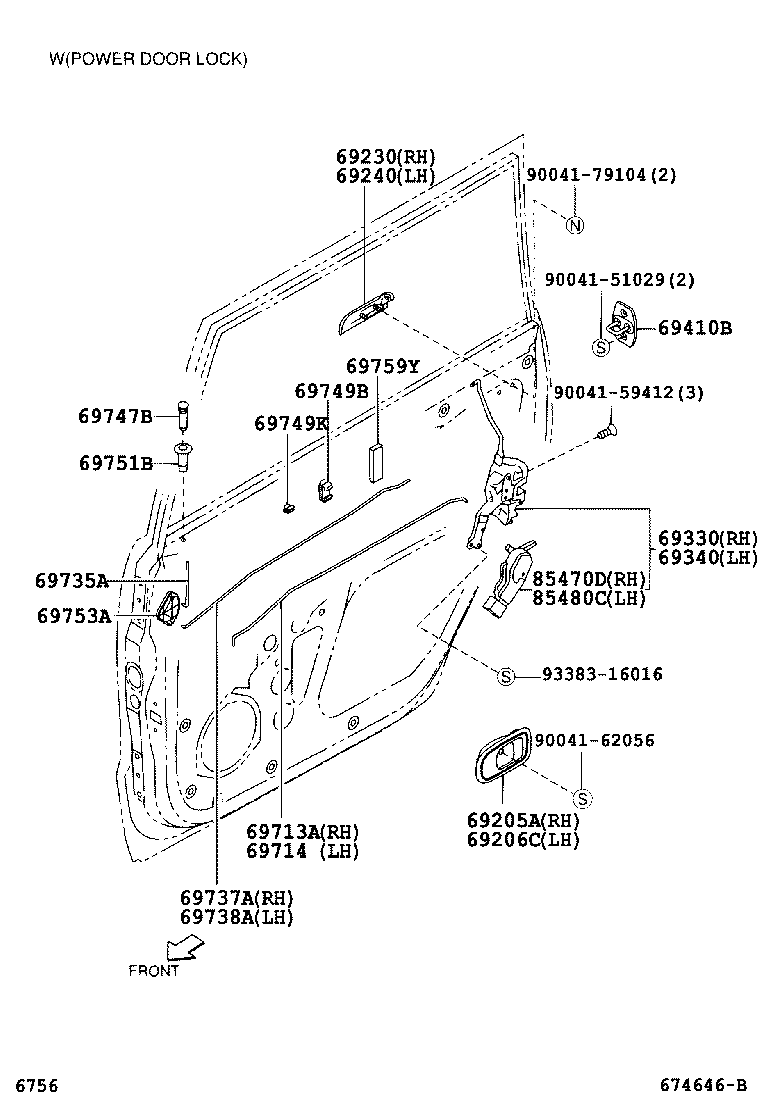

F602RM-GMDFJT (2006)
Toyota Avanza
(0608- )F602 ; (0608- )F601..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69270-BZ010E0 |
F601..E,G;F602..E,G,J;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 69270-BZ010B0 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 69270-BZ011B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 69270-BZ011E0 |
F602..E,G,J;F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 69270-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69280-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 69280-BZ011E0 |
F602..E,G,J;F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 69280-BZ010B0 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 69280-BZ011B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 69280-BZ010E0 |
F601..E,G;F602..E,G,J;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-BZ160 |
F602..DLX;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) PAINT REQ. |
1 | ||
| 69210-BZ160 |
F602..(GL,S)..(SA,TH) PAINT REQ. |
1 | ||
| 69210-BZ130 |
F602..(GL,S)..(SA,TH) PLATED |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-BZ160 |
F602..(GL,S)..(SA,TH) PAINT REQ. |
1 | ||
| 69220-BZ130 |
F602..(GL,S)..(SA,TH) PLATED |
1 | ||
| 69220-BZ160 |
F602..DLX;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH) PAINT REQ. |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-BZ010 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-BZ010 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
2 | ||
| 69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 69735A - ROD, REAR DOOR LOCK PUSH BUTTON | ||||
| 69735-BZ020 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) RH |
1 | ||
| 69736-BZ020 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) LH |
1 | ||
| 69737A - LINK, REAR DOOR INSIDE LOCKING , RH | ||||
| 69737-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 69738A - LINK, REAR DOOR INSIDE LOCKING , LH | ||||
| 69738-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69743-BZ030B0 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) DK.GRAY,TRIM1# |
2 | ||
| 69743-BZ040E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,J)..(GEN,PHL,TH) GREGE,TRIM4# |
2 | ||
| 69743-BZ040B0 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) GRAY,TRIM1# |
2 | ||
| 69743-BZ030A0 |
F602..S..(GEN,IDN);F602..(DLX,E,G,GL,J)..(GEN,PHL,SA,TH);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA) IVORY,TRIM0# |
2 | ||
| 69747-87703A0 |
F60#..RHD IVORY,TRIM0# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-87701 |
F602..GEN,IDN,MXC,PHL,SA,TH;F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA) |
2 | ||
| 69749-BZ070 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 69749K - CLAMP, REAR DOOR LOCK | ||||
| 69749-87702 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 69749-BZ080 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69751-87703E1 |
F60#..RHD..(GEN,IDN);F602..(E,G,J)..(GEN,PHL,TH) GREGE,TRIM4# |
2 | ||
| 69751-87703A0 |
F602..S..(GEN,IDN);F602..(DLX,E,G,GL,J)..(GEN,PHL,SA,TH);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA) IVORY,TRIM0# |
2 | ||
| 69751-BZ040B0 |
F60#..(DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
2 | ||
| 69751-87703B0 |
F60#..(DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
2 | ||
| 69751-BZ040E0 |
F60#..RHD..(GEN,IDN);F602..(E,G,J)..(GEN,PHL,TH) GREGE,TRIM4# |
2 | ||
| 69753A - BELLCRANK, DOOR LOCK CONTROL | ||||
| 69763-87703 |
F602..GEN,IDN,MXC,PHL,SA,TH;F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA) |
2 | ||
| 69753-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 69759Y - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-87Z03 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
6 | ||
| 85470D - MOTOR ASSY, DOOR CONTROL, REAR RH | ||||
| 85470-BZ010 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 85480C - MOTOR ASSY, DOOR CONTROL, REAR LH | ||||
| 85480-BZ010 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| Common parts | ||||
| 90041-51029 | ||||
| 90041-59412 | ||||
| 90041-62056 | ||||
| 90041-79104 | ||||
| 93383-16016 | ||||
