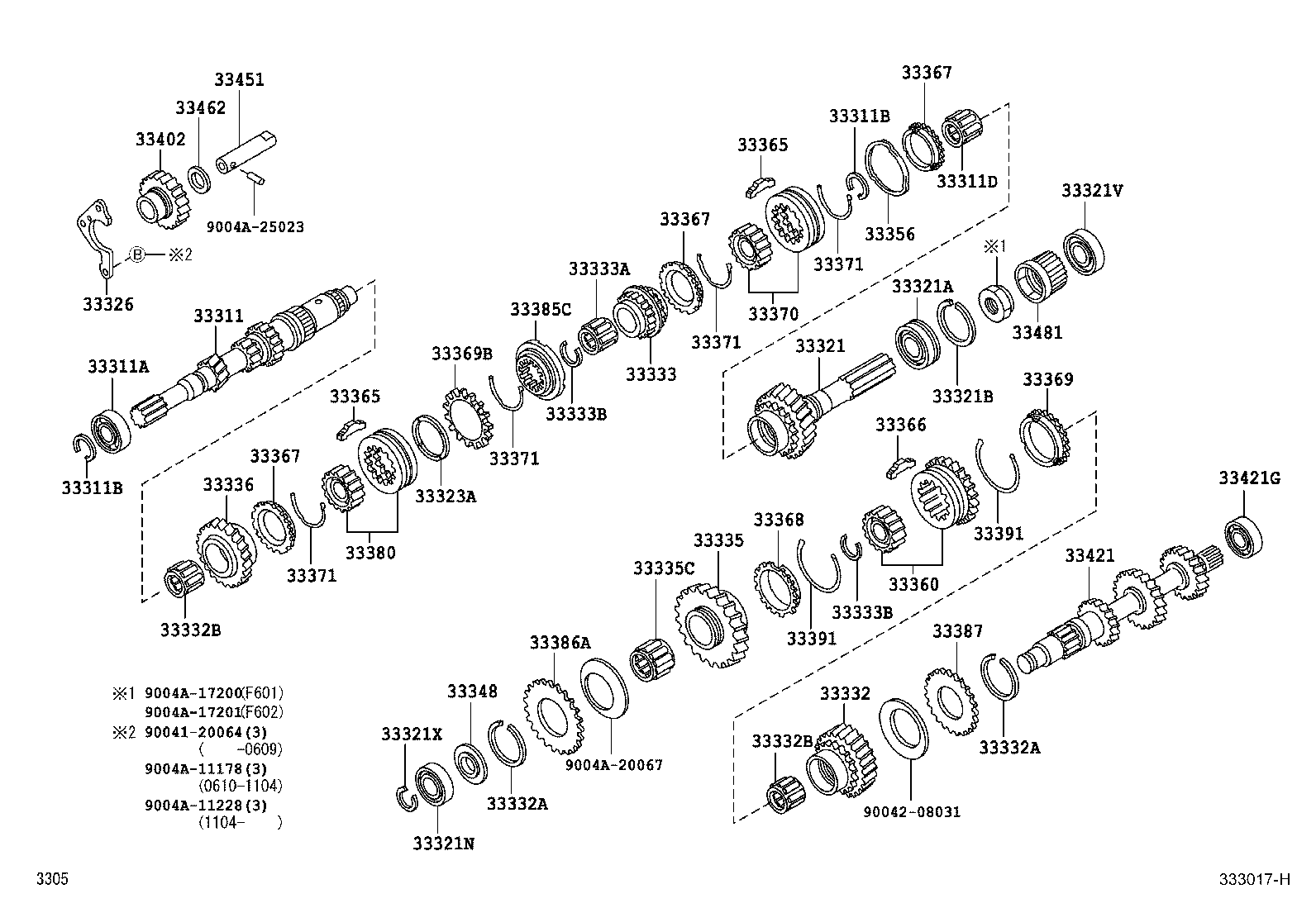

F602RM-GMDFJT (2006)
Toyota Avanza
(0608- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-B4010 |
F602..5F |
1 | ||
| 33311-BZ040 |
F602..5F |
1 | ||
| 33311-BZ030 |
F602..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90043-63246 |
F602..5F..(SA,TH) (J),NO.2 |
1 | ||
| 9004A-36047 |
F60#..5F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90045-20272 |
F60#..5F T=2.02,T=2.02 |
2 | ||
| 90045-20273 |
F60#..5F T=1.98,T=1.98 |
2 | ||
| 90045-20274 |
F60#..5F T=1.94,T=1.94 |
2 | ||
| 90045-20277 |
F60#..5F T=1.82,T=1.82 |
2 | ||
| 90045-20275 |
F60#..5F T=1.90,T=1.90 |
2 | ||
| 9004A-52047 |
F60#..5F T=2.02,T=2.02 |
2 | ||
| 90045-20276 |
F60#..5F T=1.86,T=1.86 |
2 | ||
| 9004A-52048 |
F60#..5F T=1.98,T=1.98 |
2 | ||
| 9004A-52046 |
F60#..5F T=2.06,T=2.06 |
2 | ||
| 9004A-52053 |
F602..5F;F601..5F..(MA,PHL,SA) T=1.78,T=1.78 |
2 | ||
| 90045-20278 |
F60#..5F T=1.78,T=1.78 |
2 | ||
| 9004A-52051 |
F60#..5F T=1.86,T=1.86 |
2 | ||
| 9004A-52052 |
F60#..5F T=1.82,T=1.82 |
2 | ||
| 9004A-52049 |
F60#..5F T=1.94,T=1.94 |
2 | ||
| 90045-20271 |
F60#..5F T=2.06,T=2.06 |
2 | ||
| 9004A-52050 |
F60#..5F T=1.90,T=1.90 |
2 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90045-20272 |
F60#..5F T=2.02,T=2.02 |
2 | ||
| 90045-20273 |
F60#..5F T=1.98,T=1.98 |
2 | ||
| 90045-20274 |
F60#..5F T=1.94,T=1.94 |
2 | ||
| 90045-20277 |
F60#..5F T=1.82,T=1.82 |
2 | ||
| 90045-20275 |
F60#..5F T=1.90,T=1.90 |
2 | ||
| 9004A-52047 |
F60#..5F T=2.02,T=2.02 |
2 | ||
| 90045-20276 |
F60#..5F T=1.86,T=1.86 |
2 | ||
| 9004A-52048 |
F60#..5F T=1.98,T=1.98 |
2 | ||
| 9004A-52046 |
F60#..5F T=2.06,T=2.06 |
2 | ||
| 9004A-52053 |
F602..5F;F601..5F..(MA,PHL,SA) T=1.78,T=1.78 |
2 | ||
| 90045-20278 |
F60#..5F T=1.78,T=1.78 |
2 | ||
| 9004A-52051 |
F60#..5F T=1.86,T=1.86 |
2 | ||
| 9004A-52052 |
F60#..5F T=1.82,T=1.82 |
2 | ||
| 9004A-52049 |
F60#..5F T=1.94,T=1.94 |
2 | ||
| 90045-20271 |
F60#..5F T=2.06,T=2.06 |
2 | ||
| 9004A-52050 |
F60#..5F T=1.90,T=1.90 |
2 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 9004A-36059 |
F602..5F |
1 | ||
| 9004A-36103 |
F602..5F |
1 | ||
| 90043-64142 |
F602..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-BZ030 |
F602..5F |
1 | ||
| 33321-B4010 |
F602..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 9004A-36051 |
F602..5F |
1 | ||
| 90043-63311 |
F602..5F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90045-21157 |
F602..5F;F601..GEN,IDN |
1 | ||
| 9004A-52062 |
F60#..5F |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90043-63247 |
F602..5F..(SA,TH) (J),NO.2 |
1 | ||
| 9004A-36050 |
F60#..5F |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90043-63312 |
F602..5F NO.2 |
1 | ||
| 9004A-36055 |
F602..5F |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90045-20279 |
F60#..5F T=2.06,T=2.07 |
1 | ||
| 90045-20286 |
F60#..5F T=1.78,T=1.79 |
1 | ||
| 90045-20282 |
F60#..5F T=1.94,T=1.95 |
1 | ||
| 90045-20280 |
F60#..5F T=2.02,T=2.03 |
1 | ||
| 90045-20281 |
F60#..5F T=1.98,T=1.99 |
1 | ||
| 9004A-52054 |
F601..5F;F602..5F..(PHL,SA,TH) T=2.06,T=2.07 |
1 | ||
| 90045-20283 |
F60#..5F T=1.90,T=1.91 |
1 | ||
| 9004A-52058 |
F601..5F;F602..5F..(PHL,SA,TH) T=1.90,T=1.91 |
1 | ||
| 9004A-52061 |
F60#..5F T=1.78,T=1.79 |
1 | ||
| 90045-20285 |
F60#..5F T=1.82,T=1.82 |
1 | ||
| 9004A-52056 |
F601..5F;F602..5F..(PHL,SA,TH) T=1.98,T=1.99 |
1 | ||
| 9004A-52057 |
F601..5F;F602..5F..(PHL,SA,TH) T=1.94,T=1.95 |
1 | ||
| 90045-20284 |
F60#..5F T=1.86,T=1.87 |
1 | ||
| 9004A-52055 |
F601..5F;F602..5F..(PHL,SA,TH) T=2.02,T=2.03 |
1 | ||
| 9004A-52059 |
F601..5F;F602..5F..(PHL,SA,TH) T=1.86,T=1.87 |
1 | ||
| 9004A-52060 |
F601..5F;F602..5F..(PHL,SA,TH) T=1.82,T=1.82 |
1 | ||
| 33323A - SPACER, SYNCHRONIZER RING | ||||
| 33323-B0010 |
F60#..5F |
1 | ||
| 33323-BZ010 |
F60#..5F |
1 | ||
| 33326 - PLATE, BEARING LOCK | ||||
| 33326-BZ010 |
F60#..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-87511 |
F60#..5F |
1 | ||
| 33332-BZ010 |
F60#..5F |
1 | ||
| 33332A - RING, SHAFT SNAP (FOR 2ND GEAR) | ||||
| 90045-20107 |
F60#..5F |
2 | ||
| 9004A-52063 |
F60#..5F |
2 | ||
| 33332A - RING, SHAFT SNAP (FOR 2ND GEAR) | ||||
| 90045-20107 |
F60#..5F |
2 | ||
| 9004A-52063 |
F60#..5F |
2 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90043-64121 |
F60#..5F..(DLX,E,G,GL,J,STD) KOYO |
2 | ||
| 90043-64119 |
F60#..5F..(DLX,E,G,GL,J,STD) NTN |
2 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90043-64121 |
F60#..5F..(DLX,E,G,GL,J,STD) KOYO |
2 | ||
| 90043-64119 |
F60#..5F..(DLX,E,G,GL,J,STD) NTN |
2 | ||
| 33333 - GEAR, 3RD | ||||
| 33305-B0020 |
F602..5F |
1 | ||
| 33305-BZ010 |
F602..5F |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 9004A-36053 |
F602..5F |
1 | ||
| 90043-64143 |
F602..5F |
1 | ||
| 33333B - RING, SHAFT SNAP (FOR 3RD REAR) | ||||
| 90045-20264 |
F60#..5F T=2.02 |
2 | ||
| 90045-20265 |
F60#..5F T=1.98 |
2 | ||
| 90045-20268 |
F60#..5F T=1.86 |
2 | ||
| 90045-20263 |
F60#..5F T=2.06 |
2 | ||
| 90045-20269 |
F60#..5F T=1.82 |
2 | ||
| 9004A-52039 |
F60#..5F T=2.02 |
2 | ||
| 9004A-52042 |
F60#..5F T=1.90 |
2 | ||
| 9004A-52038 |
F60#..5F T=2.06 |
2 | ||
| 90045-20267 |
F60#..5F T=1.90 |
2 | ||
| 9004A-52041 |
F60#..5F T=1.94 |
2 | ||
| 9004A-52043 |
F60#..5F T=1.86 |
2 | ||
| 90045-20270 |
F60#..5F T=2.10 |
2 | ||
| 9004A-52044 |
F60#..5F T=1.82 |
2 | ||
| 9004A-52045 |
F60#..5F T=2.10 |
2 | ||
| 9004A-52040 |
F60#..5F T=1.98 |
2 | ||
| 90045-20266 |
F60#..5F T=1.94 |
2 | ||
| 33333B - RING, SHAFT SNAP (FOR 3RD REAR) | ||||
| 90045-20264 |
F60#..5F T=2.02 |
2 | ||
| 90045-20265 |
F60#..5F T=1.98 |
2 | ||
| 90045-20268 |
F60#..5F T=1.86 |
2 | ||
| 90045-20263 |
F60#..5F T=2.06 |
2 | ||
| 90045-20269 |
F60#..5F T=1.82 |
2 | ||
| 9004A-52039 |
F60#..5F T=2.02 |
2 | ||
| 9004A-52042 |
F60#..5F T=1.90 |
2 | ||
| 9004A-52038 |
F60#..5F T=2.06 |
2 | ||
| 90045-20267 |
F60#..5F T=1.90 |
2 | ||
| 9004A-52041 |
F60#..5F T=1.94 |
2 | ||
| 9004A-52043 |
F60#..5F T=1.86 |
2 | ||
| 90045-20270 |
F60#..5F T=2.10 |
2 | ||
| 9004A-52044 |
F60#..5F T=1.82 |
2 | ||
| 9004A-52045 |
F60#..5F T=2.10 |
2 | ||
| 9004A-52040 |
F60#..5F T=1.98 |
2 | ||
| 90045-20266 |
F60#..5F T=1.94 |
2 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-97501 |
F60#..5F |
1 | ||
| 33335-BZ020 |
F60#..5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 9004A-36056 |
F60#..5F |
1 | ||
| 90043-64034 |
F602..5F..(SA,TH) (J),NO.2 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-87504 |
F60#..5F |
1 | ||
| 33336-BZ010 |
F60#..5F |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-87508 |
F60#..5F |
1 | ||
| 33348-BZ010 |
F60#..5F |
1 | ||
| 33356 - SPRING, WAVE | ||||
| 33356-BZ010 |
F60#..5F |
1 | ||
| 33356-87501 |
F60#..5F |
1 | ||
| 33360 - HUB ASSY, SYNCHRONIZER, NO.1 | ||||
| 33360-BZ040 |
F602..5F |
1 | ||
| 33360-B4010 |
F602..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-BZ010 |
F60#..5F |
6 | ||
| 33365-87702 |
F60#..5F |
6 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-BZ010 |
F60#..5F |
6 | ||
| 33365-87702 |
F60#..5F |
6 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-BZ010 |
F60#..5F |
3 | ||
| 33366-87505 |
F60#..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-87507 |
F60#..5F |
4 | ||
| 33367-BZ010 |
F60#..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-87507 |
F60#..5F |
4 | ||
| 33367-BZ010 |
F60#..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-87507 |
F60#..5F |
4 | ||
| 33367-BZ010 |
F60#..5F |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-BZ010 |
F60#..5F |
1 | ||
| 33368-87509 |
F60#..5F |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-BZ010 |
F60#..5F |
1 | ||
| 33369-87503 |
F60#..5F |
1 | ||
| 33369B - RING, SYNCHRONIZER, NO.4 | ||||
| 33381-B0010 |
F60#..5F |
1 | ||
| 33381-BZ010 |
F60#..5F |
1 | ||
| 33370 - HUB ASSY, SYNCHRONIZER, NO.2 | ||||
| 33370-BZ020 |
F60#..5F |
1 | ||
| 33370-87515 |
F60#..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-BZ010 |
F60#..5F |
4 | ||
| 33371-87505 |
F60#..5F |
4 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-BZ010 |
F60#..5F |
4 | ||
| 33371-87505 |
F60#..5F |
4 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-BZ010 |
F60#..5F |
4 | ||
| 33371-87505 |
F60#..5F |
4 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-BZ010 |
F60#..5F |
4 | ||
| 33371-87505 |
F60#..5F |
4 | ||
| 33380 - HUB ASSY, SYNCHRONIZER, NO.3 | ||||
| 33380-87509 |
F60#..5F |
1 | ||
| 33380-BZ020 |
F60#..5F |
1 | ||
| 33386A - SUB-GEAR, 1ST | ||||
| 33386-87503 |
F60#..5F |
1 | ||
| 33386-BZ010 |
F60#..5F |
1 | ||
| 33387 - SUB-GEAR, NO.2 | ||||
| 33387-BZ010 |
F60#..5F |
1 | ||
| 33387-87503 |
F60#..5F |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-87701 |
F60#..5F |
2 | ||
| 33391-BZ010 |
F60#..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-87701 |
F60#..5F |
2 | ||
| 33391-BZ010 |
F60#..5F |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-BZ020 |
F602..5F |
1 | ||
| 33402-BZ030 |
F602..5F |
1 | ||
| 33402-B4011 |
F602..5F |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-B4010 |
F602..5F |
1 | ||
| 33421-BZ030 |
F602..5F |
1 | ||
| 33421G - BEARING, RADIAL BALL(FOR COUNTER GEAR REAR) | ||||
| 9004A-36048 |
F60#..5F |
1 | ||
| 90043-63313 |
F60#..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-87504 |
F60#..5F |
1 | ||
| 33451-BZ020 |
F60#..5F |
1 | ||
| 33451-BZ050 |
F60#..5F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-87501 |
F60#..5F |
1 | ||
| 33462-BZ010 |
F60#..5F |
1 | ||
| 33462-BZ020 |
F60#..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-B0010 |
F602..5F N=6 |
1 | ||
| 33481-BZ090 |
F602..5F N=6 |
1 | ||
| 33481-BZ030 |
F602..5F |
1 | ||
| Common parts | ||||
| 90041-20064 | ||||
| 90042-08031 | ||||
| 9004A-11178 | ||||
| 9004A-11228 | ||||
| 9004A-17200 | ||||
| 9004A-17201 | ||||
| 9004A-20067 | ||||
| 9004A-25023 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
