F602RM-GMDFJN (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )RHD

Click highlighted areas on diagram

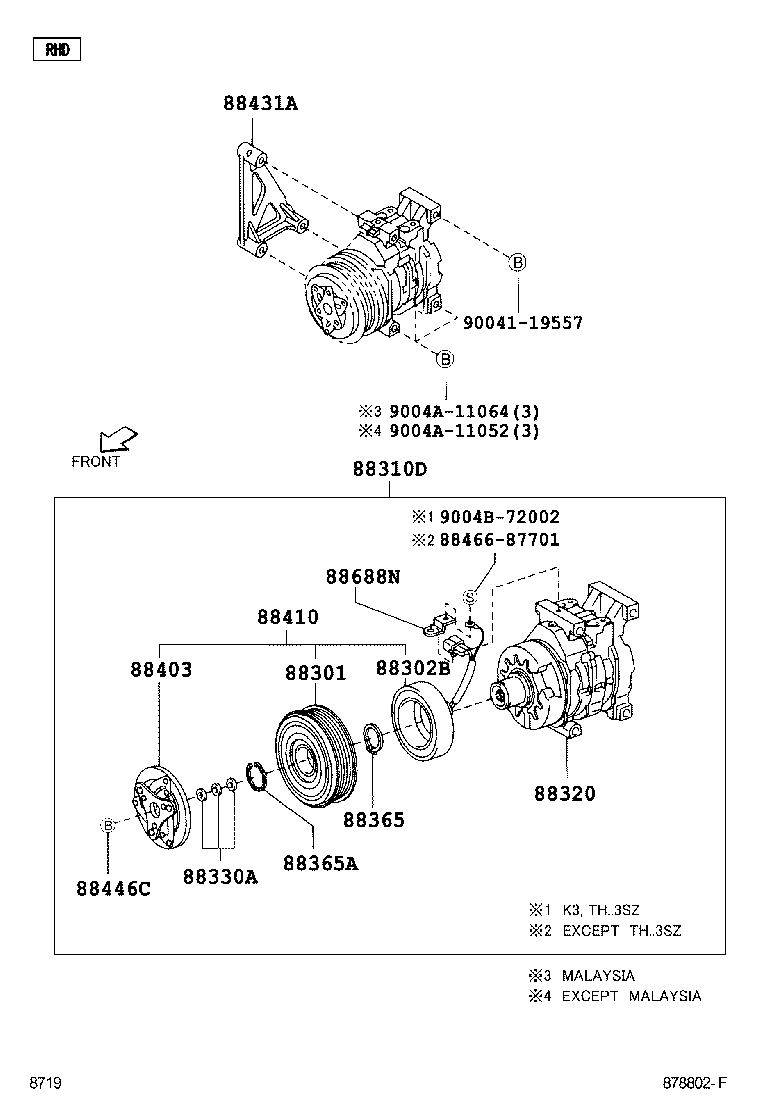

diagram 88301 88302B 88310D 88320 88330A 88365 88365A 88403 88410 88431A 88446C 8846687701 88688N 9004119557 9004A11052 9004A11064 9004B72002
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-BZ020

F602

 1
88302B - STATOR, MAGNET CLUTCH
88411-BZ020

F602..RHD

 1
88320 - COMPRESSOR ASSY, COOLER
88320-BZ020

F601..5F..MA;F602..RHD..(GEN,IDN,MA,SA)

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88318-87706

F601..5F..(GEN,IDN,PHL,SA);F602..GEN,IDN,MA,MXC,PHL,SA

T=0.5

 1
88318-87704

F601..5F..(GEN,IDN,PHL,SA);F602..GEN,IDN,MA,MXC,PHL,SA

T=0.1

 1
88318-87705

F601..5F..(GEN,IDN,PHL,SA);F602..GEN,IDN,MA,MXC,PHL,SA

T=0.3

 1
88365 - RING, SNAP
90099-07125

F601..LHD;F602..GEN,IDN,MA,MXC,PHL,SA

 1
88365A - RING, SNAP (FOR COMPRESSOR)
90099-07114

F601..LHD;F602..GEN,IDN,MA,MXC,PHL,SA

 1
88410 - CLUTCH ASSY, MAGNET
88410-BZ040

F602..RHD

 1
88431A - BRACKET, COMPRESSOR MOUNTING, NO.2
81218-BZ010

F60#..RHD..(GEN,IDN,SA,TH)

 1
88446C - BOLT, MAGNET CLUTCH SETTING
90099-04349

F601..5F..(GEN,IDN,PHL,SA);F602..GEN,IDN,MA,MXC,PHL,SA

 1
88688N - BRACKET, COOLER
88369-BZ020

F602..RHD..(GEN,IDN,MA,SA)

 1
Common parts
88466-87701
90041-19557
9004A-11052
9004A-11064
9004B-72002
