F602RM-GMDFJN (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )F601..CTM,DLX,STD ; (0608- )F602..DLX,G,GL..GEN,MXC,SA

Click highlighted areas on diagram

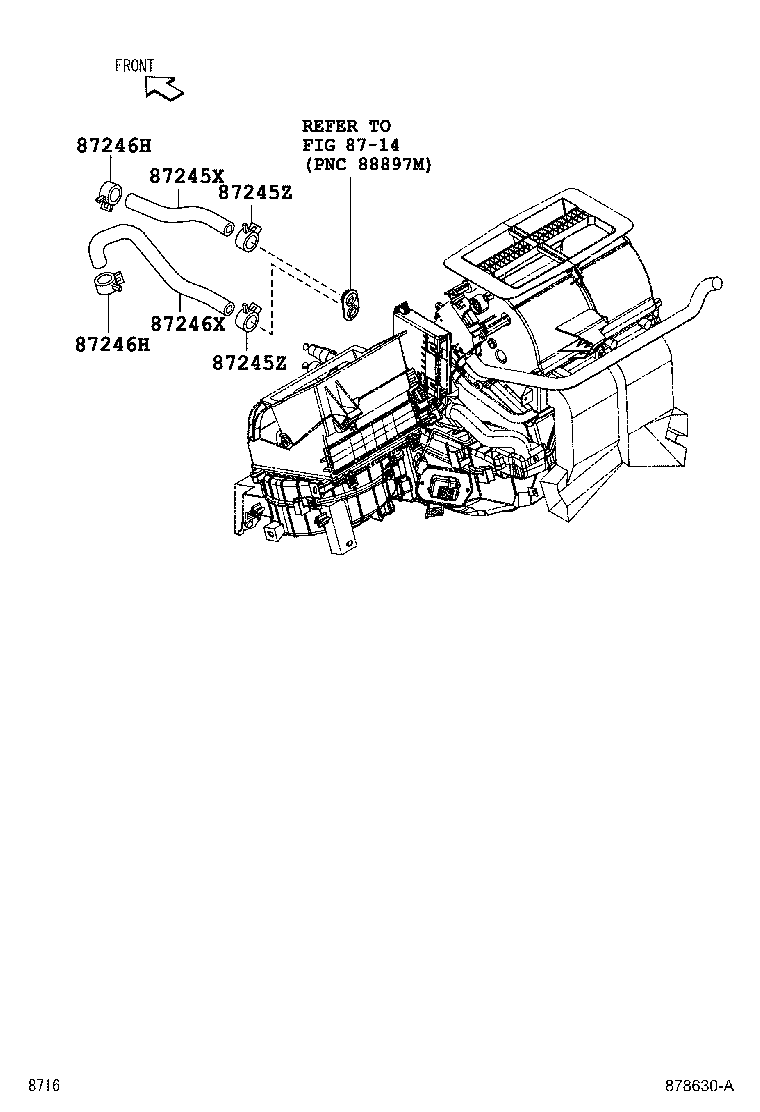

diagram 8714 87245X 87245Z 87245Z 87246H 87246H 87246X
Part # Description Qty Price
87245X - HOSE, HEATER WATER
87245-BZ020

F602..(DLX,G,GL)..(GEN,MXC,SA)

 1
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
88718-97209

F601..CTM,DLX,STD;F602..(DLX,G,GL)..(GEN,MXC,SA)

 2
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
88718-97209

F601..CTM,DLX,STD;F602..(DLX,G,GL)..(GEN,MXC,SA)

 2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90044-67485

F601..CTM,DLX,STD;F602..(DLX,G,GL)..(GEN,MXC,SA)

 2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90044-67485

F601..CTM,DLX,STD;F602..(DLX,G,GL)..(GEN,MXC,SA)

 2
87246X - HOSE, HEATER WATER
87246-BZ020

F602..(DLX,G,GL)..(GEN,MXC,SA)

 1
Linked diagrams
8714
