F602LM-GQMFJX (2006)

Toyota Avanza

Production Oct 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

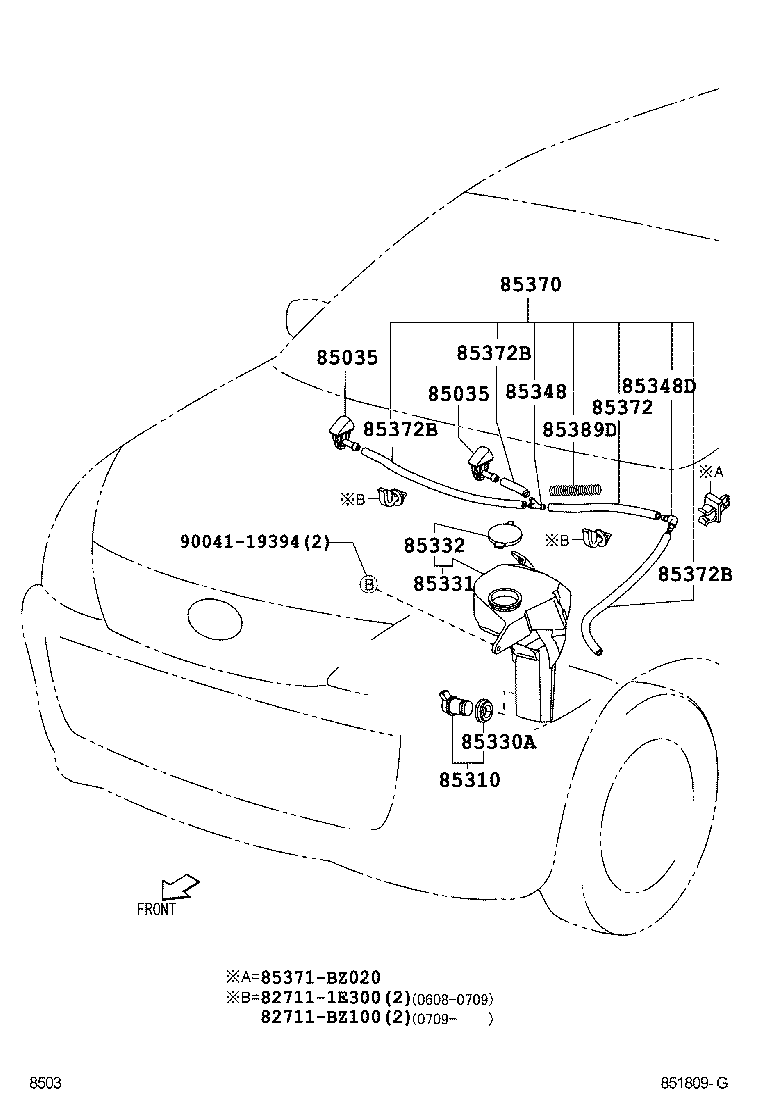

(0610-1107)MXC

Click highlighted areas on diagram

diagram 827111E300 82711BZ100 85035 85035 85310 85330A 85331 85332 85348 85348D 85370 85371BZ020 85372 85372B 85372B 85372B 85389D 9004119394
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-BZ060

F60#..GEN,IDN,MXC,PHL,SA,TH

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85373-97202

F602..MXC

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85315-BZ040

F602..MXC

 1
Common parts
82711-1E300
82711-BZ100
85371-BZ020
90041-19394

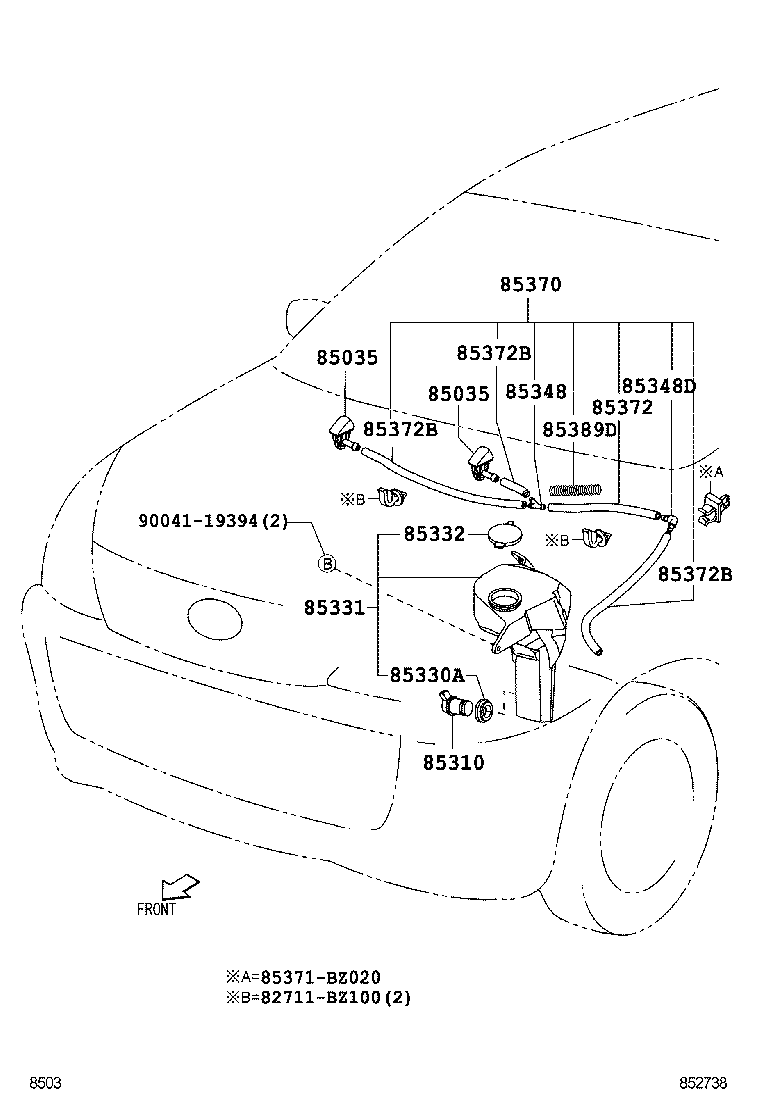

(1107- )MXC

Click highlighted areas on diagram

diagram 82711BZ100 85035 85035 85310 85330A 85331 85332 85348 85348D 85370 85371BZ020 85372 85372B 85372B 85372B 85389D 9004119394
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-BZ060

F60#..GEN,IDN,MXC,PHL,SA,TH

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85373-97202

F602..MXC

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85315-BZ040

F602..MXC

 1
Common parts
82711-BZ100
85371-BZ020
90041-19394
