F602LM-GQMFJX (2006)

Toyota Avanza

Production Oct 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

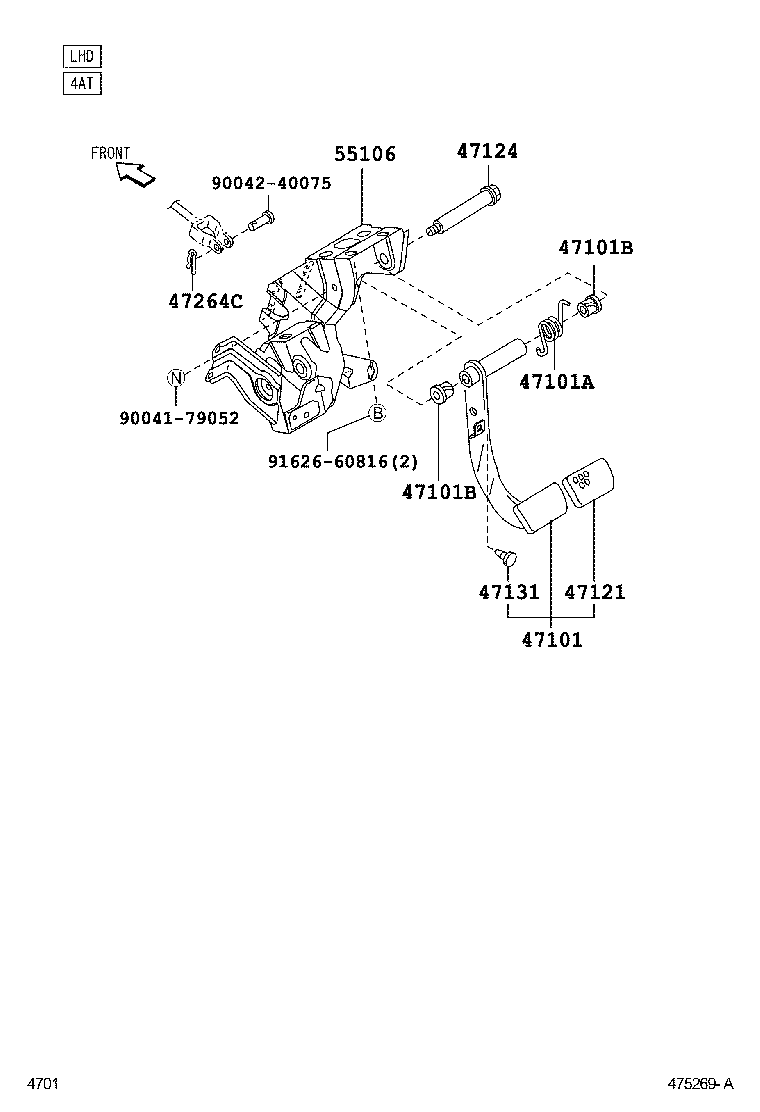

ILLUST NO. 6 OF 6(0610- )LHD..4AT

Click highlighted areas on diagram

LHD 4AT

diagram 47101 47101A 47101B 47101B 47121 47124 47131 47264C 55106 9004179052 9004240075 9162660816
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47110-BZ080

F602..LHD..4AT

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
9004A-50082

F602..LHD..4AT

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-BZ100

F602..LHD..4AT

 1
Common parts
90041-79052
90042-40075
91626-60816
