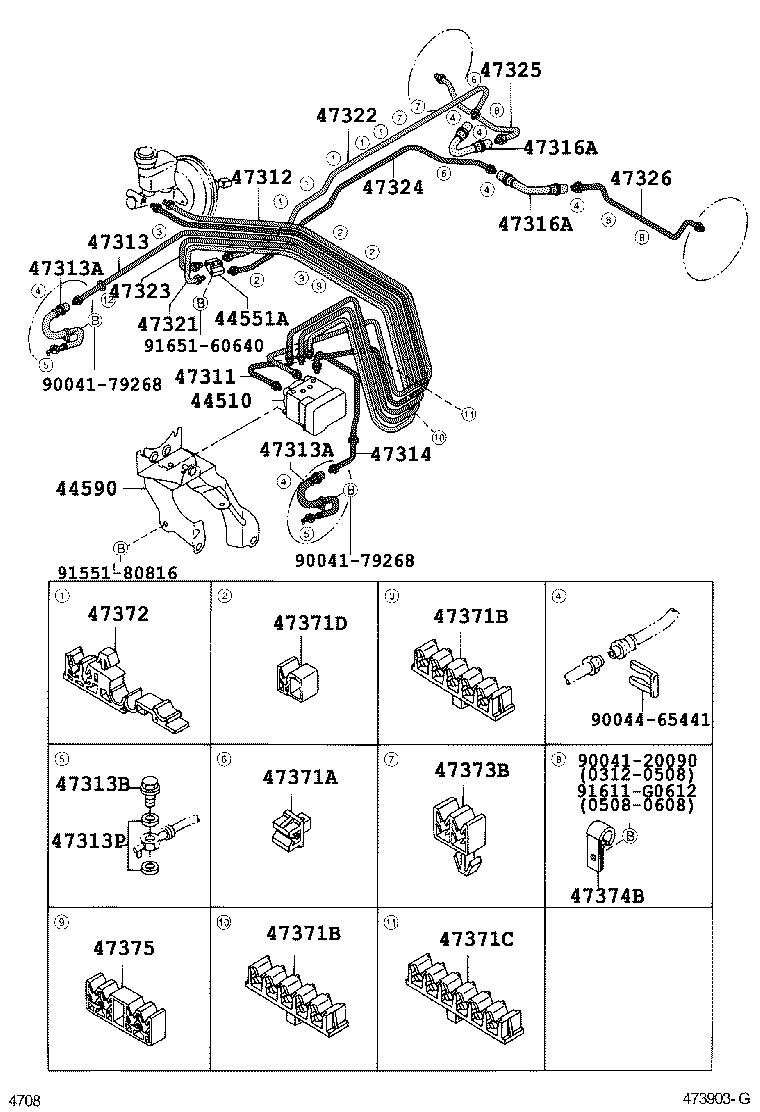

F601RM-GQMFJT (2004)
Toyota Avanza
(0312-0608)
L/ABS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 9004A-94041 |
F601 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 9004A-94041 |
F601 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90044-01079 |
F601 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-97201 |
F601 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 9004A-94040 |
F601..4AT..(BRU,IDN,TH) |
2 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90044-64299 |
F601..4AT..(BRU,IDN,TH) |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-64591 |
F601..4AT..(BRU,IDN,TH) NO.1 |
1 | ||
| 90044-64742 |
F601..4AT..(BRU,IDN,TH) NO.2 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90044-64596 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90044-64655 |
F601..4AT..(BRU,IDN,TH) |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 96221-30705 |
F601..4AT..(BRU,IDN,TH) |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90044-64668 |
F601..4AT..(BRU,IDN,TH) W/ABS |
2 | ||
| Common parts | ||||
| 90041-20089 | ||||
| 90041-20090 | ||||
| 90044-46059 | ||||
| 90044-65441 | ||||
| 90044-80353 | ||||
| 91551-80640 | ||||
| 91611-G0612 | ||||
(0404-0608)4AT..BRU,IDN,TH
W/ABS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-B0010 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 44589-B2010 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44591-BZ010 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 9004A-94041 |
F601 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 9004A-94041 |
F601 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90044-01079 |
F601 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-97201 |
F601 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 9004A-94040 |
F601..4AT..(BRU,IDN,TH) |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 9004A-94040 |
F601..4AT..(BRU,IDN,TH) |
2 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-BZ010 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-BZ010 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-BZ010 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-BZ020 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90044-64299 |
F601..4AT..(BRU,IDN,TH) |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-64591 |
F601..4AT..(BRU,IDN,TH) NO.1 |
1 | ||
| 90044-64742 |
F601..4AT..(BRU,IDN,TH) NO.2 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-64591 |
F601..4AT..(BRU,IDN,TH) NO.1 |
1 | ||
| 90044-64742 |
F601..4AT..(BRU,IDN,TH) NO.2 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90044-64596 |
F601..4AT..(BRU,IDN,TH) |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90044-64655 |
F601..4AT..(BRU,IDN,TH) |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90044-64716 |
F601..4AT..(BRU,IDN,TH) |
5 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90044-64713 |
F601..4AT..(BRU,IDN,TH) |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 96221-30705 |
F601..4AT..(BRU,IDN,TH) |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90044-64668 |
F601..4AT..(BRU,IDN,TH) W/ABS |
2 | ||
| Common parts | ||||
| 90041-20090 | ||||
| 90041-79268 | ||||
| 90044-65441 | ||||
| 91551-80816 | ||||
| 91611-G0612 | ||||
| 91651-60640 | ||||
