F601RM-GMRFJN (2006)
Toyota Avanza
Production
Aug 2006
-
Sep 9999
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0608- )5F

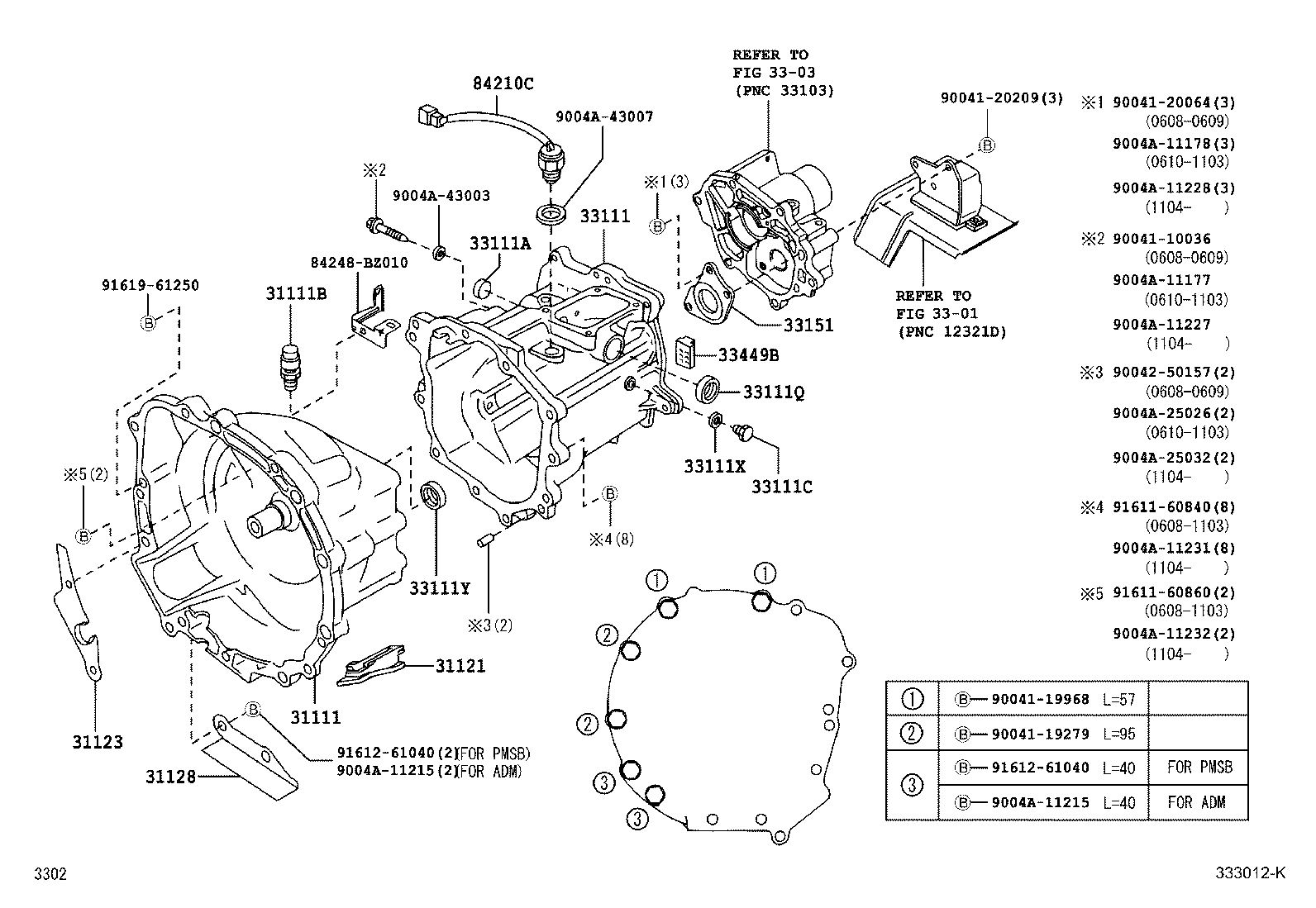

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-BZ010 |
F601..5F |
1 | ||
| 31111-BZ010 |
F601..5F |
1 | ||
| 31111B - PLUG(FOR CLUTCH HOUSING) | ||||
| 90049-15026 |
F601..5F |
1 | ||
| 9004A-93003 |
F60#..5F |
1 | ||
| 90049-15026 |
F60#..5F |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-BZ010 |
F601..5F |
1 | ||
| 31121-BZ010 |
F601..5F |
1 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31123-BZ010 |
F601..5F |
1 | ||
| 31123-BZ010 |
F601..5F |
1 | ||
| 31128 - COVER, CLUTCH HOUSING UNDER | ||||
| 31128-BZ010 |
F60#..5F |
1 | ||
| 31128-BZ010 |
F601..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-BZ040 |
F60#..5F |
1 | ||
| 33111-BZ020 |
F60#..5F |
1 | ||
| 33111-97501 |
F60#..5F |
1 | ||
| 33111-97501 |
F601..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 9004A-33016 |
F60#..5F |
1 | ||
| 90043-31025 |
F601..5F |
1 | ||
| 90043-31025 |
F60#..5F |
1 | ||
| 9004A-33012 |
F60#..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90043-41085 |
F601..5F |
1 | ||
| 9004A-34009 |
F60#..5F |
1 | ||
| 90043-41085 |
F60#..5F |
1 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 9004A-31015 |
F601..5F |
1 | ||
| 9004A-31015 |
F60#..5F |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 9004A-43007 |
F60#..5F |
2 | ||
| 9004A-43007 |
F60#..5F |
1 | ||
| 33111Y - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 9004A-31013 |
F601..5F |
1 | ||
| 9004A-31013 |
F60#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-BZ010 |
F60#..5F |
1 | ||
| 33151-97501 |
F601..5F |
1 | ||
| 33151-97501 |
F60#..5F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-87501 |
F60#..5F |
1 | ||
| 33449-87501 |
F601..5F |
1 | ||
| 33449-BZ010 |
F60#..5F |
1 | ||
| 84210C - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-B0010 |
F601..5F |
1 | ||
| 84210-BZ050 |
F60#..5F |
1 | ||
| 84210-B0010 |
F60#..5F |
1 | ||
| 84210-BZ010 |
F60#..5F |
1 | ||
| Common parts | ||||
| 84248-BZ010 | ||||
| 90041-10036 | ||||
| 90041-19279 | ||||
| 90041-19968 | ||||
| 90041-20064 | ||||
| 90041-20209 | ||||
| 90042-50157 | ||||
| 9004A-11177 | ||||
| 9004A-11178 | ||||
| 9004A-11215 | ||||
| 9004A-11227 | ||||
| 9004A-11228 | ||||
| 9004A-11231 | ||||
| 9004A-11232 | ||||
| 9004A-25026 | ||||
| 9004A-25032 | ||||
| 9004A-43003 | ||||
| 9004A-43007 | ||||
| 91611-60840 | ||||
| 91611-60860 | ||||
| 91612-61040 | ||||
| 91619-61250 | ||||
| Linked diagrams | ||||
| 3301 | ||||
| 3303 | ||||
