F601RM-GMMFJT (2004)

Toyota Avanza

Production Apr 2004 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0404-0608)WVVT..BRU,IDN,TH ; (0608- )DLX..GEN ; (0608- )E,G,J,XI..IDN,PHL

Click highlighted areas on diagram

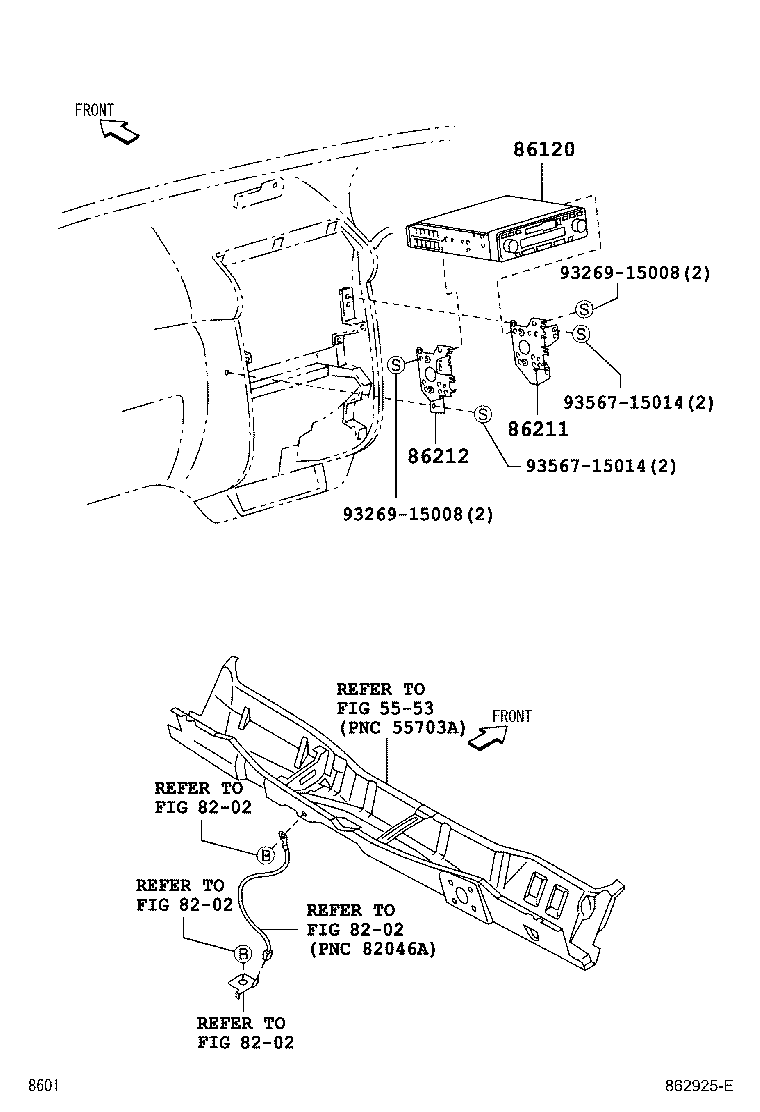

diagram 5553 8202 8202 8202 8202 86120 86211 86212 9326915008 9326915008 9356715014 9356715014
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-BZ020

F601..BRU,IDN,TH

PIONEER

 1
86211 - BRACKET, RADIO, NO.1
86211-BZ010

F601..E,G,GL,S

 1
86212 - BRACKET, RADIO, NO.2
86212-BZ010

F601..E,G,GL,S

 1
Common parts
93269-15008
93567-15014
Linked diagrams
5553
8202

(0410-0608)MA ; (0608- )S..MA ; (0608- )E,G,J..GEN,MA,PHL,TH

Click highlighted areas on diagram

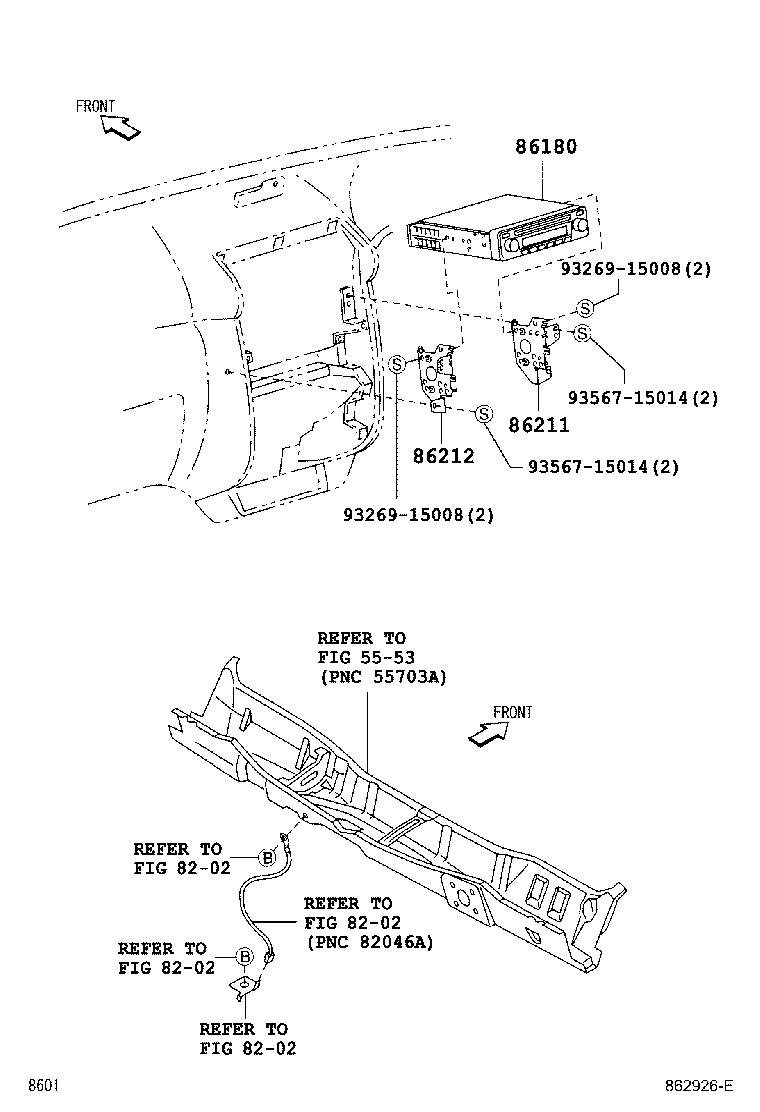

diagram 5553 8202 8202 8202 8202 86180 86211 86212 9326915008 9326915008 9356715014 9356715014
Part # Description Qty Price
86211 - BRACKET, RADIO, NO.1
86211-BZ010

F601..E,G,GL,S

 1
86212 - BRACKET, RADIO, NO.2
86212-BZ010

F601..E,G,GL,S

 1
Common parts
93269-15008
93567-15014
Linked diagrams
5553
8202

(0312-0608) ; (0608- )

Click highlighted areas on diagram

L/AUDIO

diagram 86211 86212 9356715014 9356715014
Part # Description Qty Price
86211 - BRACKET, RADIO, NO.1
86211-BZ010

F601..E,G,GL,S

 1
86212 - BRACKET, RADIO, NO.2
86212-BZ010

F601..E,G,GL,S

 1
Common parts
93567-15014
