F601RM-GMMFJJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )F601

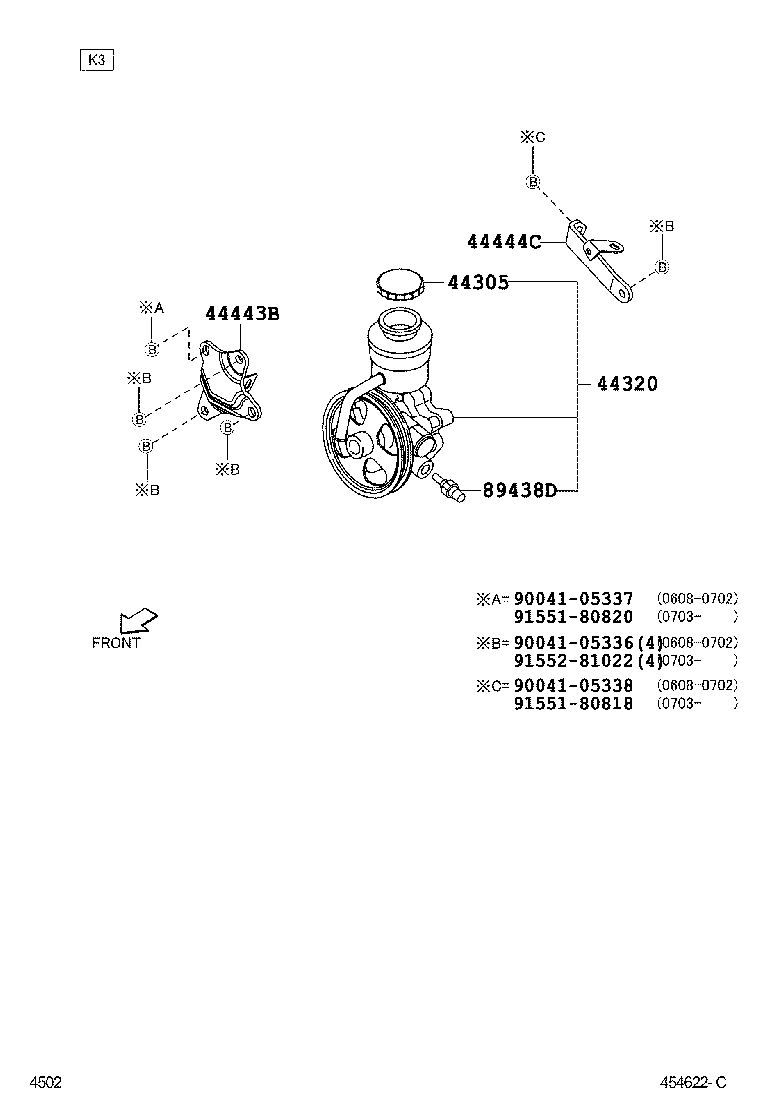

Click highlighted areas on diagram

K3

diagram 44305 44320 44443B 44444C 89438D 9004105336 9004105337 9004105338 9155180818 9155180820 9155281022
Part # Description Qty Price
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-BZ010

F601

 1
44305-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
44320 - PUMP ASSY, VANE
44310-BZ010

F601

 1
44310-BZ070

F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
44443B - BRACKET, VANE PUMP
44443-BZ010

F601

 1
44443-BZ010

F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
44444C - STAY, VANE PUMP, REAR
44444-BZ020

F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
44444-BZ010

F601

 1
89438D - SWITCH, POWER STEERING OIL PRESSURE
89438-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
Common parts
90041-05336
90041-05337
90041-05338
91551-80818
91551-80820
91552-81022
