F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

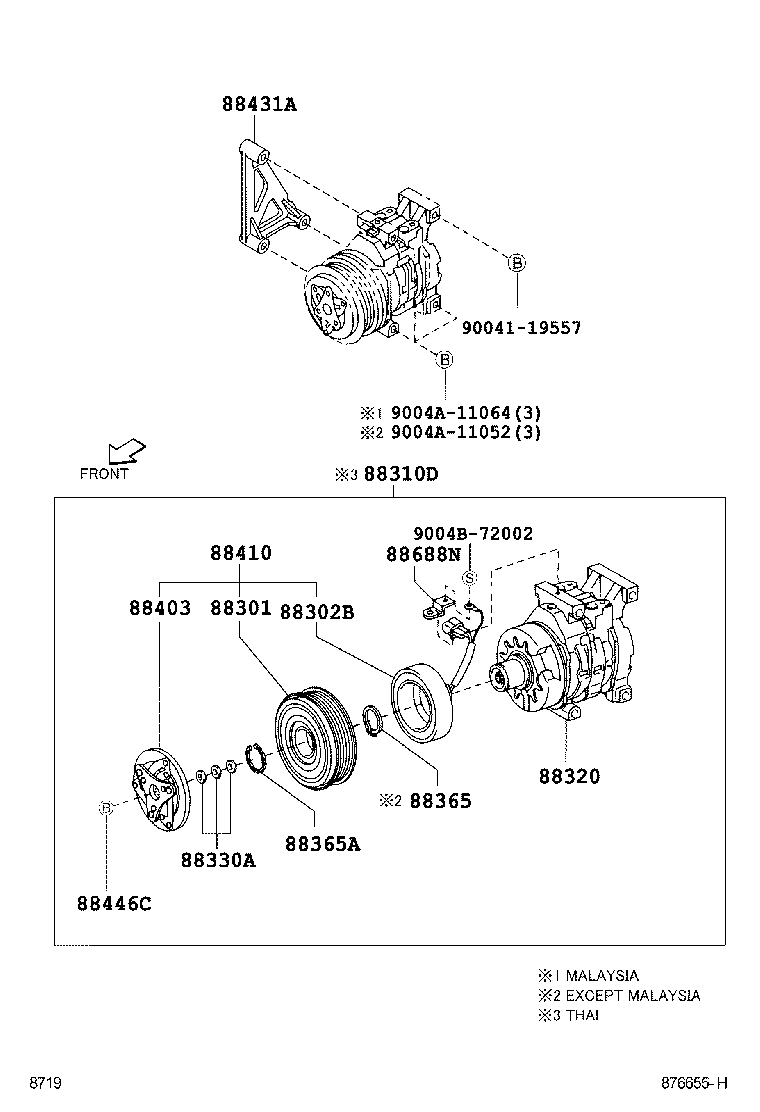

Click highlighted areas on diagram

diagram 88301 88302B 88310D 88320 88330A 88365 88365A 88403 88410 88431A 88446C 88688N 9004119557 9004A11052 9004A11064 9004B72002
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-BZ010

F601

 1
88302B - STATOR, MAGNET CLUTCH
88411-BZ010

F601

 1
88320 - COMPRESSOR ASSY, COOLER
88320-BZ020

F601

 1
88330A - WASHER (FOR MAGNET CLUTCH)
9004B-93002

F601

T=0.3

 1
9004B-93003

F601

T=0.5

 1
9004B-93001

F601

T=0.1

 1
88365 - RING, SNAP
88365-BZ020

F601..BRU,IDN,TH

 1
88365A - RING, SNAP (FOR COMPRESSOR)
88365-BZ010

F601..BRU,IDN,TH

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-BZ010

F601

 1
88410 - CLUTCH ASSY, MAGNET
88410-BZ020

F601

 1
88431A - BRACKET, COMPRESSOR MOUNTING, NO.2
81218-BZ010

F601..BRU,IDN,TH

 1
88446C - BOLT, MAGNET CLUTCH SETTING
88446-BZ010

F601

 1
88688N - BRACKET, COOLER
9004B-07004

F601

 1
Common parts
90041-19557
9004A-11052
9004A-11064
9004B-72002
