F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)WVVT..BRU,IDN,MA

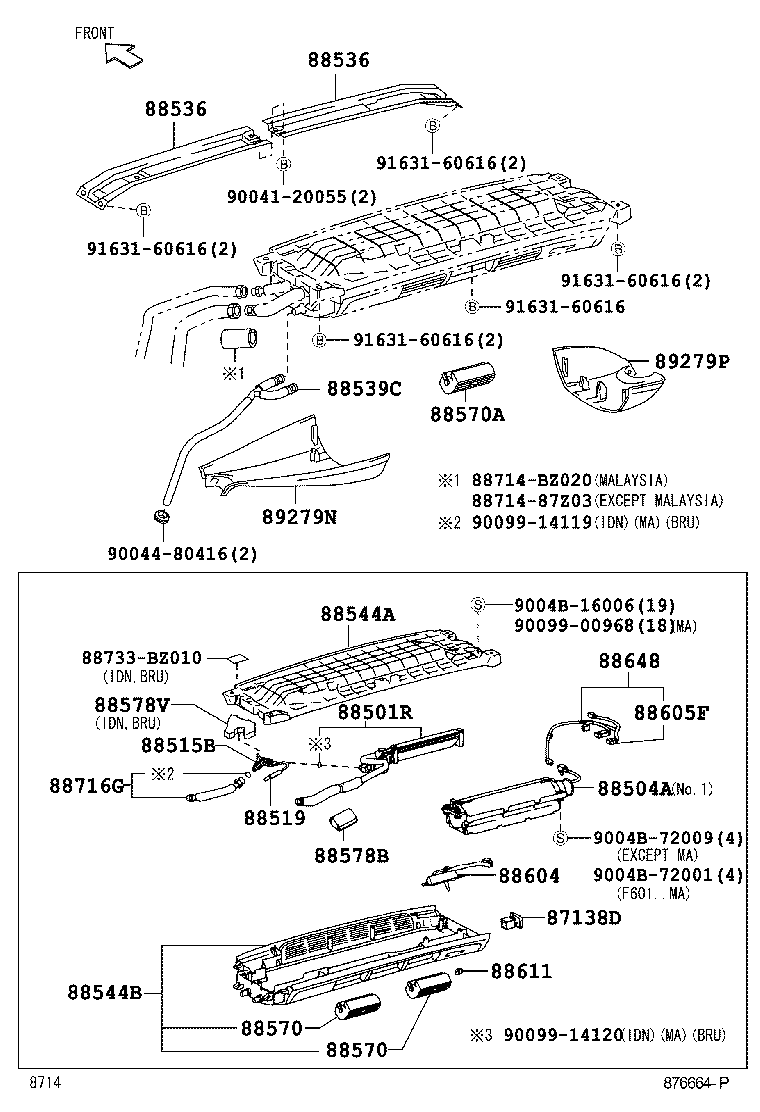

Click highlighted areas on diagram

DUAL AIR-CON

diagram 87138D 88501R 88504A 88515B 88519 88536 88536 88539C 88544A 88544B 88570 88570 88570A 88578B 88578V 88604 88605F 88611 88648 8871487Z03 88714BZ020 88716G 88733BZ010 89279N 89279P 9004120055 9004480416 9004B16006 9004B72001 9004B72009 9009900968 9009914119 9009914120 9163160616 9163160616 9163160616 9163160616 9163160616
Part # Description Qty Price
87138D - RESISTOR, BLOWER (REAR)
88635-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 1
88519 - HOLDER, REMOTE BULB
88519-87701

F601..E..TH;F601..G,GL,LIMD,S

 1
88536 - BRACKET, COOLING UNIT, NO.1
88688-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 2
88536 - BRACKET, COOLING UNIT, NO.1
88688-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 2
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-BZ020

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 2
88544A - CASE, COOLER BLOWER, UPPER
88502-BZ040

F601..E..TH;F601..G,GL,LIMD,S

 1
88544B - CASE, COOLER BLOWER, LOWER
88502-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 1
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
87125-BZ010

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 2
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
87125-BZ010

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 2
88570A - GRILLE ASSY, AIR OUTLET
87125-BZ010

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-12100

F601..E..TH;F601..G,GL,LIMD,S

 1
88604 - PANEL SUB-ASSY, COOLER CONTROL
88604-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 1
88611 - KNOB, COOLER CONTROL SWITCH
88611-BZ070

F601..E..TH;F601..G,GL,LIMD,S

 1
88648 - WIRING, COOLER, NO.1
88605-BZ040

F601..E..TH;F601..G,GL,LIMD,S

 1
88716G - PIPE, COOLER REFRIGERANT LIQUID, G
9004B-91001

F601..E..TH;F601..G,GL,LIMD,S

 1
89279N - COVER
89279-BZ011B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

LT.GRAY,TRIM1#

 1
89279-BZ010

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 1
89279P - COVER
89279-BZ020

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 1
89279-BZ021B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

LT.GRAY,TRIM1#

 1
Common parts
88714-87Z03
88714-BZ020
88733-BZ010
90041-20055
90044-80416
9004B-16006
9004B-72001
9004B-72009
90099-00968
90099-14119
90099-14120
91631-60616
