F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)E..TH ; (0312-0608)G,GL,LIMD,S

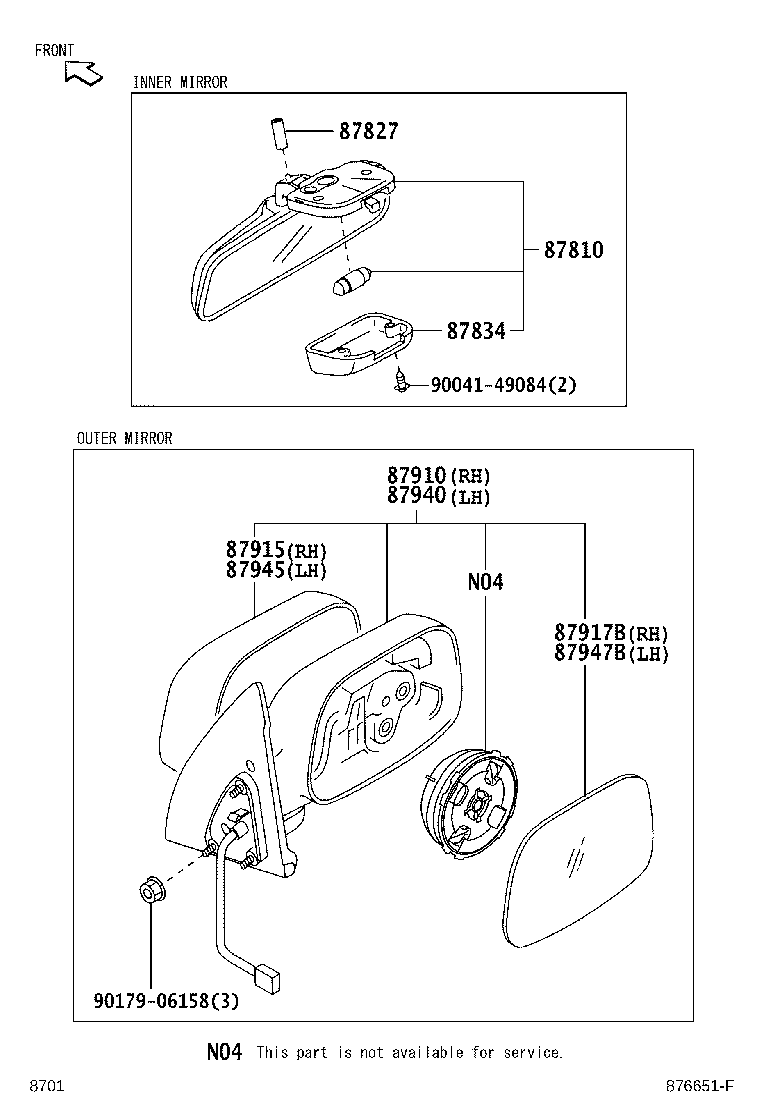

Click highlighted areas on diagram

diagram 87810 87827 87834 87910 87915 87917B 87940 87945 87947B 9004149084 9017906158
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-BZ020

F601

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-BZ010

F601

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-87Z02

F601

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-BZ070

F601..E..TH;F601..G,GL,LIMD,S

MATERIAL

 1
87915 - COVER, OUTER MIRROR, RH
87915-BZ030F0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

CHAMPAGNE ME.,583

 1
87915-BZ030J0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

DK.BLUE MC.,8N8

 1
87915-BZ030B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

SILVER M.M.,1E7

 1
87915-BZ070

F601..E..TH;F601..G,GL,LIMD,S

MATERIAL

 1
87915-BZ030C0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

BLACK MC.,209

 1
87917B - MIRROR, OUTER REAR VIEW, RH
87917-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-BZ070

F601..E..TH;F601..G,GL,LIMD,S

MATERIAL

 1
87945 - COVER, OUTER MIRROR, LH
87945-BZ030J0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

DK.BLUE MC.,8N8

 1
87945-BZ030B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

SILVER M.M.,1E7

 1
87945-BZ070

F601..E..TH;F601..G,GL,LIMD,S

MATERIAL

 1
87945-BZ030C0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

BLACK MC.,209

 1
87945-BZ030F0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

CHAMPAGNE ME.,583

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87947-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 1
Common parts
90041-49084
90179-06158
