F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608) ; (0608- )

Click highlighted areas on diagram

DOUBLE

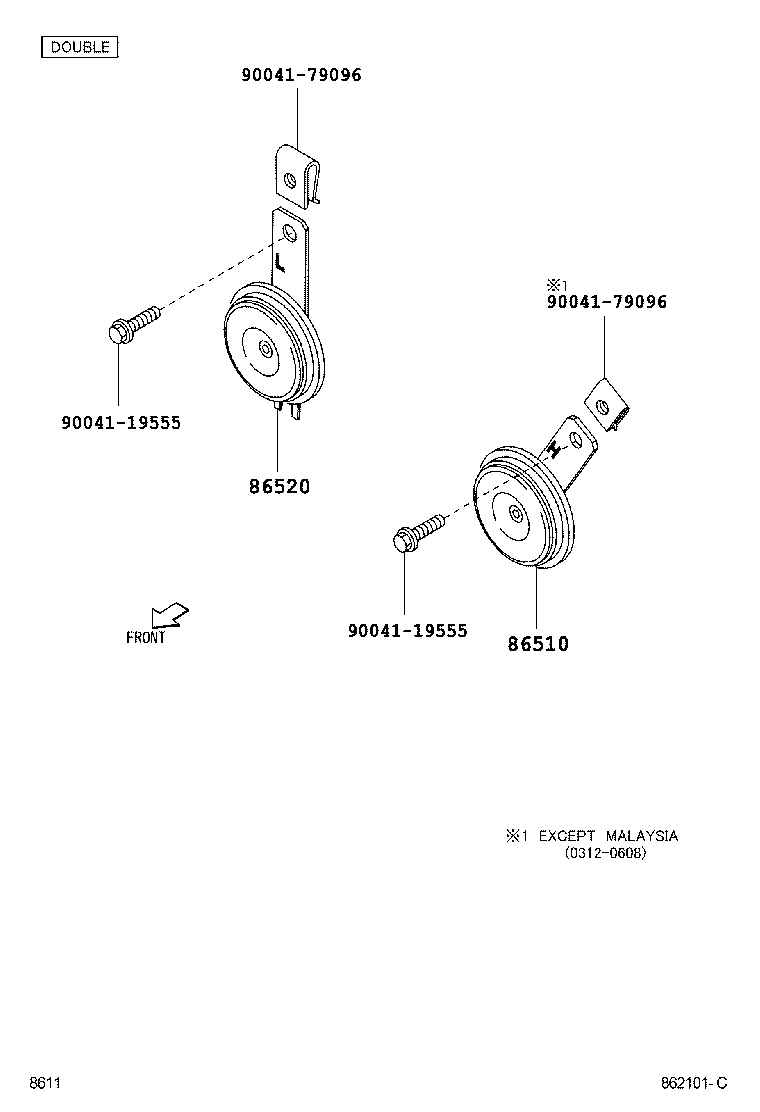

diagram 86510 86520 9004119555 9004119555 9004179096 9004179096
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-87Z07

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 1
86520 - HORN ASSY, LOW PITCHED
86520-87Z02

F601..BRU,IDN,TH

 1
Common parts
90041-19555
90041-79096
