F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)BRU,IDN,TH

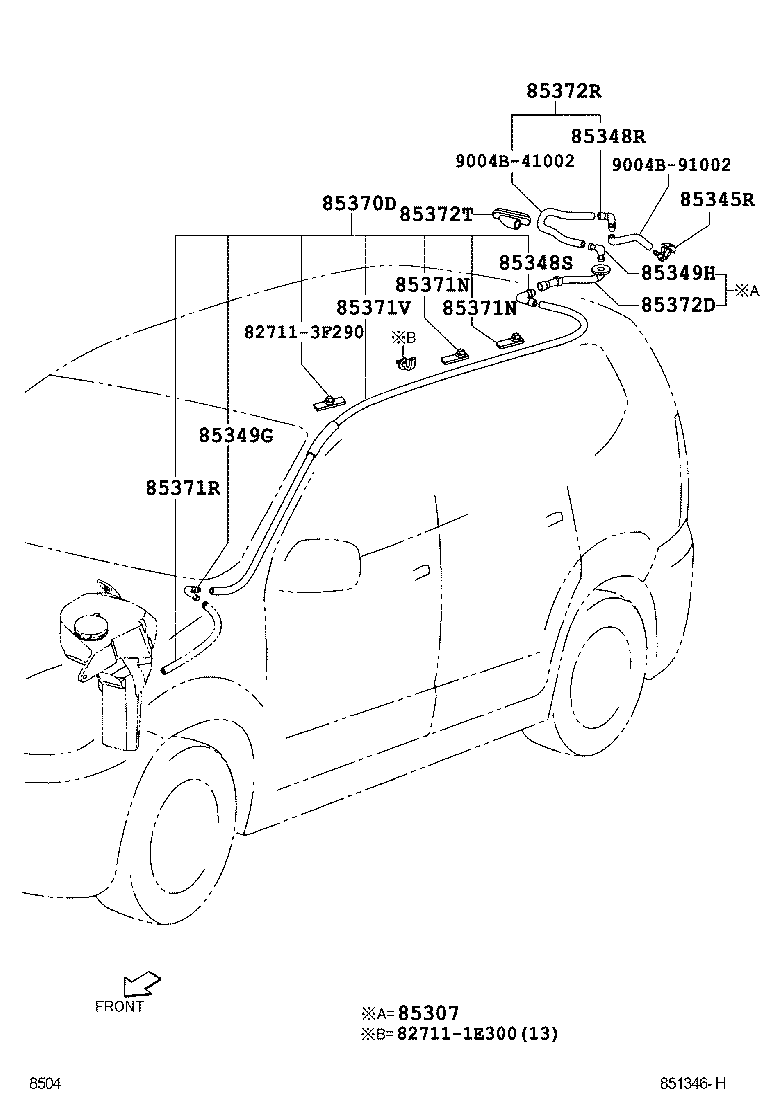

Click highlighted areas on diagram

diagram 827111E300 827113F290 85307 85345R 85348R 85348S 85349G 85349H 85370D 85371N 85371N 85371R 85371V 85372D 85372R 85372T 9004B41002 9004B91002
Part # Description Qty Price
85307 - GROMMET SUB-ASSY, WASHER
85307-BZ010

F601..BRU,IDN,TH

 1
85345R - NOZZLE, REAR WASHER
9004B-49001

F601

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85317-BZ010

F601..BRU,IDN,TH

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85317-BZ010

F601..BRU,IDN,TH

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

F601..BRU,IDN,TH

 1
85370D - HOSE ASSY, REAR WASHER, NO.1
85370-BZ010

F601..BRU,IDN,TH

 1
85371N - CLAMP, REAR WASHER HOSE
82711-52090

F601..BRU,IDN,TH

 2
85371N - CLAMP, REAR WASHER HOSE
82711-52090

F601..BRU,IDN,TH

 2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
9004B-44001

F601..BRU,IDN,TH

 1
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
9004B-41001

F601..BRU,IDN,TH

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85370-BZ020

F601..BRU,IDN,TH

L=170

 1
85372T - GROMMET, WASHER
85373-BZ010

F601

 1
Common parts
82711-1E300
82711-3F290
9004B-41002
9004B-91002
