F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)BRU,IDN,TH

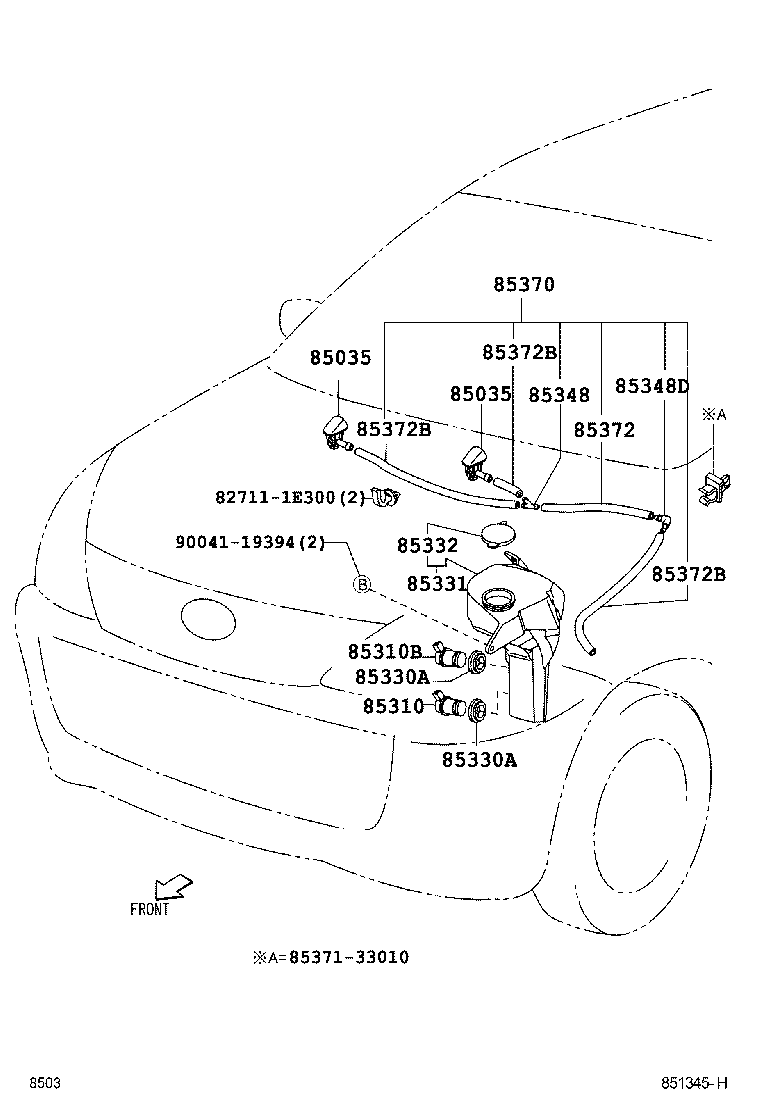

Click highlighted areas on diagram

diagram 827111E300 85035 85035 85310 85310B 85330A 85330A 85331 85332 85348 85348D 85370 8537133010 85372 85372B 85372B 85372B 9004119394
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-BZ010

F601..BRU,IDN,TH

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-BZ010

F601..BRU,IDN,TH

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-BZ020

F601

 1
85310B - MOTOR & PUMP ASSY, WINDSHIELD WASHER
85330-BZ010

F601

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85373-97202

F601

 2
85330A - BUSH, WINDSHIELD WASHER JAR
85373-97202

F601

 2
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85315-BZ010

F601

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-87401

F601

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85327-BZ010

F601..BRU,IDN,TH

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85317-BZ010

F601..BRU,IDN,TH

 1
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-BZ040

F601..BRU,IDN,TH

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
9004B-58001

F601..BRU,IDN,TH

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85319-BZ040

F601..BRU,IDN,TH

L=420

 1
85359-BZ040

F601..BRU,IDN,TH

L=560

 1
85329-BZ040

F601..BRU,IDN,TH

L=50

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85319-BZ040

F601..BRU,IDN,TH

L=420

 1
85359-BZ040

F601..BRU,IDN,TH

L=560

 1
85329-BZ040

F601..BRU,IDN,TH

L=50

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85319-BZ040

F601..BRU,IDN,TH

L=420

 1
85359-BZ040

F601..BRU,IDN,TH

L=560

 1
85329-BZ040

F601..BRU,IDN,TH

L=50

 1
Common parts
82711-1E300
85371-33010
90041-19394
