F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

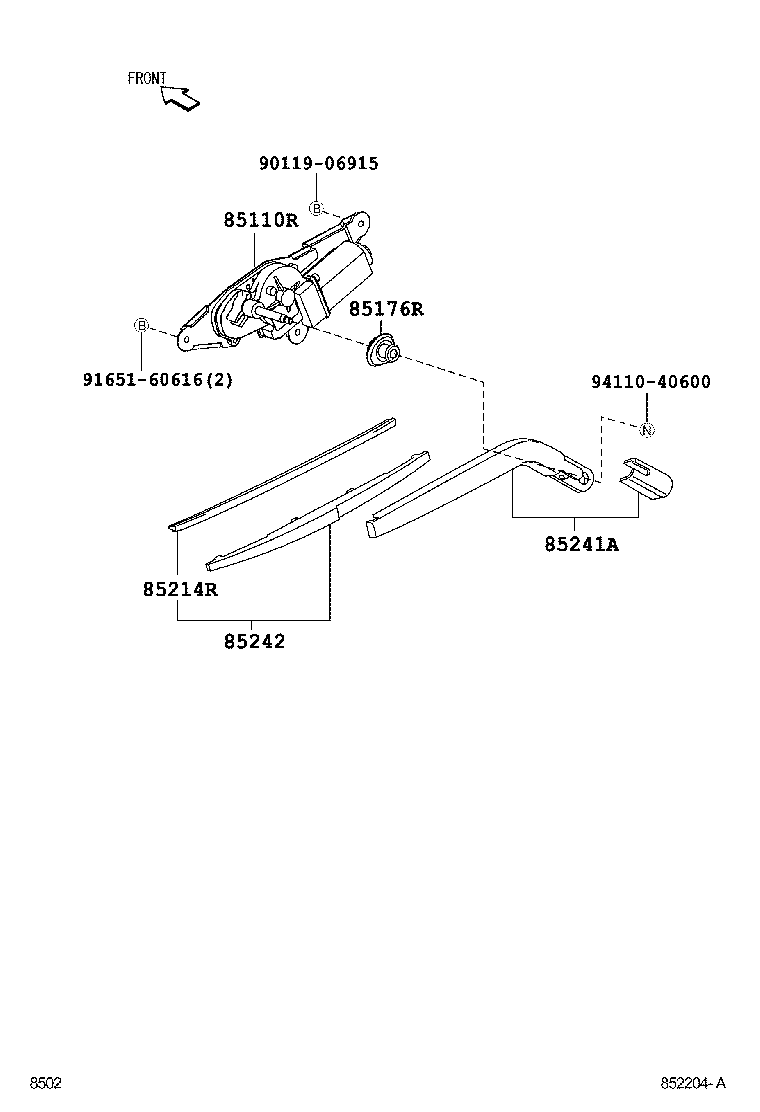

Click highlighted areas on diagram

diagram 85110R 85176R 85214R 85241A 85242 9011906915 9165160616 9411040600
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-BZ010

F601..BRU,IDN,TH

 1
85176R - CAP, REAR WIPER LINK
85176-BZ010

F601..BRU,IDN,TH

 1
85214R - RUBBER, REAR WIPER
85243-BZ020

F601..BRU,IDN,TH

 1
85241A - ARM, REAR WIPER
85241-BZ020

F601..BRU,IDN,TH

 1
85242 - BLADE, RR WIPER
85242-BZ010

F601..BRU,IDN,TH

 1
Common parts
90119-06915
91651-60616
94110-40600
