F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

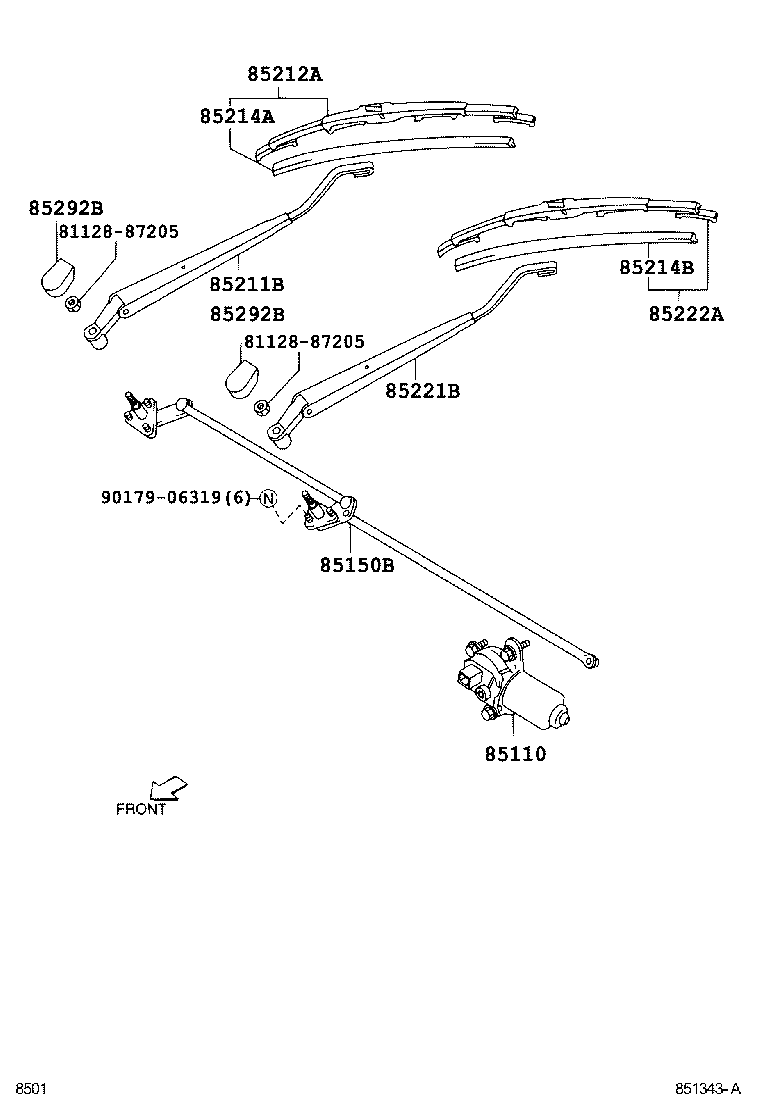

Click highlighted areas on diagram

diagram 8112887205 8112887205 85110 85150B 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 9017906319
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-BZ010

F601..BRU,IDN,TH

 1
85150B - LINK ASSY, WIPER
85150-BZ010

F601..BRU,IDN,TH

 1
85211B - ARM, FRONT WIPER, RH
85211-BZ010

F601..BRU,IDN,TH

 1
85212A - BLADE, FR WIPER, RH
85212-BZ010

F601..BRU,IDN,TH

 1
85214A - RUBBER, WIPER, RH
85214-BZ020

F601..BRU,IDN,TH

 1
85214B - RUBBER, WIPER, LH
85214-BZ010

F601..BRU,IDN,TH

 1
85221B - ARM, FRONT WIPER, LH
85221-BZ010

F601..BRU,IDN,TH

 1
85222A - BLADE, FR WIPER, LH
85222-BZ010

F601..BRU,IDN,TH

 1
85292B - CAP, FRONT WIPER ARM HEAD
85192-12800

F601

 2
85292B - CAP, FRONT WIPER ARM HEAD
85192-12800

F601

 2
Common parts
81128-87205
90179-06319
