F601RM-GMMFJB (2005)
Toyota Avanza
(0312-0608)

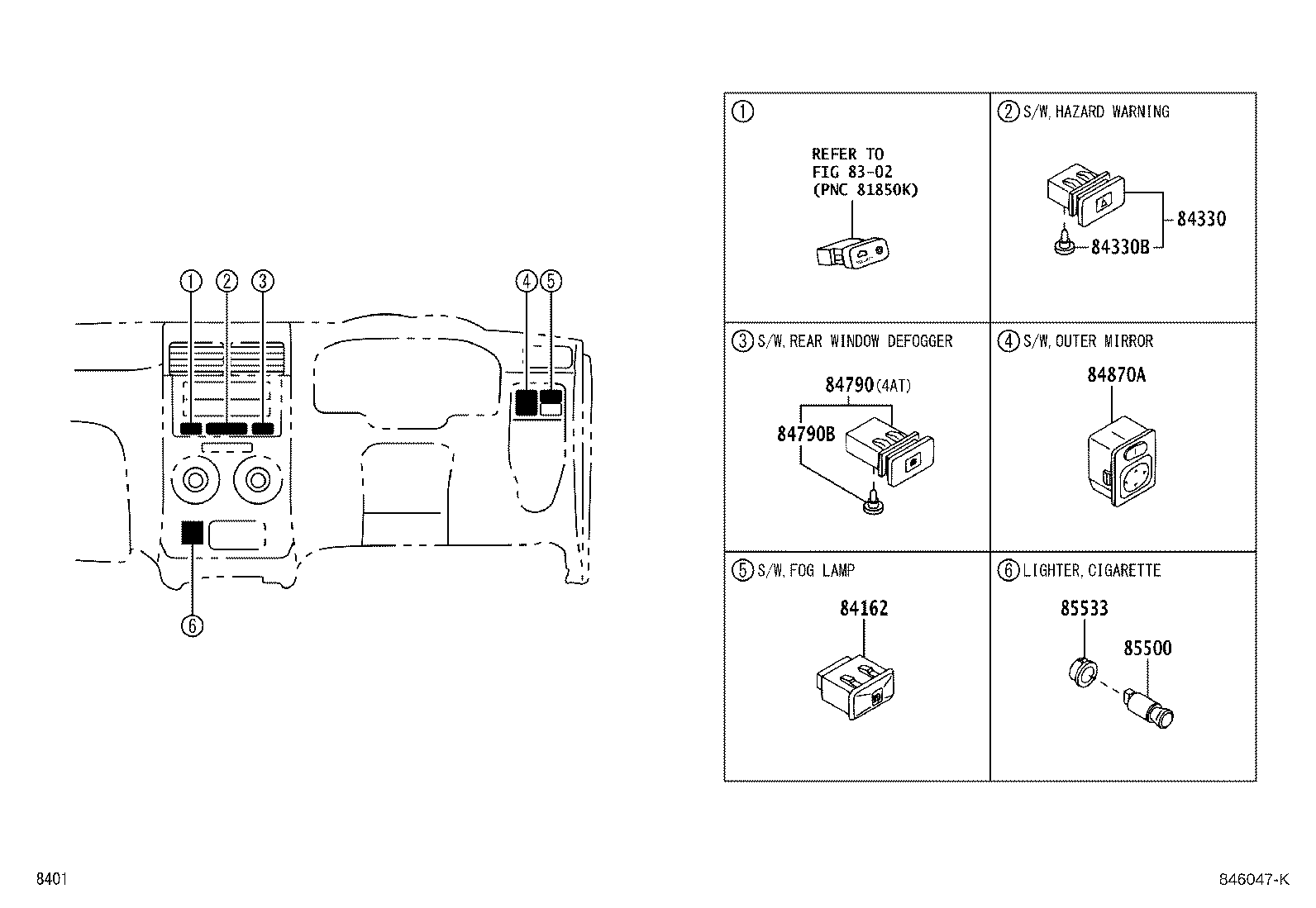

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-B0010 |
F601..G,LIMD,S;F601..4AT..(E,GL) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-B0010 |
F601 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-B5010 |
F601 14V 0.91W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-97402 |
F601..E..TH;F601..G,GL,LIMD,S |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-87505 |
F601 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-87701 |
F601 |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||

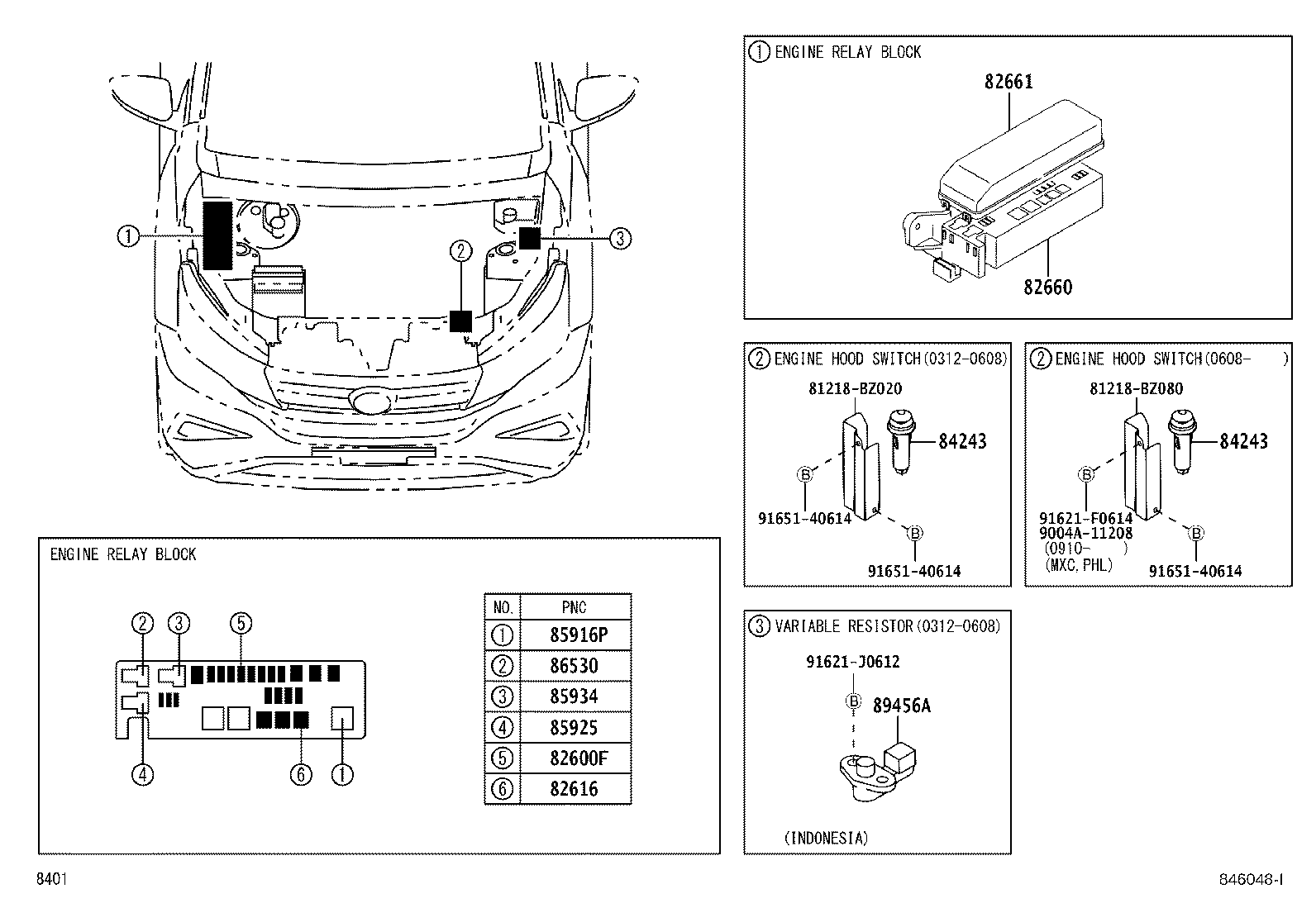

(0312-0608) ; (0608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40056 |
F601..S 10A |
7 | ||
| 90049-40055 |
F601..(E,GL,LIMD)..(BRU,TH) 7.5A |
2 | ||
| 90049-40056 |
F601..5F..TH;F601..(E,G,GL)..(BRU,IDN,MA) 10A |
7 | ||
| 82616 - PULLER, FUSE | ||||
| 90049-40048 |
F601..S 40A |
3 | ||
| 90049-40048 |
F601..5F..TH;F601..(E,G,GL)..(BRU,IDN,MA) 40A |
3 | ||
| 90049-40049 |
F601..S 30A |
1 | ||
| 90049-40049 |
F601..5F..TH;F601..(E,G,GL)..(BRU,IDN,MA) 30A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-BZ010 |
F601..5F..TH;F601..BRU,IDN,MA |
1 | ||
| 82660-BZ010 |
F601..S |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-BZ010 |
F601 |
1 | ||
| 82661-BZ011 |
F601 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 9004A-98011 |
F601..BRU,IDN,TH |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 9004A-98006 |
F601..BRU,IDN,TH |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 9004A-98006 |
F601..BRU,IDN,TH |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 9004A-98006 |
F601..BRU,IDN,TH |
1 | ||
| Common parts | ||||
| 81218-BZ020 | ||||
| 81218-BZ080 | ||||
| 9004A-11208 | ||||
| 91621-F0614 | ||||
| 91621-J0612 | ||||
| 91651-40614 | ||||

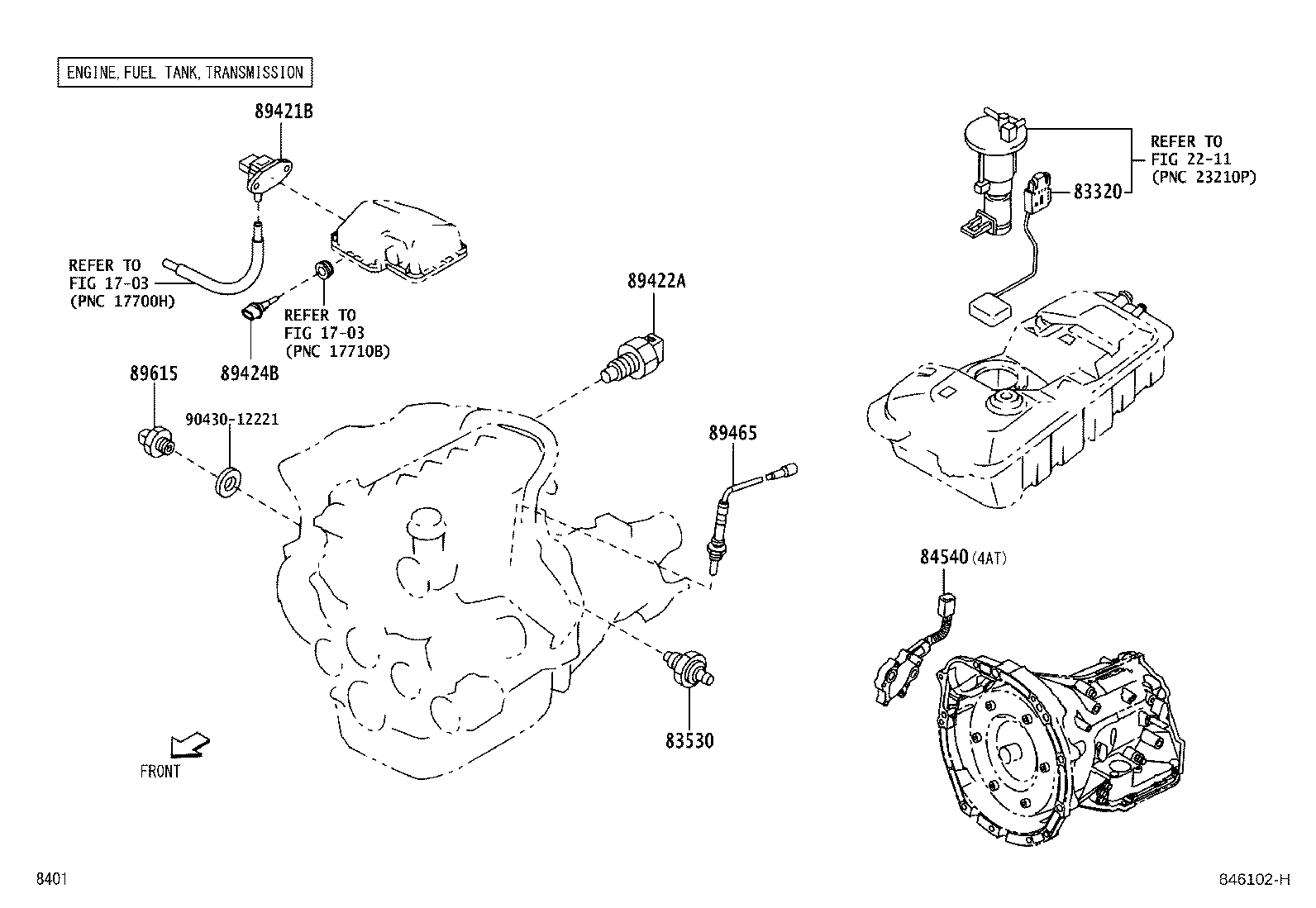

(0312-0608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83301-BZ010 |
F601..BRU,IDN,TH |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-97401 |
F601 |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89421-BZ010 |
F601..BRU,IDN,TH |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-BZ010 |
F601..BRU,IDN,TH |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-BZ020 |
F601..BRU,IDN,TH |
1 | ||
| Common parts | ||||
| 90430-12221 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 2211 | ||||

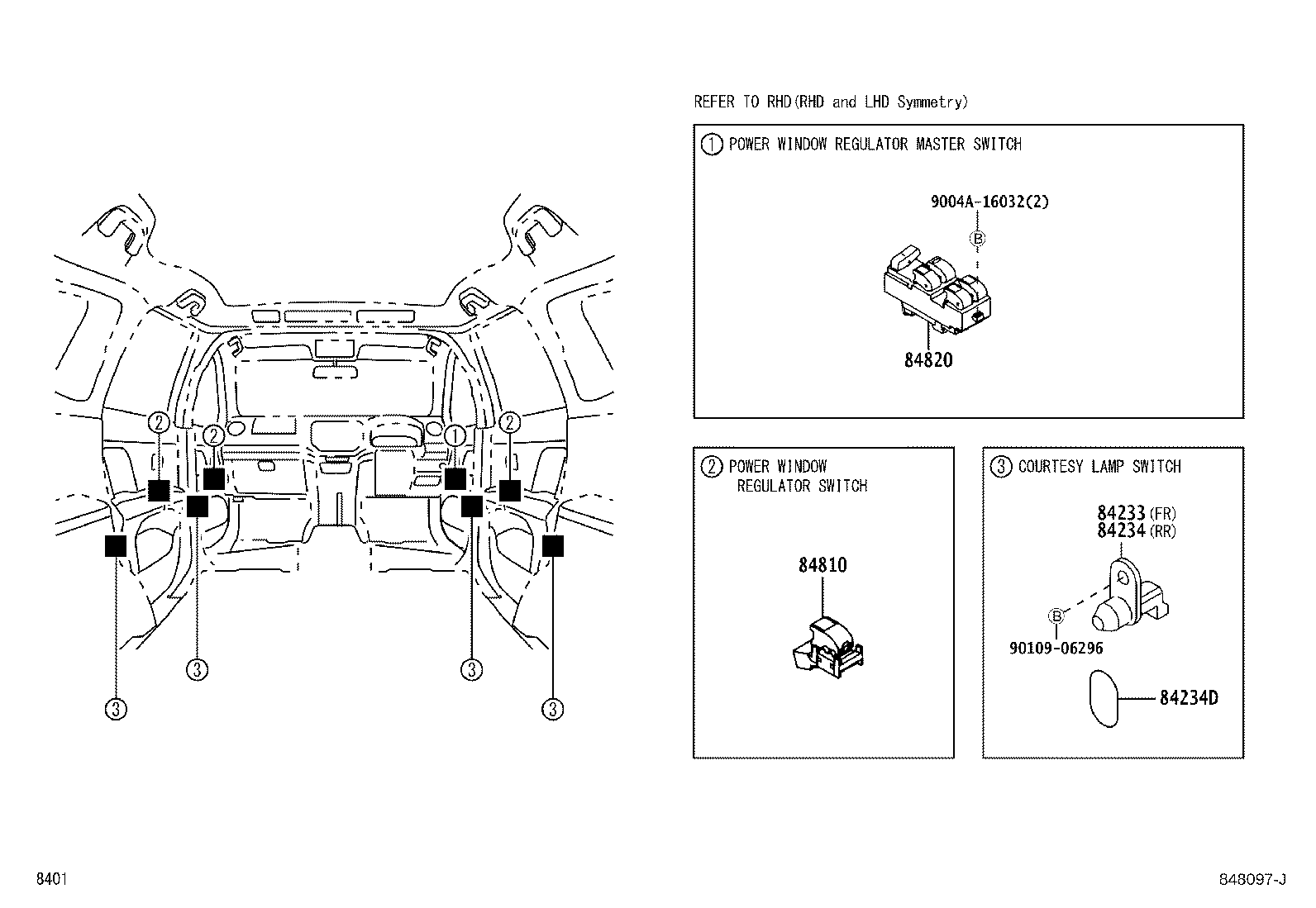

(0312-0608) ; (0608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-BZ010 |
F601..BRU,IDN,TH |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-BZ010 |
F601..BRU,IDN,TH |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-87104 |
F601 |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-B0010 |
F601 |
1 | ||
| Common parts | ||||
| 9004A-16032 | ||||
| 90109-06296 | ||||

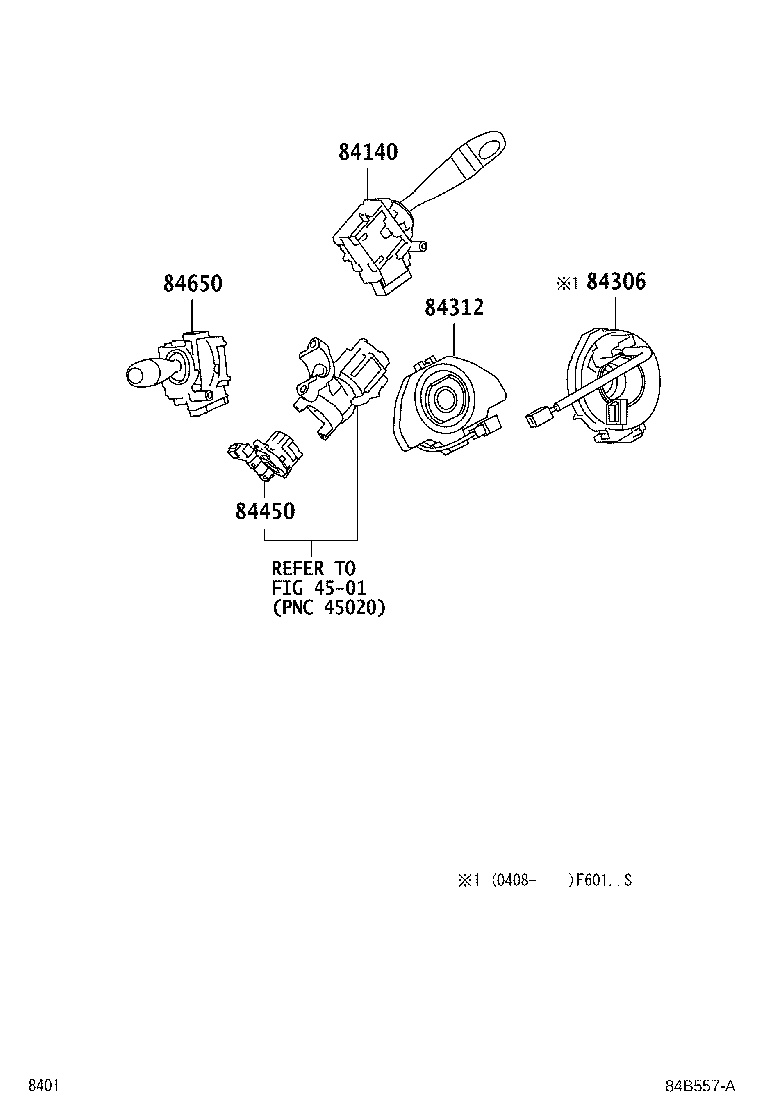

(0312-0608) ; (0608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-BZ010 |
F601..BRU,IDN,TH |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-BZ010 |
F601..E,G,GL,LIMD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
F601 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-BZ020 |
F601 |
1 | ||
| Linked diagrams | ||||
| 4501 | ||||

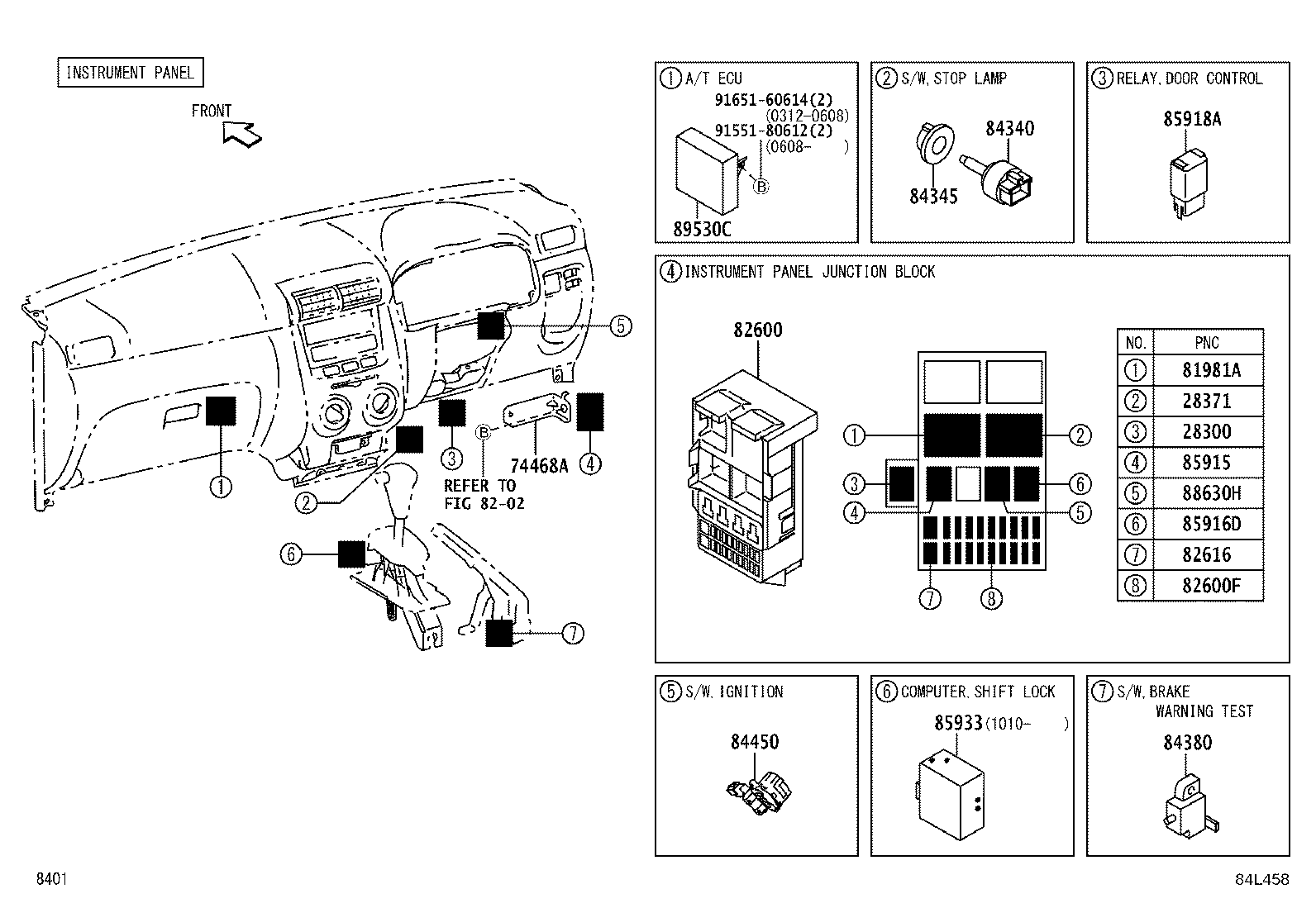

(0312-0608) ; (0608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 9004A-98010 |
K3#..F601..BRU,IDN,TH |
1 | ||
| 74468A - BRACKET, RELAY BLOCK | ||||
| 74468-BZ010 |
F601..S..TH;F601..5F..TH;F601..BRU,IDN,MA |
1 | ||
| 81981A - FLASHER, TURN SIGNAL | ||||
| 81980-BZ010 |
F601..BRU,IDN,TH |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82660-BZ020 |
F601..S;F601..5F..TH |
1 | ||
| 82660-BZ020 |
F601..BRU,IDN,MA |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40056 |
F601..S 10A |
7 | ||
| 90049-40055 |
F601..(E,GL,LIMD)..(BRU,TH) 7.5A |
2 | ||
| 90049-40056 |
F601..5F..TH;F601..(E,G,GL)..(BRU,IDN,MA) 10A |
7 | ||
| 82616 - PULLER, FUSE | ||||
| 90049-40048 |
F601..S 40A |
3 | ||
| 90049-40048 |
F601..5F..TH;F601..(E,G,GL)..(BRU,IDN,MA) 40A |
3 | ||
| 90049-40049 |
F601..S 30A |
1 | ||
| 90049-40049 |
F601..5F..TH;F601..(E,G,GL)..(BRU,IDN,MA) 30A |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-BZ010 |
F601..BRU,IDN,TH |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-BZ010 |
F601..BRU,IDN,TH |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-87Z06 |
F601 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
F601 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 9004A-98006 |
F601..BRU,IDN,TH |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 9004A-98006 |
F601..4AT..E;F601..G,LIMD,S |
1 | ||
| 85918A - RELAY, DOOR CONTROL | ||||
| 85918-BZ010 |
F601..BRU,IDN,TH |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 9004A-98006 |
F601..BRU,IDN,TH |
1 | ||
| Common parts | ||||
| 91551-80612 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8202 | ||||
