F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0608)5F

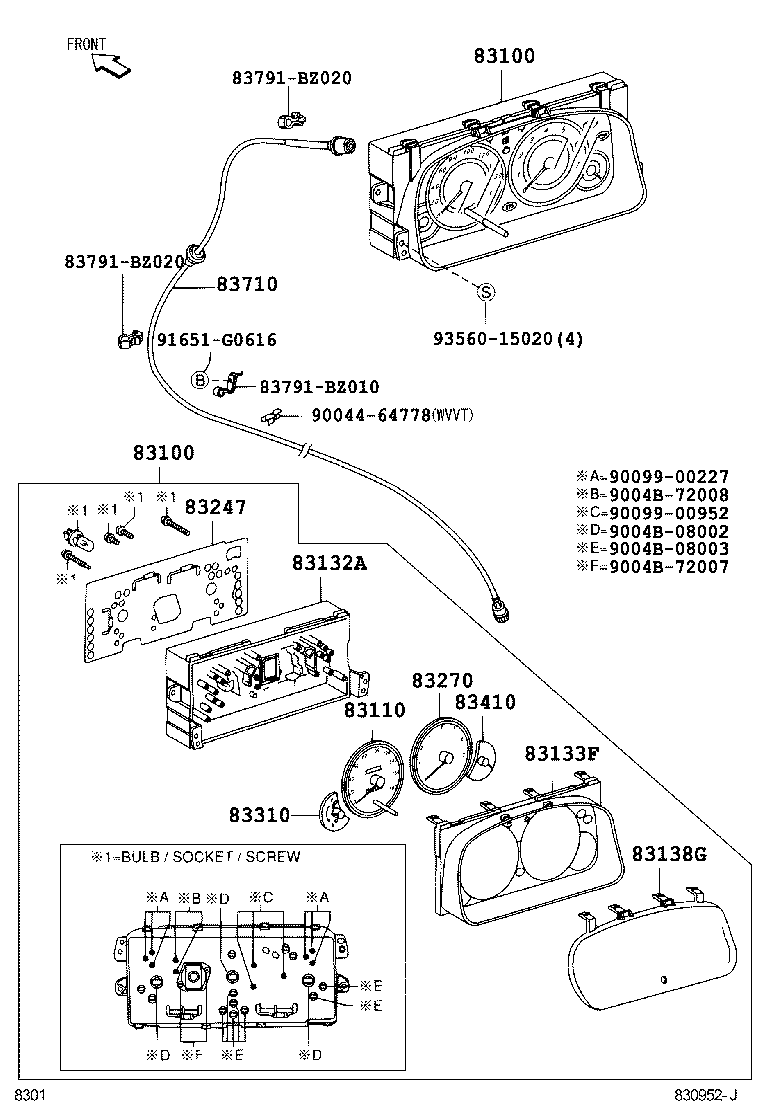

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-BZ010 |
F601..5F..(BRU,IDN,TH) |
1 | ||
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-BZ010 |
F601..5F..(BRU,IDN,TH) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-BZ010 |
F601..5F |
1 | ||
| 83132A - CASE, METER | ||||
| 83841-BZ010 |
F601..5F |
1 | ||
| 83133F - PLATE, METER | ||||
| 83811-BZ010 |
F601..5F |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-BZ010 |
F601..5F |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-BZ010 |
F601..5F..(BRU,IDN,TH) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83881-BZ010 |
F601..5F |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83882-BZ010 |
F601..5F |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-BZ010 |
F601..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-BZ010 |
F601..5F |
1 | ||
| Common parts | ||||
| 83791-BZ010 | ||||
| 83791-BZ020 | ||||
| 90044-64778 | ||||
| 9004B-08002 | ||||
| 9004B-08003 | ||||
| 9004B-72007 | ||||
| 9004B-72008 | ||||
| 90099-00227 | ||||
| 90099-00952 | ||||
| 91651-G0616 | ||||
| 93560-15020 | ||||
