F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

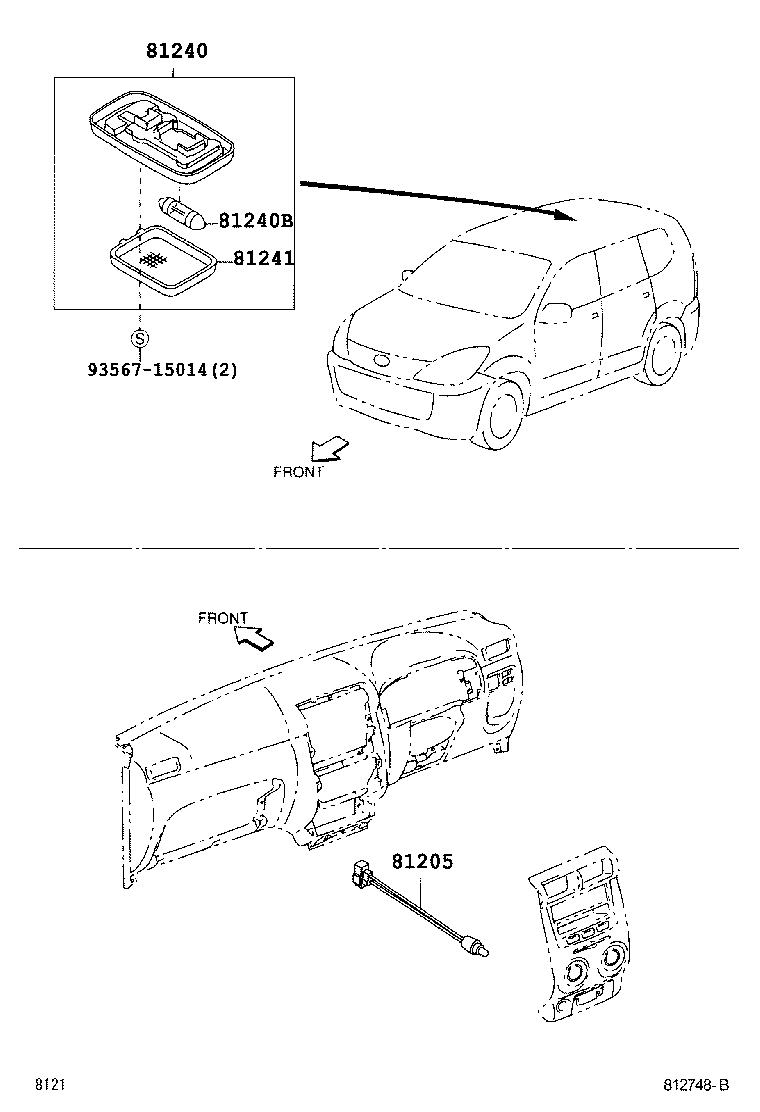

Click highlighted areas on diagram

diagram 81205 81240 81240B 81241 9356715014
Part # Description Qty Price
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81205-97201

F601..E..TH;F601..G,GL,LIMD,S

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-BZ010B0

F601

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
9004B-08001

F601

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-BZ010

F601

 1
Common parts
93567-15014
