F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0608)

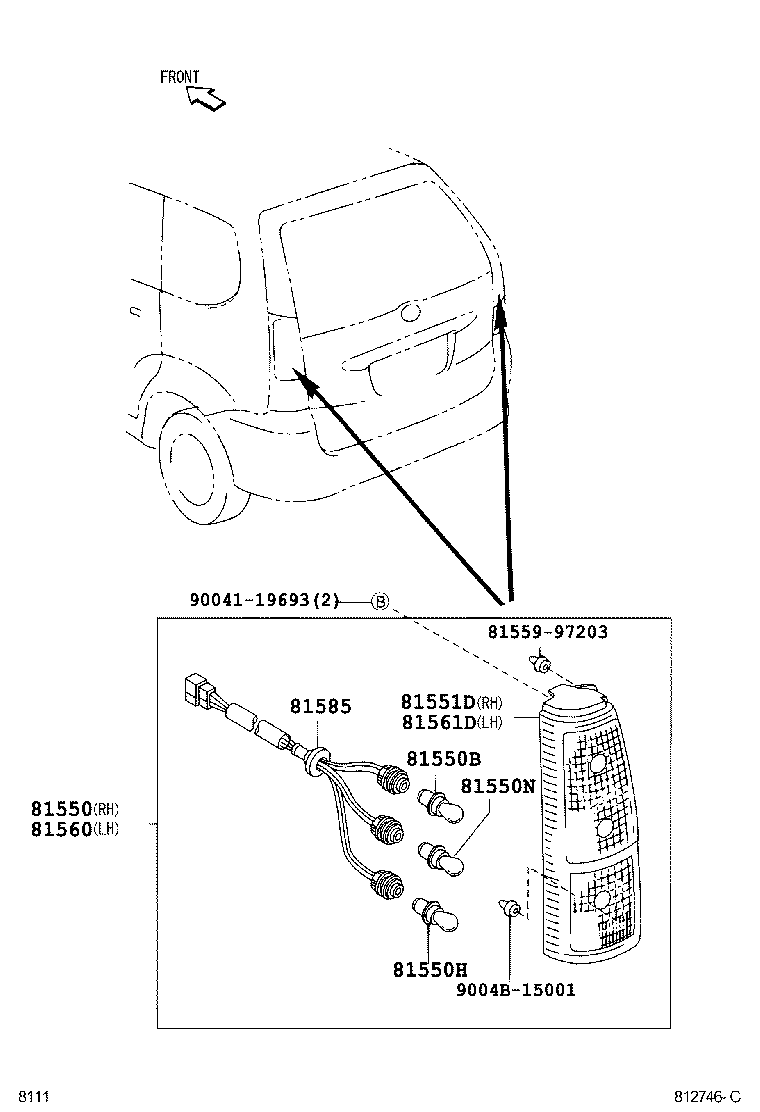

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-BZ010 |
F601 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90049-51148 |
F601 12V 21W,AMBER |
2 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 99132-21210 |
F601 |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 99132-11210 |
F601 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-BZ010 |
F601 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-BZ010 |
F601 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-BZ010 |
F601 |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81555-BZ010 |
F601 |
2 | ||
| Common parts | ||||
| 81559-97203 | ||||
| 90041-19693 | ||||
| 9004B-15001 | ||||
