F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)G,LIMD,S ; (0312-0608)4AT..E,GL ; (0404-0608)4AT..IDN,MA,TH

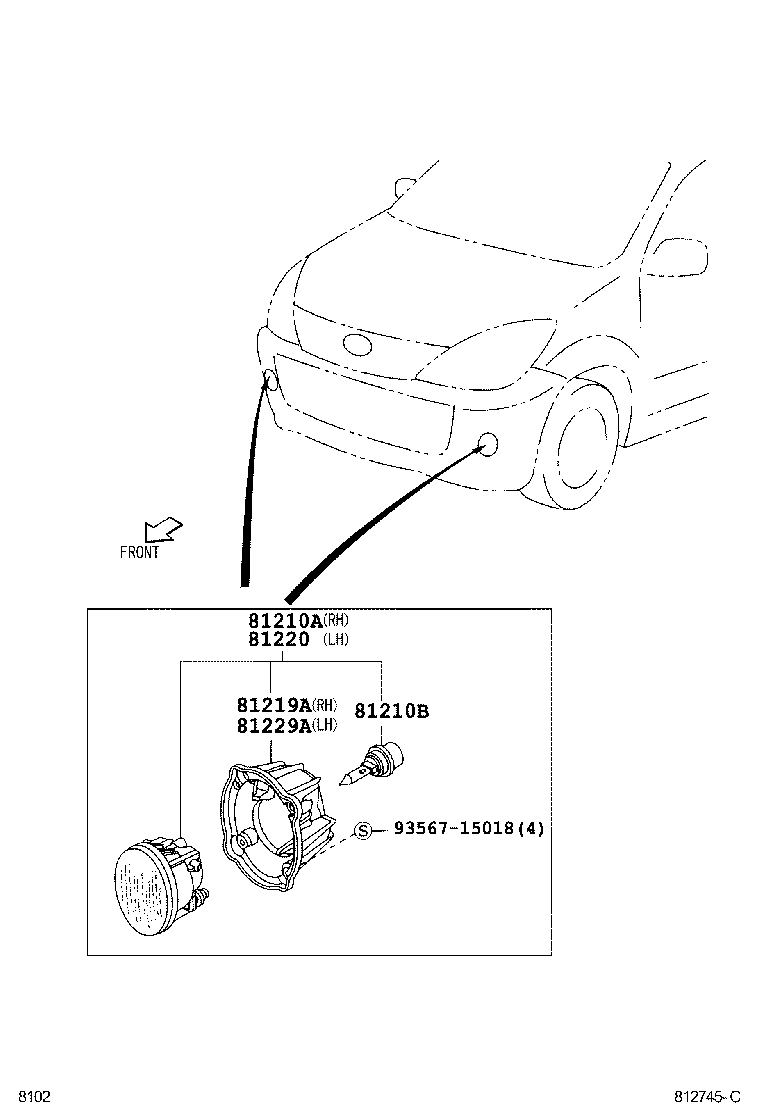

Click highlighted areas on diagram

diagram 81210A 81210B 81219A 81220 81229A 9356715018
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-BZ010

F601..G,LIMD,S;F601..4AT..(E,GL)

 1
81210B - BULB, FOG LAMP
90080-81040

F601..G,LIMD,S;F601..4AT..(E,GL)

12V 51W

 2
81219A - BRACKET, FOG LAMP, RH
81219-BZ010

F601..G,LIMD,S;F601..4AT..(E,GL)

 1
81220 - LAMP ASSY, FOG, LH
81220-BZ010

F601..G,LIMD,S;F601..4AT..(E,GL)

 1
81229A - BRACKET, FOG LAMP, LH
81229-BZ010

F601..G,LIMD,S;F601..4AT..(E,GL)

 1
Common parts
93567-15018
