F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

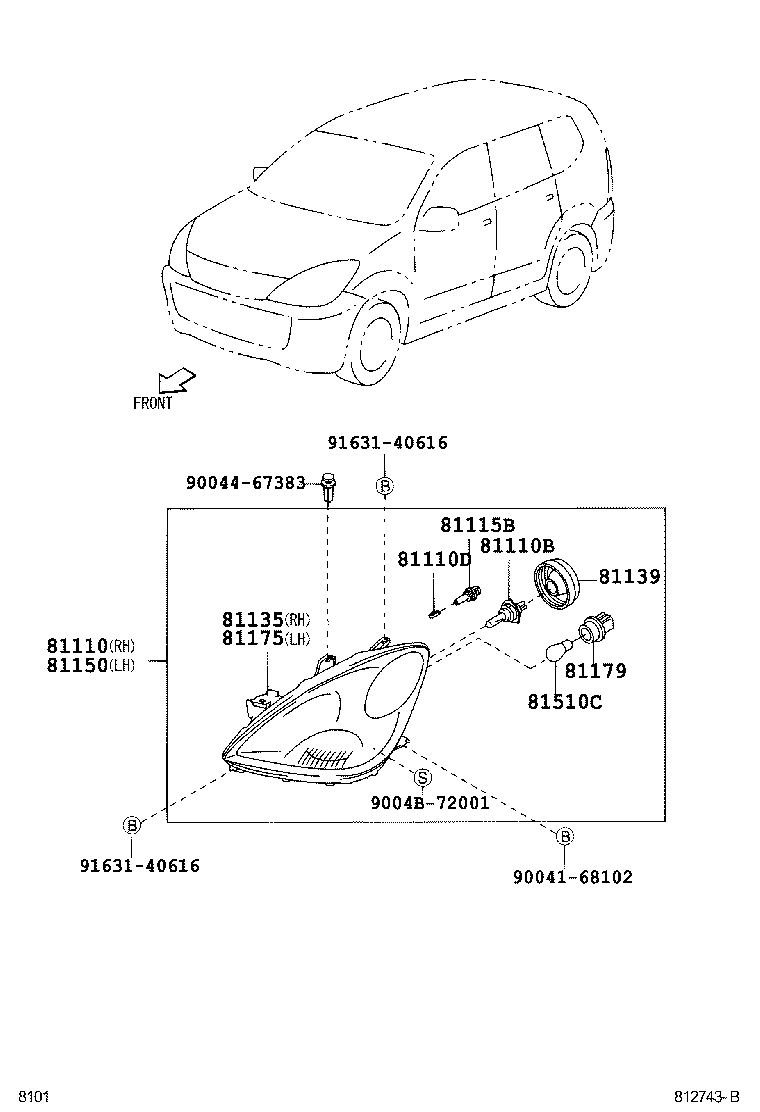

Click highlighted areas on diagram

diagram 81110 81110B 81110D 81115B 81135 81139 81150 81175 81179 81510C 9004168102 9004467383 9004B72001 9163140616 9163140616
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-BZ010

F601

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90049-51125

F601

12V 60/55W H4

 2
81110D - BULB(FOR HEADLAMP, NO.2)
9004A-81006

F601

12V 5W

 2
81115B - SOCKET,HEADLAMP, NO.1
90075-60046

F601

 2
81135 - UNIT ASSY, HEADLAMP, RH
81115-BZ010

F601

 1
81139 - COVER, HEADLAMP SOCKET
81139-BZ010

F601

 2
81150 - HEADLAMP ASSY, LH
81150-BZ010

F601

 1
81175 - UNIT ASSY, HEADLAMP, LH
81155-BZ010

F601

 1
81179 - COVER, HEADLAMP SOCKET
81179-BZ010

F601

 2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90049-51165

F601

12V 21W

 2
Common parts
90041-68102
90044-67383
9004B-72001
91631-40616
