F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

Click highlighted areas on diagram

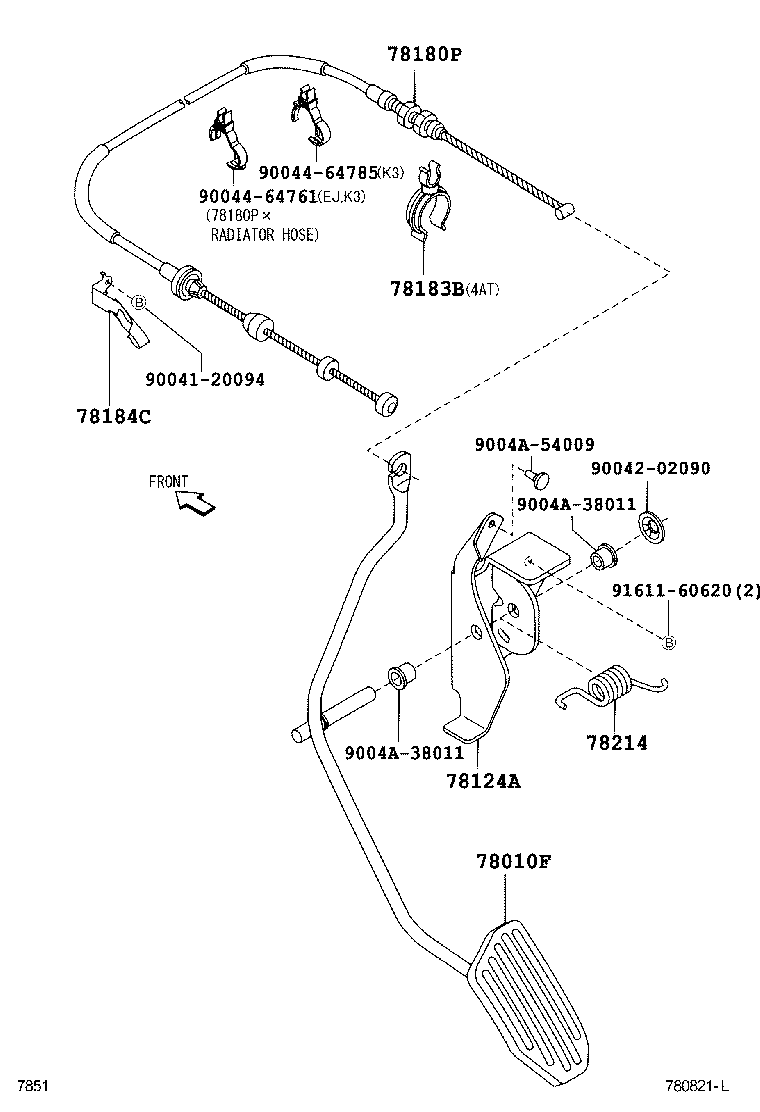

diagram 78010F 78124A 78180P 78183B 78184C 78214 9004120094 9004202090 9004464761 9004464785 9004A38011 9004A38011 9004A54009 9161160620
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78101-BZ010

F601

 1
78124A - BRACKET, ACCELERATOR PEDAL ROD
78124-BZ010

F601

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-BZ020

F601..5F..MA;F601..BRU,IDN,TH

 1
78184C - BRACKET, ACCELERATOR CONTROL CABLE
31341-BZ010

F601

 1
78214 - SPRING, ACCELERATOR LINK ROD RETURN
78214-BZ010

F601

 1
Common parts
90041-20094
90042-02090
90044-64761
90044-64785
9004A-38011
9004A-54009
91611-60620
