F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

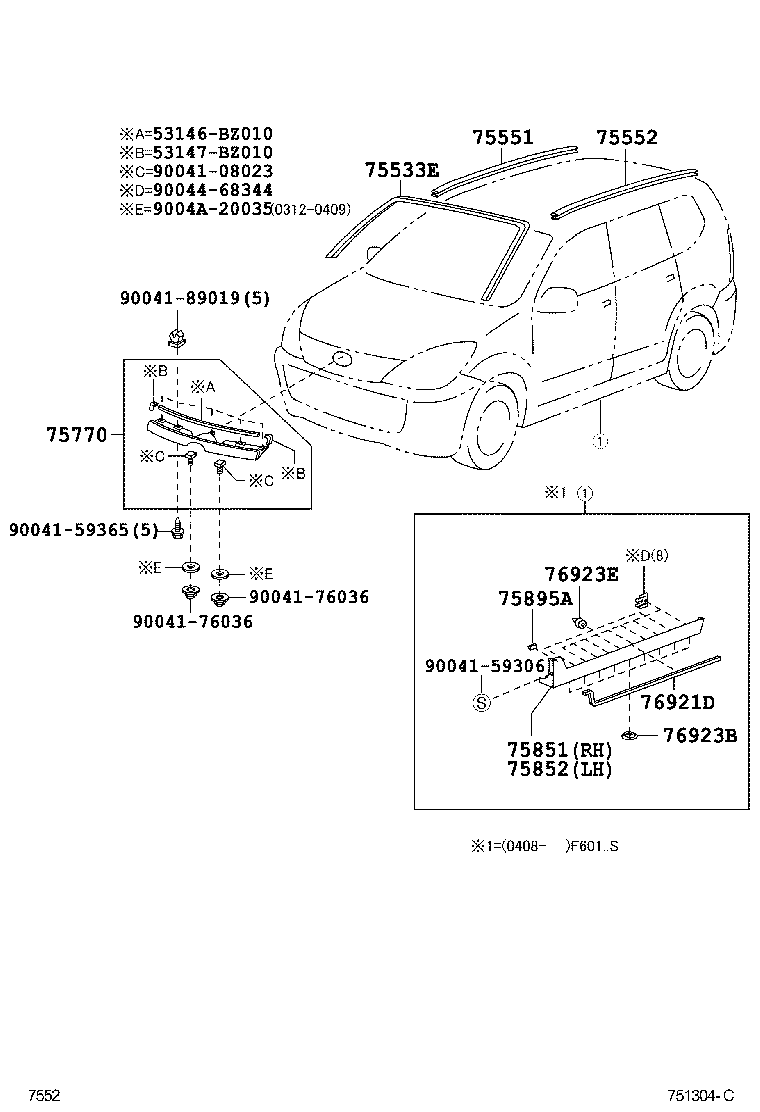

Click highlighted areas on diagram

diagram 53146BZ010 53147BZ010 75533E 75551 75552 75770 75851 75852 75895A 76921D 76923B 76923E 9004108023 9004159306 9004159365 9004176036 9004176036 9004189019 9004468344 9004A20035
Part # Description Qty Price
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-BZ010

F601

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-BZ010

F601

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-BZ010

F601

 1
75770 - MOULDING ASSY, HOOD, FRONT
75770-BZ010

F601

 1
Common parts
53146-BZ010
53147-BZ010
90041-08023
90041-59306
90041-59365
90041-76036
90041-89019
90044-68344
9004A-20035
