F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

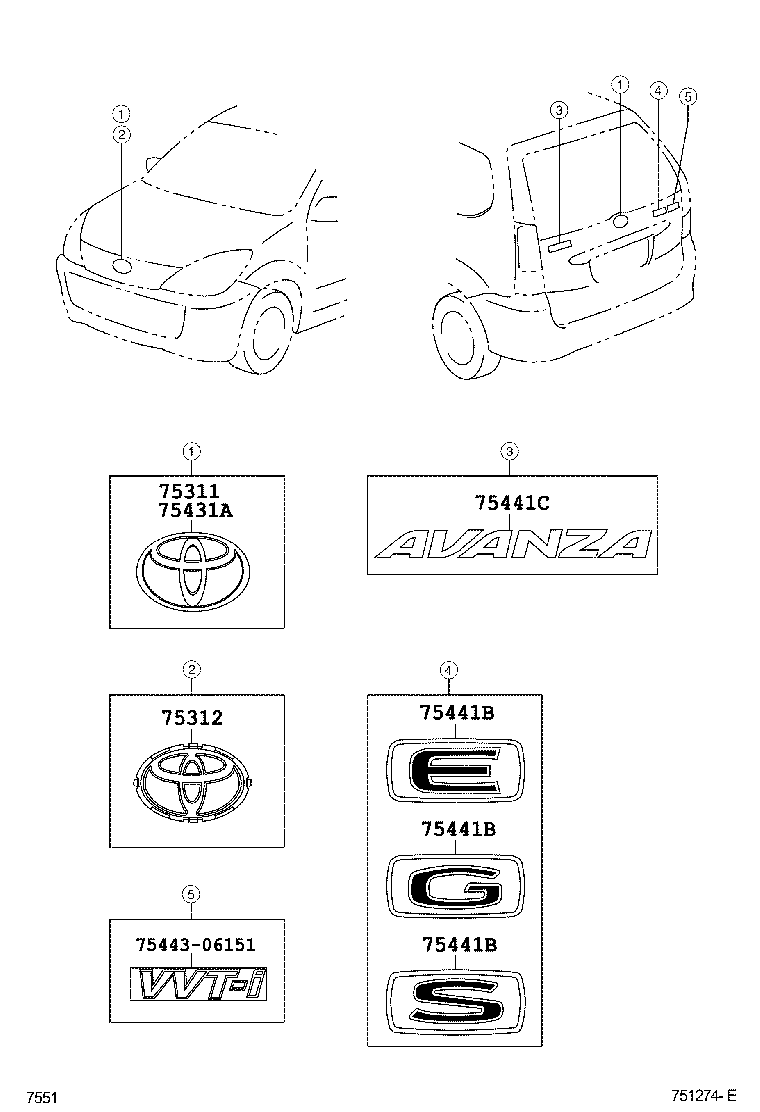

Click highlighted areas on diagram

diagram 75311 75312 75431A 75441B 75441B 75441B 75441C 7544306151
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-BZ020

F601

 1
75312 - BASE, RADIATOR GRILLE EMBLEM
75312-BZ020

F601

 1
75431A - EMBLEM, BACK DOOR, NO.1
75311-BZ030

F601

 1
75441B - PLATE, BACK DOOR NAME
75444-B0010

F601..G..BRU;F601..(E,GL,LIMD)..(BRU,IDN,TH)

E

 1
75441B - PLATE, BACK DOOR NAME
75444-B0010

F601..G..BRU;F601..(E,GL,LIMD)..(BRU,IDN,TH)

E

 1
75441B - PLATE, BACK DOOR NAME
75444-B0010

F601..G..BRU;F601..(E,GL,LIMD)..(BRU,IDN,TH)

E

 1
75441C - PLATE, BACK DOOR NAME
75441-BZ020

F601

 1
Common parts
75443-06151
