F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0608)

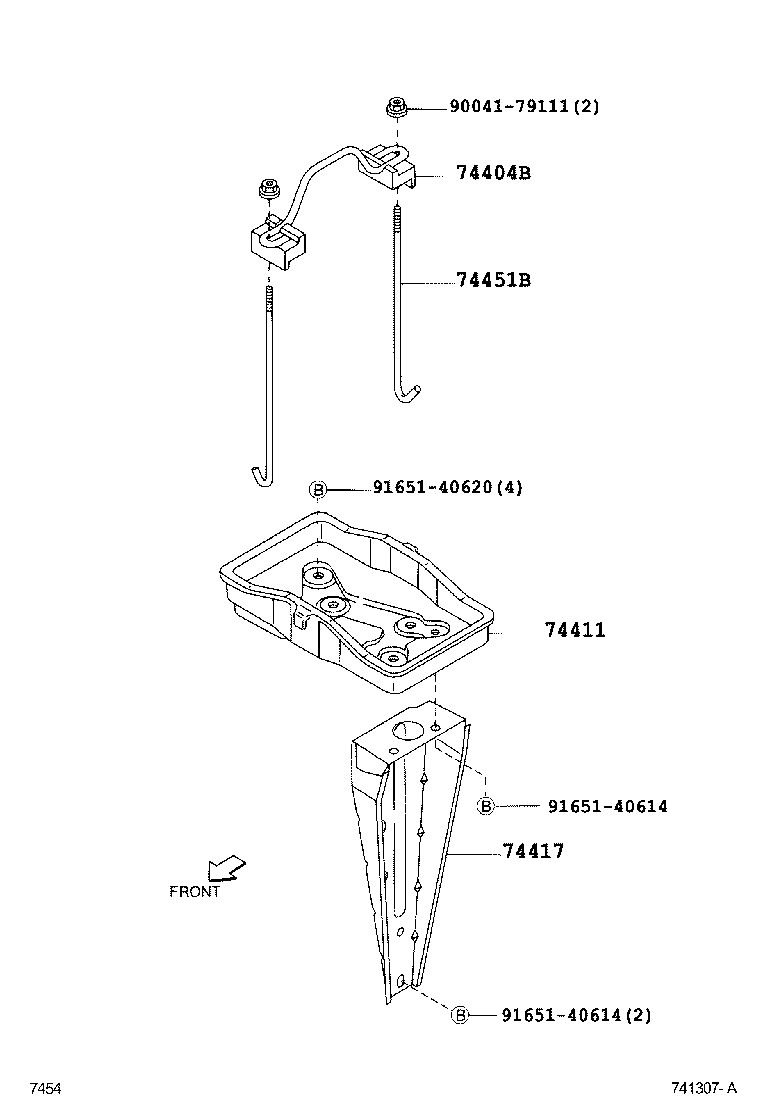

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74404B - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-BZ010 |
F601..BRU,IDN,TH |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74411-BZ010 |
F601 |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-BZ010 |
F601 |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-87Z07 |
F601 |
2 | ||
| Common parts | ||||
| 90041-79111 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
