F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

Click highlighted areas on diagram

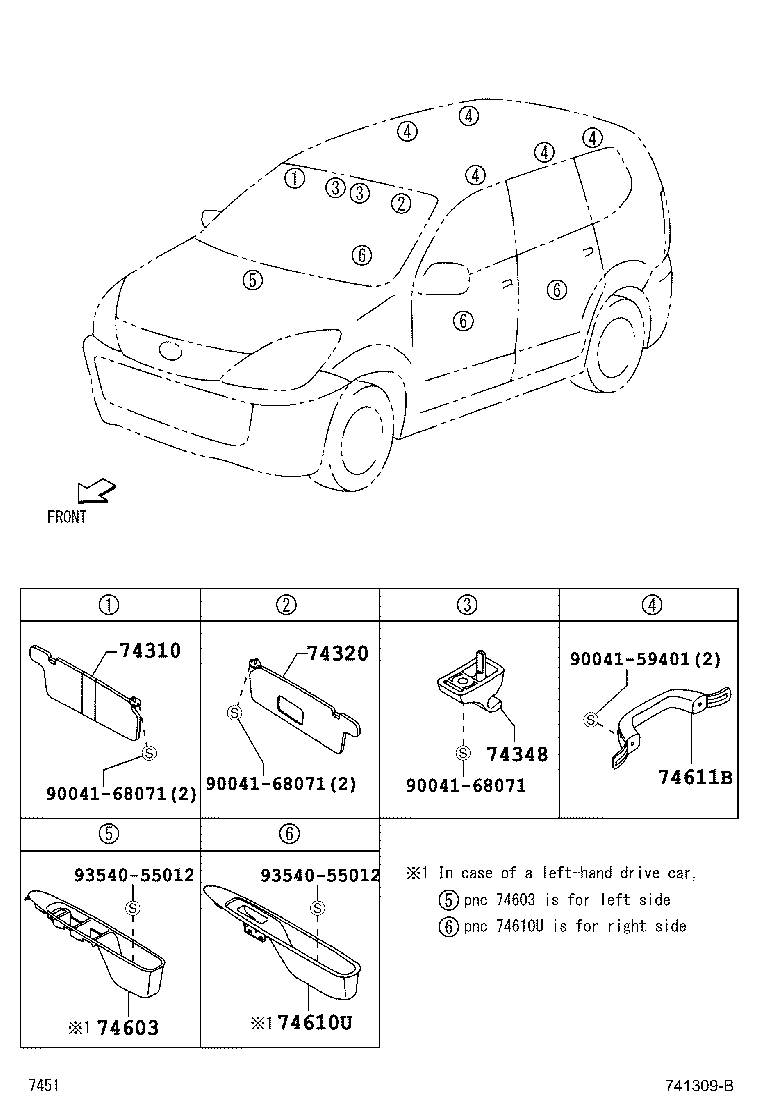

diagram 74310 74320 74348 74603 74610U 74611B 9004159401 9004168071 9004168071 9004168071 9354055012 9354055012
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-BZ010B0

F601..E,G,GL,LIMD

LT.GRAY,TRIM1#

 1
74310-BZ010B0

F601..S

LT.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-BZ020B0

F601..E..TH;F601..G,GL,LIMD,S

LT.GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-87Z01B0

F601

LT.GRAY,TRIM1#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74641-BZ010B0

F601..E,G,GL

DK.GRAY,TRIM1#,DRIVER.

 1
74610U - GRIP ASSY, ASSIST
74642-BZ010B0

F601..E,G,GL

DK.GRAY,TRIM1#

 3
74611B - GRIP, ASSIST
74611-87Z06B0

F601..E..TH;F601..G,GL,LIMD,S

LT.GRAY,TRIM1#

 5
Common parts
90041-59401
90041-68071
93540-55012
