F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

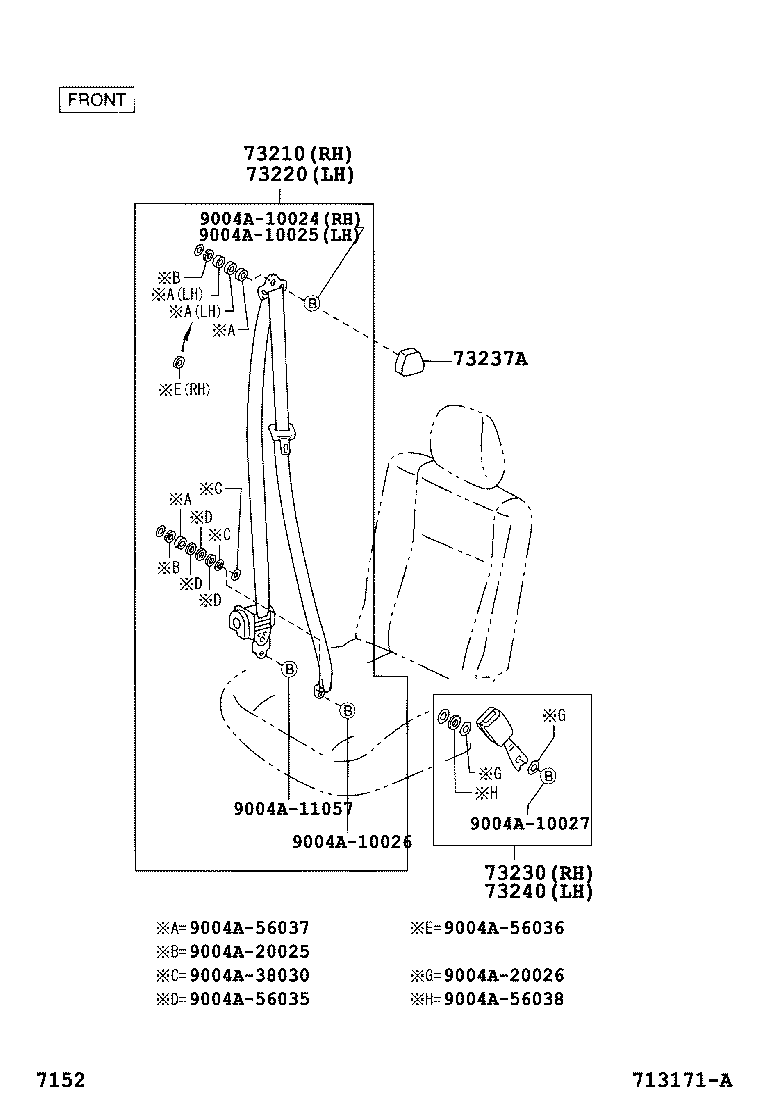

ILLUST NO. 1 OF 2(0312-0608)G,S..IDN,TH ; (0404-0608)TH ; (0512-0608)BRU ; (0608- )F601..G,J,XI ;

Click highlighted areas on diagram

FRONT

diagram 73210 73220 73230 73237A 73240 9004A10024 9004A10025 9004A10026 9004A10027 9004A11057 9004A20025 9004A20026 9004A38030 9004A56035 9004A56036 9004A56037 9004A56038
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-BZ011B0

F601..(E,G,GL,LIMD)..(BRU,IDN,TH)

GRAY,TRIM1#

 1
73210-BZ011B0

F601..S

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-BZ011B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
73237A - COVER, SHOULDER BELT ANCHOR
73237-BZ010B0

F601..BRU,IDN,TH

LT.GRAY,TRIM1#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
Common parts
9004A-10024
9004A-10025
9004A-10026
9004A-10027
9004A-11057
9004A-20025
9004A-20026
9004A-38030
9004A-56035
9004A-56036
9004A-56037
9004A-56038

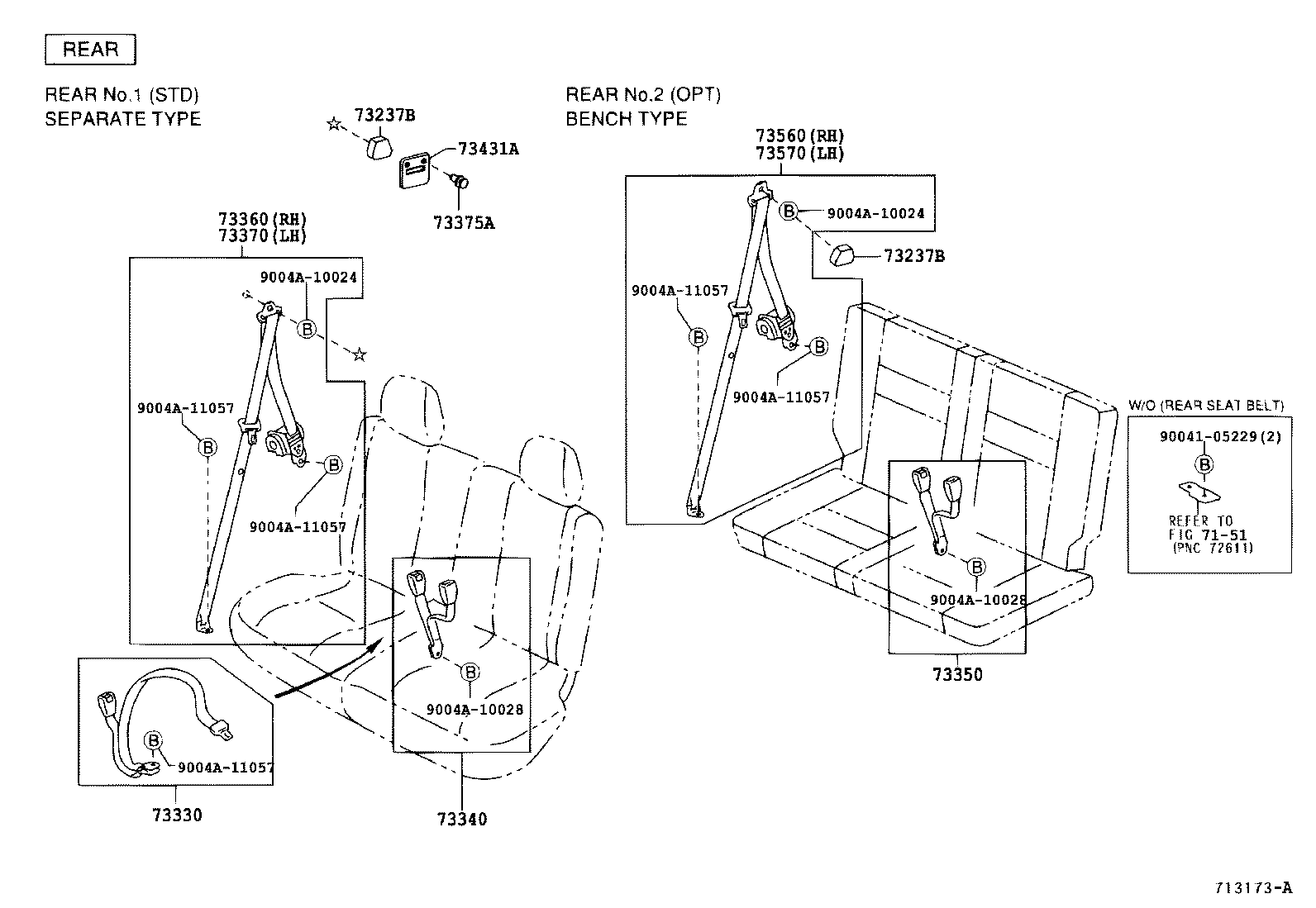

ILLUST NO. 2 OF 2(0312-0608)G,S..IDN,TH ; (0404-0608)TH ; (0512-0608)BRU ; (0608- )F601..G,J,XI ;

Click highlighted areas on diagram

REAR

diagram 7151 73237B 73237B 73330 73340 73350 73360 73370 73375A 73431A 73560 73570 9004105229 9004A10024 9004A10024 9004A10028 9004A10028 9004A11057 9004A11057 9004A11057 9004A11057 9004A11057
Part # Description Qty Price
73237B - COVER, SHOULDER BELT ANCHOR
73237-BZ010B0

F601..5F..MA;F601..BRU,IDN,TH

LT.GRAY,TRIM1#

 2
73237B - COVER, SHOULDER BELT ANCHOR
73237-BZ010B0

F601..5F..MA;F601..BRU,IDN,TH

LT.GRAY,TRIM1#

 2
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-BZ011B2

F601..G..BRU;F601..(E,GL,S)..(BRU,IDN)

GRAY,TRIM1#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73340-BZ010B1

F601..BRU,IDN,TH

GRAY,TRIM1#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73060-BZ010B0

F601..5F..MA;F601..BRU,IDN,TH

GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-BZ011B0

F601..BRU,IDN,TH

GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-BZ011B0

F601..BRU,IDN,TH

GRAY,TRIM1#

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-BZ011B0

F601..BRU,IDN,TH

GRAY,TRIM1#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-BZ011B0

F601..BRU,IDN,TH

GRAY,TRIM1#

 1
Common parts
90041-05229
9004A-10024
9004A-10028
9004A-11057
Linked diagrams
7151
