F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

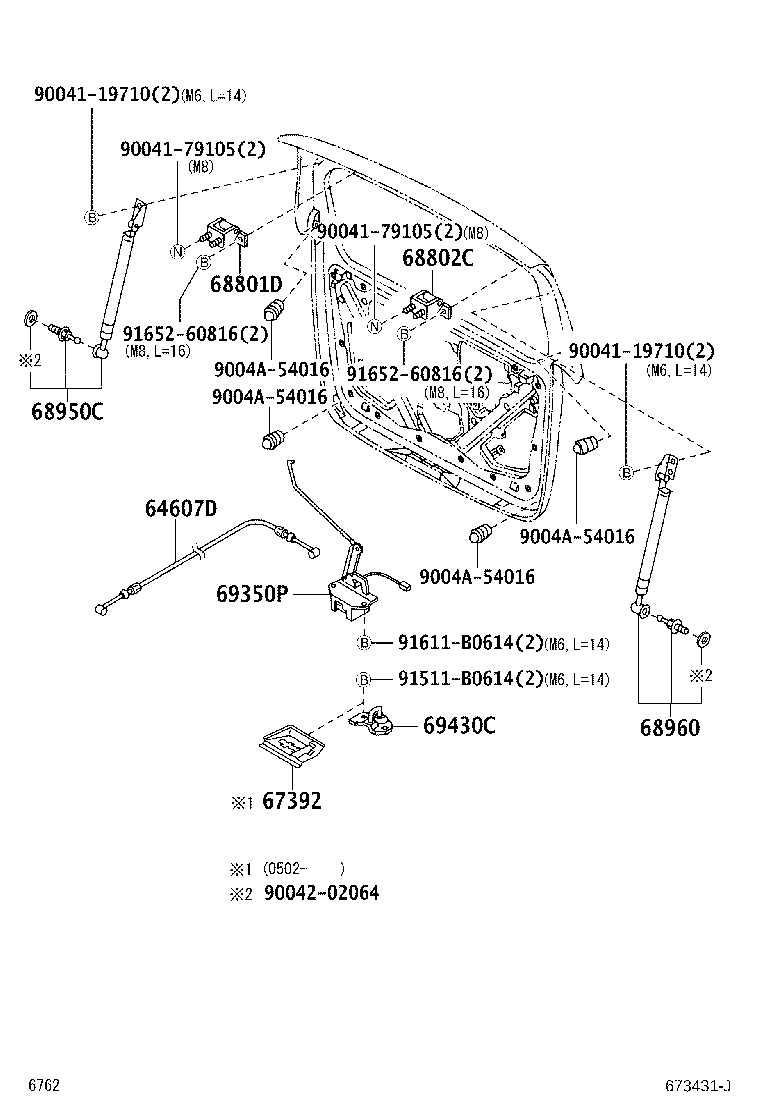

Click highlighted areas on diagram

diagram 64607D 67392 68801D 68802C 68950C 68960 69350P 69430C 9004119710 9004119710 9004179105 9004179105 9004202064 9004A54016 9004A54016 9004A54016 9004A54016 91511B0614 91611B0614 9165260816 9165260816
Part # Description Qty Price
64607D - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-BZ011

F601

 1
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-BZ010

F601

 1
68802C - HINGE SUB-ASSY, BACK DOOR, LH
68801-BZ010

F601

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-B9131

F601

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-B9131

F601

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-B0010

F601

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-B0010

F601

 1
Common parts
90041-19710
90041-79105
90042-02064
9004A-54016
91511-B0614
91611-B0614
91652-60816
