F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0608)

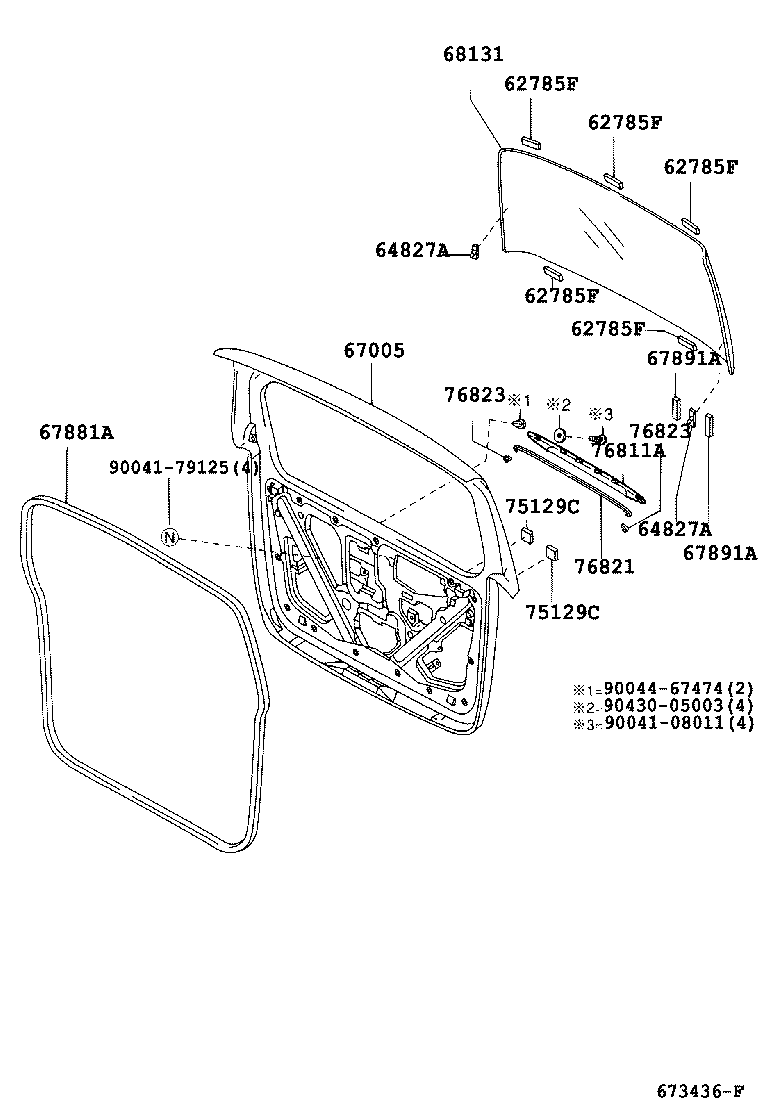

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-87401 |
F601 |
5 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-87401 |
F601 |
5 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-87401 |
F601 |
5 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-87401 |
F601 |
5 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-87401 |
F601 |
5 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-87Z01 |
F601 |
2 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-87Z01 |
F601 |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-BZ010 |
F601 |
1 | ||
| 67891A - SEAL, BACK DOOR | ||||
| 67891-BZ010 |
F601 |
2 | ||
| 67891A - SEAL, BACK DOOR | ||||
| 67891-BZ010 |
F601 |
2 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-87502 |
F601 |
2 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-87502 |
F601 |
2 | ||
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76811-BZ020 |
F601 |
1 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-BZ010 |
F601 |
1 | ||
| 76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH | ||||
| 76823-BZ010 |
F601 |
2 | ||
| 76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH | ||||
| 76823-BZ010 |
F601 |
2 | ||
| Common parts | ||||
| 90041-08011 | ||||
| 90041-79125 | ||||
| 90044-67474 | ||||
| 90430-05003 | ||||
