F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0608)

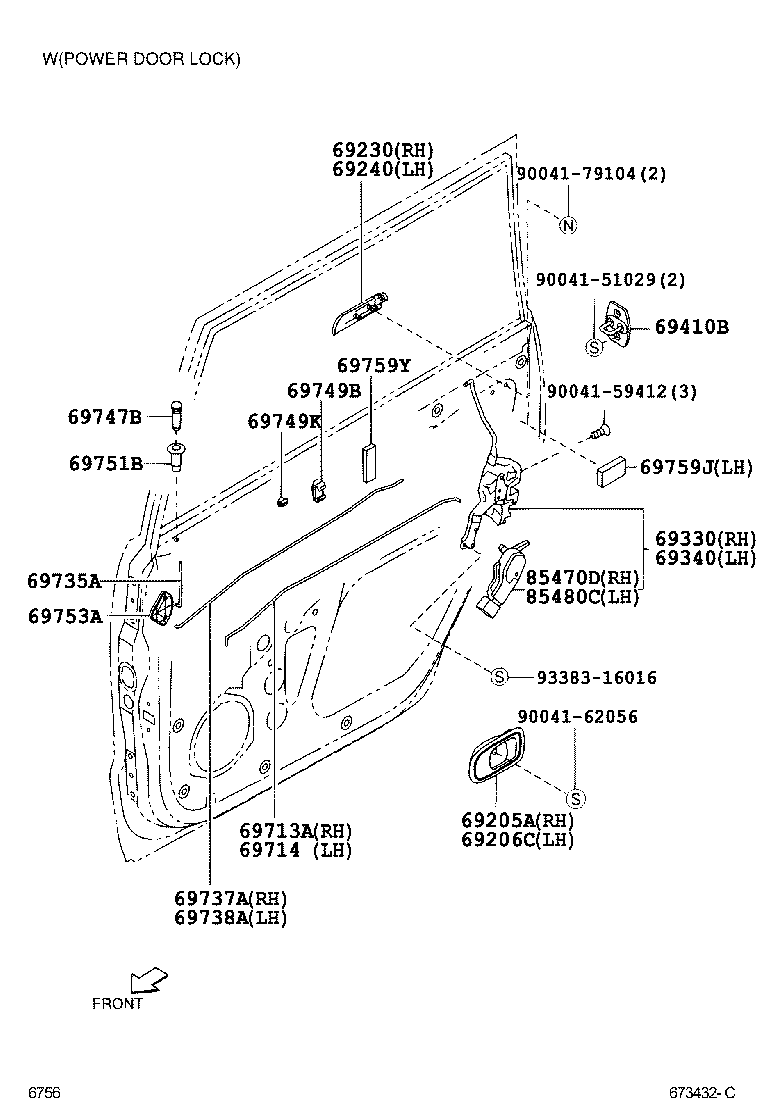

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69270-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69280-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-BZ080 |
F601..S..BRU;F601..(G,GL,LIMD)..(BRU,TH) PAINT REQ. |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-BZ080 |
F601..S..BRU;F601..(G,GL,LIMD)..(BRU,TH) PAINT REQ. |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-BZ010 |
F601 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-BZ010 |
F601 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-BZ010 |
F601 |
2 | ||
| 69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-BZ010 |
F601 |
1 | ||
| 69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-BZ010 |
F601 |
1 | ||
| 69735A - ROD, REAR DOOR LOCK PUSH BUTTON | ||||
| 69735-BZ020 |
F601 RH |
1 | ||
| 69736-BZ020 |
F601 LH |
1 | ||
| 69737A - LINK, REAR DOOR INSIDE LOCKING , RH | ||||
| 69737-BZ010 |
F601 |
1 | ||
| 69738A - LINK, REAR DOOR INSIDE LOCKING , LH | ||||
| 69738-BZ010 |
F601 |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69747-87703B2 |
F601..E,G,GL,LIMD DK.GRAY,TRIM1# |
2 | ||
| 69743-B0010 |
F601..S |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-87701 |
F601 |
2 | ||
| 69749K - CLAMP, REAR DOOR LOCK | ||||
| 69749-87702 |
F601 |
2 | ||
| 69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69751-87703B0 |
F601..E,G,GL,LIMD DK.GRAY,TRIM1# |
2 | ||
| 69753A - BELLCRANK, DOOR LOCK CONTROL | ||||
| 69763-87703 |
F601 |
2 | ||
| 69759J - SILENCER, DOOR LOCK LINK | ||||
| 69759-87Z02 |
F601 |
1 | ||
| 69759Y - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-87Z03 |
F601 |
6 | ||
| 85470D - MOTOR ASSY, DOOR CONTROL, REAR RH | ||||
| 85470-BZ010 |
F601 |
1 | ||
| 85480C - MOTOR ASSY, DOOR CONTROL, REAR LH | ||||
| 85480-BZ010 |
F601 |
1 | ||
| Common parts | ||||
| 90041-51029 | ||||
| 90041-59412 | ||||
| 90041-62056 | ||||
| 90041-79104 | ||||
| 93383-16016 | ||||
