F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

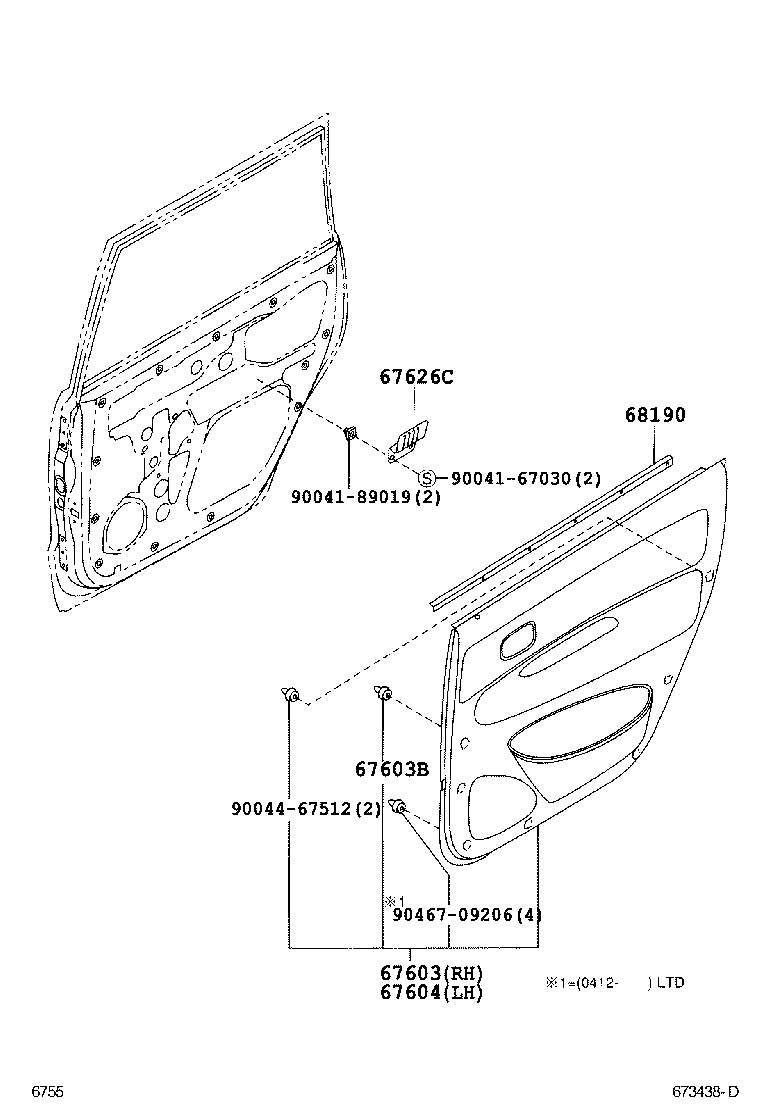

ILLUST NO. 1 OF 2(0312-0608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67607-BZ010B0 |
F601..E,G,GL DK.GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
F601 |
6 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67608-BZ010B0 |
F601..E,G,GL DK.GRAY,TRIM1# |
1 | ||
| 67626C - BRACKET, REAR DOOR TRIM, NO.2 | ||||
| 67625-BZ010 |
F601 |
2 | ||
| Common parts | ||||
| 90041-67030 | ||||
| 90041-89019 | ||||
| 90044-67512 | ||||
| 90467-09206 | ||||

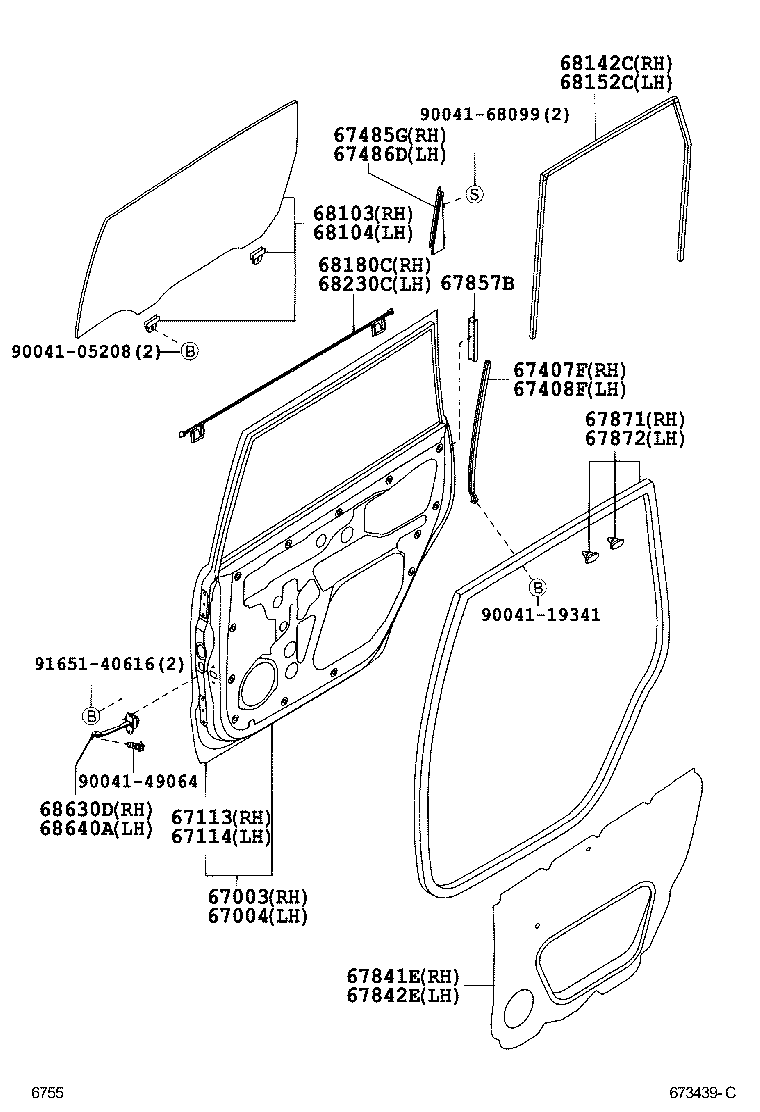

ILLUST NO. 2 OF 2(0312-0608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-BZ010 |
F601 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-BZ010 |
F601 |
1 | ||
| 67485G - SEAL, REAR DOOR REAR LOWER FRAME, RH | ||||
| 67485-BZ010 |
F601 |
1 | ||
| 67486D - SEAL, REAR DOOR REAR LOWER FRAME, LH | ||||
| 67486-BZ010 |
F601 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-BZ030 |
F601 W(SPEAKER),RH |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-BZ010 |
F601 W(SPEAKER),LH |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-BZ010 |
F601 |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-BZ010 |
F601 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-BZ010 |
F601 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-BZ010 |
F601 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-BZ010 |
F601 |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-BZ010 |
F601 |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-BZ010 |
F601 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-BZ010 |
F601 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-BZ010 |
F601 |
1 | ||
| Common parts | ||||
| 90041-05208 | ||||
| 90041-19341 | ||||
| 90041-49064 | ||||
| 90041-68099 | ||||
| 91651-40616 | ||||
