F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

Click highlighted areas on diagram

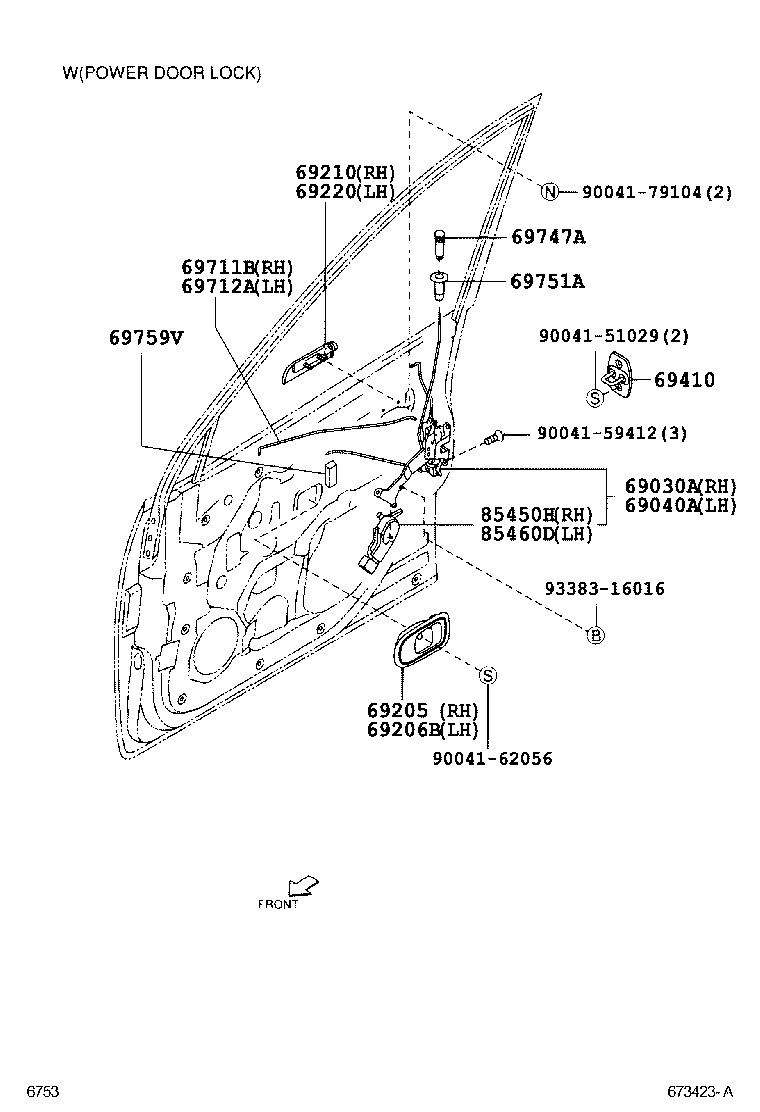

diagram 69030A 69040A 69205 69206B 69210 69220 69410 69711B 69712A 69747A 69751A 69759V 85450H 85460D 9004151029 9004159412 9004162056 9004179104 9338316016
Part # Description Qty Price
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-BZ010

F601

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69270-BZ010B0

F601

DK.GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69280-BZ010B0

F601

DK.GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-BZ080

F601..S..BRU;F601..(G,GL,LIMD)..(BRU,TH)

PAINT REQ.

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-BZ080

F601..S..BRU;F601..(G,GL,LIMD)..(BRU,TH)

PAINT REQ.

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-BZ010

F601

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-BZ010

F601

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-BZ010

F601

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69747-87703B2

F601..E,G,GL,LIMD

DK.GRAY,TRIM1#

 2
69743-B0010

F601..S

 2
69751A - HOLDER, DOOR LOCKING(FOR FRONT DOOR)
69751-87703B0

F601..E,G,GL,LIMD

DK.GRAY,TRIM1#

 2
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-87Z03

F601

 2
85460D - MOTOR ASSY, DOOR CONTROL, FRONT LH
85460-BZ010

F601

 1
Common parts
90041-51029
90041-59412
90041-62056
90041-79104
93383-16016
