F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

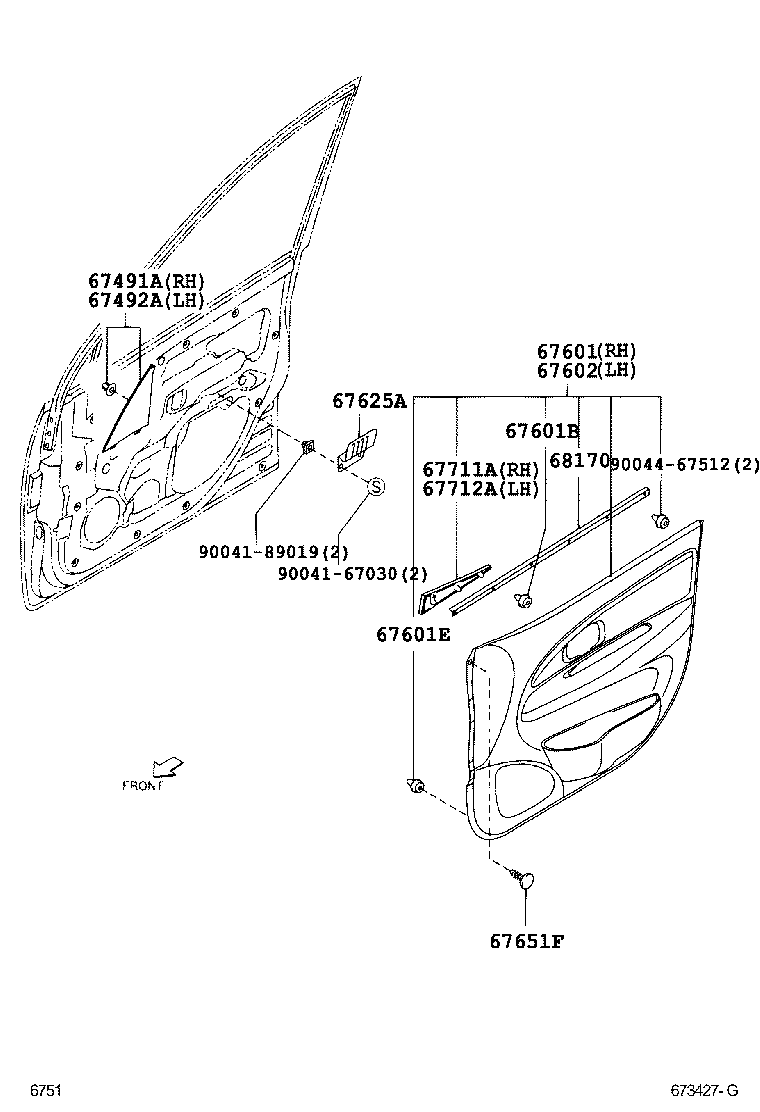

ILLUST NO. 1 OF 2(0312-0608)

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601B 67601E 67602 67625A 67651F 67711A 67712A 68170 9004167030 9004189019 9004467512
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-BZ020

F601

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-BZ020

F601

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67605-BZ010B0

F601..E,G,GL

DK.GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161

F601

 8
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90467-09206

F601

 8
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67606-BZ010B0

F601..E,G,GL

DK.GRAY,TRIM1#

 1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67625-BZ010

F601

 2
67651F - CLIP(FOR FRONT DOOR TRIM BOARD)
90044-68279B0

F601

DK.GRAY,TRIM1#

 2
67711A - COVER, DOOR TRIM, RH
67711-BZ010B0

F601

DK.GRAY,TRIM1#

 1
67712A - COVER, DOOR TRIM, LH
67712-BZ010B0

F601

DK.GRAY,TRIM1#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-BZ010

F601

 2
Common parts
90041-67030
90041-89019
90044-67512

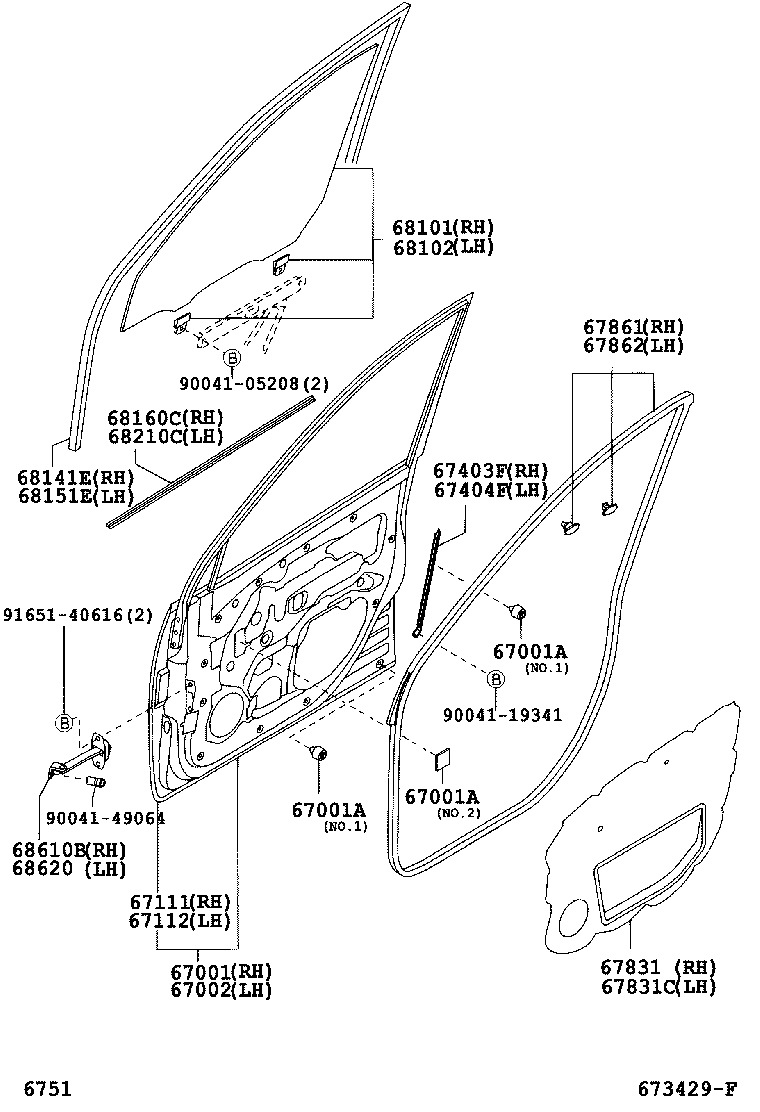

ILLUST NO. 2 OF 2(0312-0608)

Click highlighted areas on diagram

diagram 67001 67001A 67001A 67001A 67002 67111 67112 67403F 67404F 67831 67831C 67861 67862 68101 68102 68141E 68151E 68160C 68210C 68610B 68620 9004105208 9004119341 9004149064 9165140616
Part # Description Qty Price
67001A - CUSHION, FRONT DOOR PANEL
67887-BZ010

F601

(J),NO.2

 2
9004A-54015

F601

(J),NO.1

 4
67001A - CUSHION, FRONT DOOR PANEL
67887-BZ010

F601

(J),NO.2

 2
9004A-54015

F601

(J),NO.1

 4
67001A - CUSHION, FRONT DOOR PANEL
67887-BZ010

F601

(J),NO.2

 2
9004A-54015

F601

(J),NO.1

 4
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-BZ010

F601

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-BZ010

F601

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67832-BZ010

F601..E..TH;F601..G,GL,LIMD,S

W(SPEAKER)

 1
67831C - COVER, FRONT DOOR SERVICE HOLE
67831-BZ030

F601..E..TH;F601..G,GL,LIMD,S

W(SPEAKER)

 1
67832-BZ010

F601..E..TH;F601..G,GL,LIMD,S

LH

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-BZ010

F601

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-BZ010

F601

 1
68141E - RUN, FRONT DOOR GLASS, RH
68141-BZ010

F601

 1
68151E - RUN, FRONT DOOR GLASS, LH
68151-BZ010

F601

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-BZ010

F601

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-BZ010

F601

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-BZ010

F601

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-BZ010

F601

 1
Common parts
90041-05208
90041-19341
90041-49064
91651-40616
