F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0608)

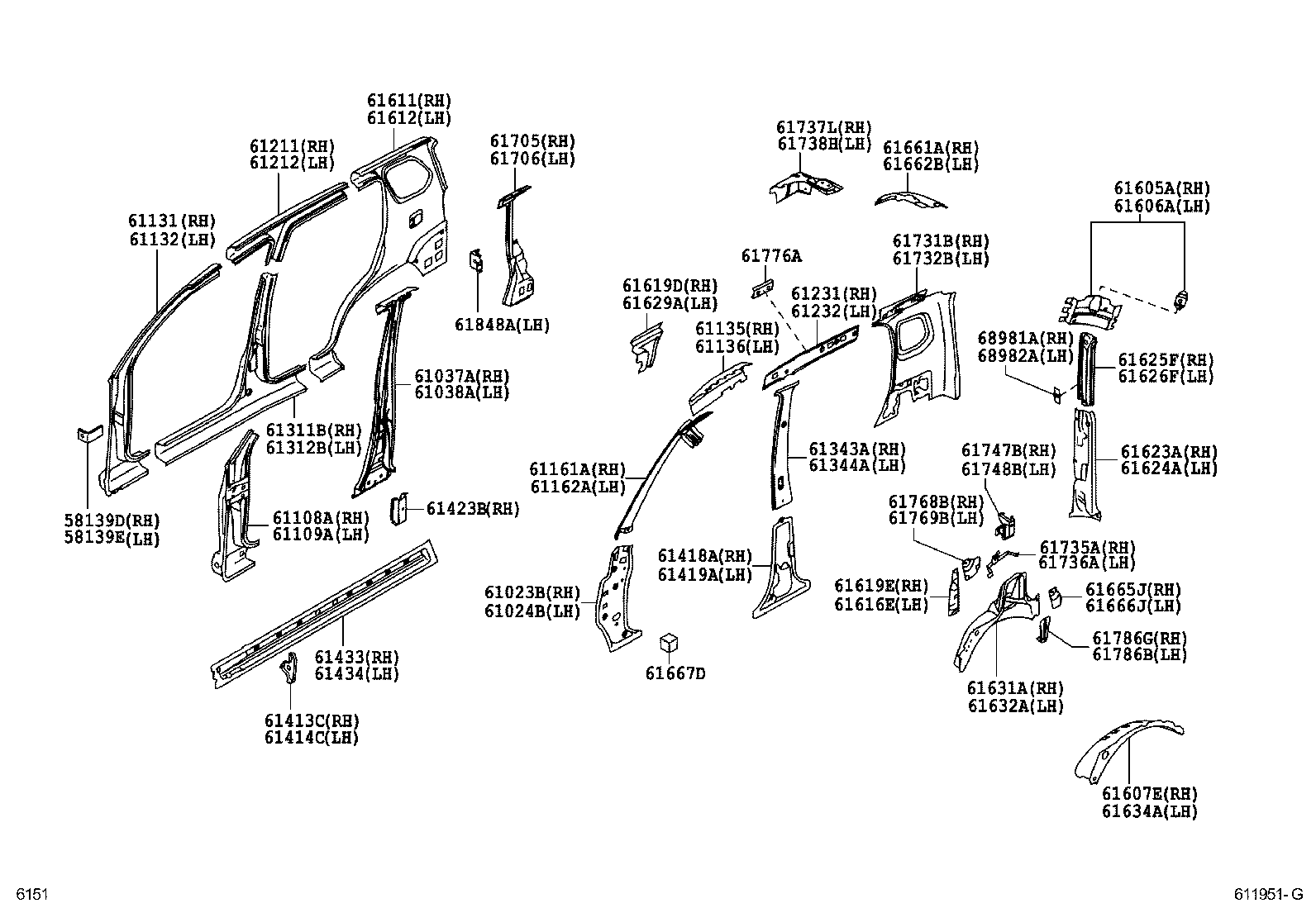

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58139D - BRACKET, HARNESS CLAMP | ||||
| 58139-BZ010 |
F601 |
1 | ||
| 58139E - BRACKET, HARNESS CLAMP | ||||
| 58139-BZ010 |
F601 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-BZ020 |
F601..BRU,IDN,TH |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-BZ010 |
F601 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-BZ010 |
F601 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-BZ010 |
F601 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-BZ010 |
F601 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-BZ010 |
F601 |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-BZ010 |
F601 |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-BZ010 |
F601 |
1 | ||
| 61161A - PILLAR, FRONT BODY, INNER RH | ||||
| 61161-BZ010 |
F601 |
1 | ||
| 61162A - PILLAR, FRONT BODY, INNER LH | ||||
| 61162-BZ010 |
F601 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-BZ010 |
F601 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-BZ010 |
F601 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-BZ020 |
F601 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-BZ020 |
F601 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-BZ010 |
F601 |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-BZ010 |
F601 |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-BZ010 |
F601 |
1 | ||
| 61423B - REINFORCEMENT, ROCKER PANEL, NO.3 RH | ||||
| 61423-BZ010 |
F601 |
1 | ||
| 61433 - PANEL, ROCKER, INNER RH | ||||
| 61433-BZ010 |
F601 |
1 | ||
| 61434 - PANEL, ROCKER, INNER LH | ||||
| 61434-BZ010 |
F601 |
1 | ||
| 61605A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH | ||||
| 61605-BZ010 |
F601 |
1 | ||
| 61606A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH | ||||
| 61606-BZ010 |
F601 |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-BZ010 |
F601..5F;F601..4AT..MA |
1 | ||
| 61616E - REINFORCEMENT, QUARTER PANEL, OUTER LH | ||||
| 61616-BZ010 |
F601 |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-BZ010 |
F601 |
1 | ||
| 61619E - REINFORCEMENT, QUARTER PANEL | ||||
| 61615-BZ010 |
F601 |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-BZ010 |
F601 |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-BZ010 |
F601..BRU,IDN,TH |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-BZ010 |
F601 |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-BZ010 |
F601 |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-BZ010 |
F601 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-BZ010 |
F601..5F;F601..4AT..MA |
1 | ||
| 61661A - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-BZ010 |
F601 |
1 | ||
| 61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-BZ010 |
F601 |
1 | ||
| 61665J - PLATE, SEAT BELT ANCHORAGE, RH | ||||
| 61665-BZ010 |
F601 |
1 | ||
| 61666J - PLATE, SEAT BELT ANCHORAGE, LH | ||||
| 61666-BZ010 |
F601 |
1 | ||
| 61667D - SEAL, QUARTER PANEL | ||||
| 61667-BZ010 |
F601 |
2 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-BZ010 |
F601 |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-BZ010 |
F601 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-BZ020 |
F601 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-BZ020 |
F601 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-BZ010 |
F601 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-BZ010 |
F601 |
1 | ||
| 61737L - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-BZ010 |
F601 |
1 | ||
| 61738H - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-BZ010 |
F601 |
1 | ||
| 61747B - REINFORCEMENT, ROOF SIDE, INNER REAR, RH | ||||
| 61747-BZ010 |
F601 |
1 | ||
| 61748B - REINFORCEMENT, ROOF SIDE, INNER REAR, LH | ||||
| 61748-BZ010 |
F601 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-BZ010 |
F601 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-BZ010 |
F601 |
1 | ||
| 61776A - NUT, W/PLATE | ||||
| 61776-BZ010 |
F601..E..TH;F601..G,GL,LIMD,S |
1 | ||
| 61786B - BRACKET, REAR BUMPER SIDE, LH | ||||
| 61786-BZ010 |
F601 |
1 | ||
| 61786G - BRACKET, REAR BUMPER SIDE | ||||
| 61786-BZ010 |
F601 |
1 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-BZ010 |
F601 |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-BZ010 |
F601 |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68981-BZ010 |
F601 |
1 | ||
