F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0608)

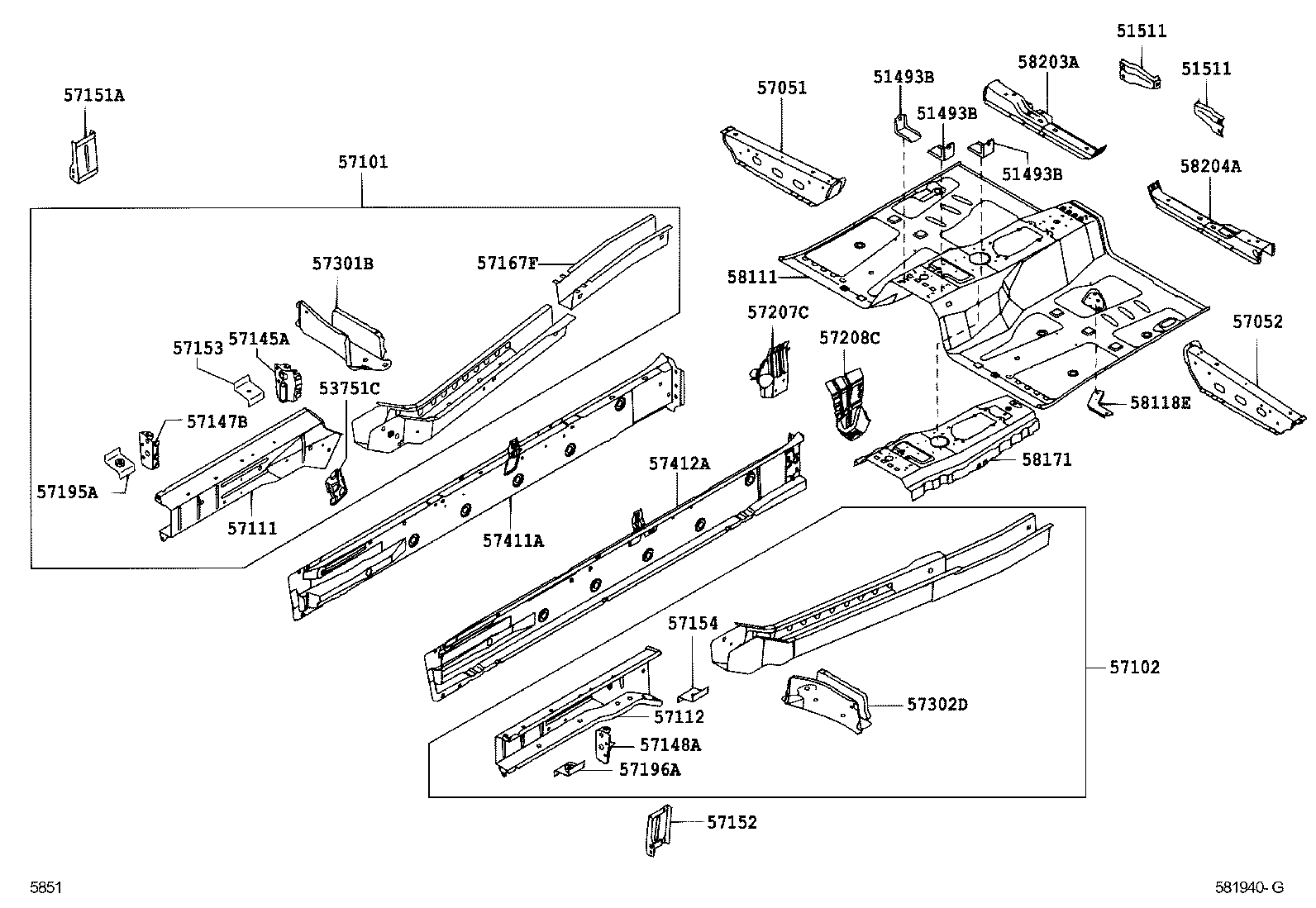

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51493B - BRACKET, UNDER GUARD, FR NO.1 | ||||
| 51493-BZ010 |
F601 |
3 | ||
| 51493B - BRACKET, UNDER GUARD, FR NO.1 | ||||
| 51493-BZ010 |
F601 |
3 | ||
| 51493B - BRACKET, UNDER GUARD, FR NO.1 | ||||
| 51493-BZ010 |
F601 |
3 | ||
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-BZ010 |
F601 |
1 | ||
| 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-BZ010 |
F601 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-BZ100 |
F601..WVVT..(BRU,IDN,TH) |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-BZ080 |
F601..WVVT..(BRU,IDN,TH) |
1 | ||
| 57147B - PLATE, FRONT SIDE MEMBER, REAR RH | ||||
| 57147-BZ010 |
F601 |
1 | ||
| 57148A - PLATE, FRONT SIDE MEMBER, REAR LH | ||||
| 57148-BZ010 |
F601 |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-BZ010 |
F601 |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-BZ010 |
F601 |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57153-BZ010 |
F601 |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57154-BZ010 |
F601 |
1 | ||
| 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH | ||||
| 57195-BZ010 |
F601 |
1 | ||
| 57195-BZ050 |
F601 |
1 | ||
| 57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-BZ030 |
F601 |
1 | ||
| 57196-BZ010 |
F601 |
1 | ||
| 57207C - BRACKET SUB-ASSY, ENGINE REAR MOUNTING, RH | ||||
| 57207-BZ010 |
F601 |
1 | ||
| 57208C - BRACKET SUB-ASSY, ENGINE REAR MOUNTING, LH | ||||
| 57208-BZ010 |
F601 |
1 | ||
| 57301B - OUTRIGGER SUB-ASSY, NO.1 RH | ||||
| 57301-BZ010 |
F601 |
1 | ||
| 57302D - OUTRIGGER SUB-ASSY, NO.1 LH | ||||
| 57302-BZ010 |
F601 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-BZ010 |
F601 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-BZ010 |
F601 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-BZ010 |
F601..5F |
1 | ||
| 58118E - BRACKET, JACK SET | ||||
| 58118-87Z02 |
F601 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-BZ010 |
F601..5F |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58203-BZ010 |
F601 |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58204-BZ010 |
F601 |
1 | ||
