F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

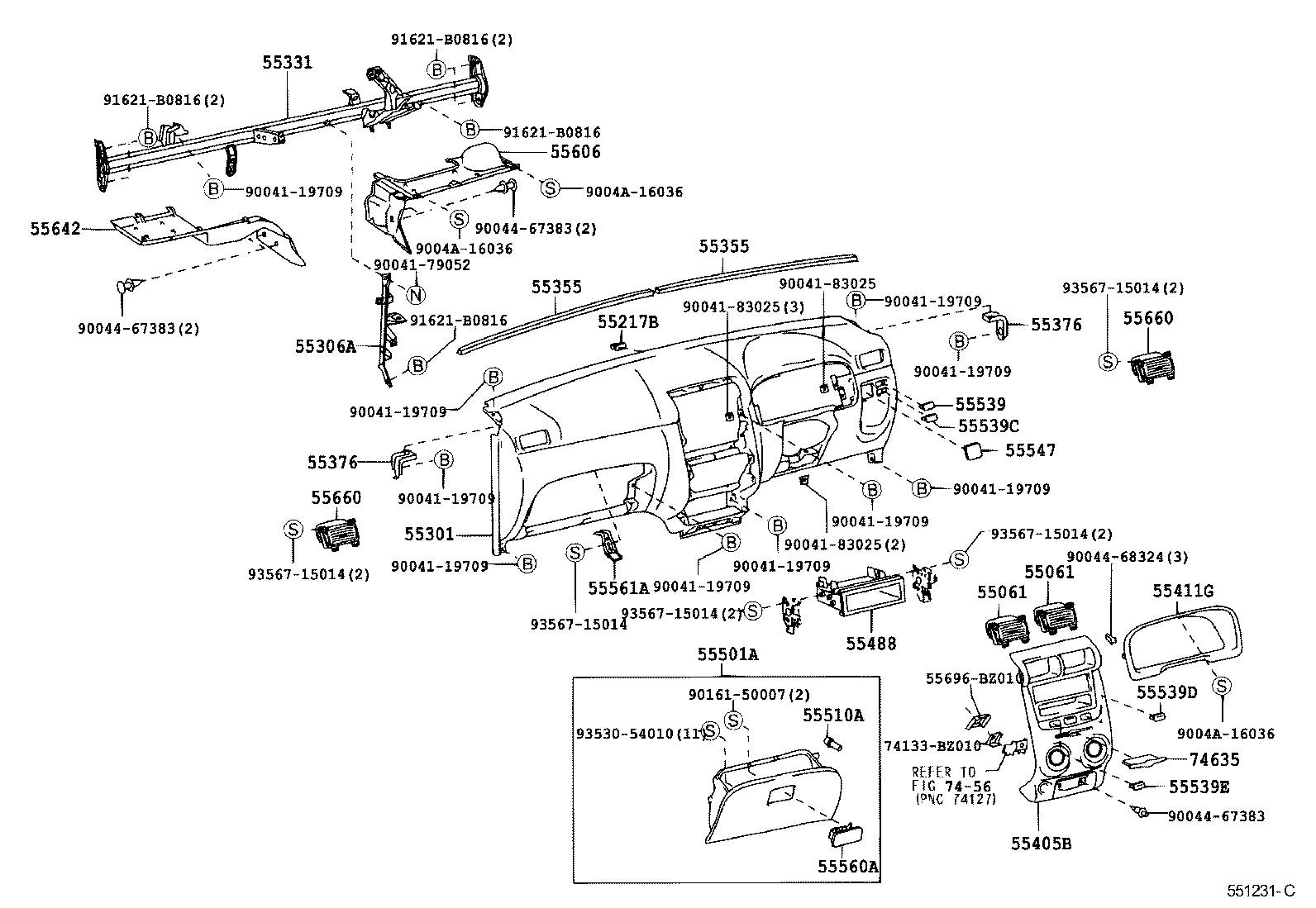

Click highlighted areas on diagram

diagram 55061 55061 55217B 55301 55306A 55331 55355 55355 55376 55376 55405B 55411G 55488 55501A 55510A 55539 55539C 55539D 55539E 55547 55560A 55561A 55606 55642 55660 55660 55696BZ010 74133BZ010 7456 74635 9004119709 9004119709 9004119709 9004119709 9004119709 9004119709 9004119709 9004119709 9004119709 9004119709 9004179052 9004183025 9004183025 9004183025 9004467383 9004467383 9004467383 9004468324 9004A16036 9004A16036 9004A16036 9016150007 91621B0816 91621B0816 91621B0816 91621B0816 9353054010 9356715014 9356715014 9356715014 9356715014 9356715014
Part # Description Qty Price
55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1
55061-BZ020B0

F601

DK.GRAY,TRIM1#

 2
55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1
55061-BZ020B0

F601

DK.GRAY,TRIM1#

 2
55217B - RETAINER, DASH PANEL SILENCER
55217-97201

F601

 3
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-BZ010B0

F601

DK.GRAY,TRIM1#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-BZ010

F601

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-BZ010

F601

 2
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-BZ010

F601

 2
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-BZ010

F601

 2
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-BZ010

F601

 2
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-BZ010

F601

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-BZ010B0

F601

DK.GRAY,TRIM1#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90080-54022

F601

 2
55539 - COVER, SPARE SWITCH HOLE
55539-51020B2

F601..5F..(E,GL)

DK.GRAY,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-51020B2

F601

DK.GRAY,TRIM1#

 1
55539D - COVER, SPARE SWITCH HOLE
55539-51020B2

F601..5F..(BRU,IDN,TH)

DK.GRAY,TRIM1#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-51020B2

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55506-44010B0

F601

DK.GRAY,TRIM1#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-BZ010

F601

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55641-BZ010B0

F601

DK.GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-BZ020B0

F601

DK.GRAY,TRIM1#

 2
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-BZ020B0

F601

DK.GRAY,TRIM1#

 2
Common parts
55696-BZ010
74133-BZ010
90041-19709
90041-79052
90041-83025
90044-67383
90044-68324
9004A-16036
90161-50007
91621-B0816
93530-54010
93567-15014
Linked diagrams
7456
